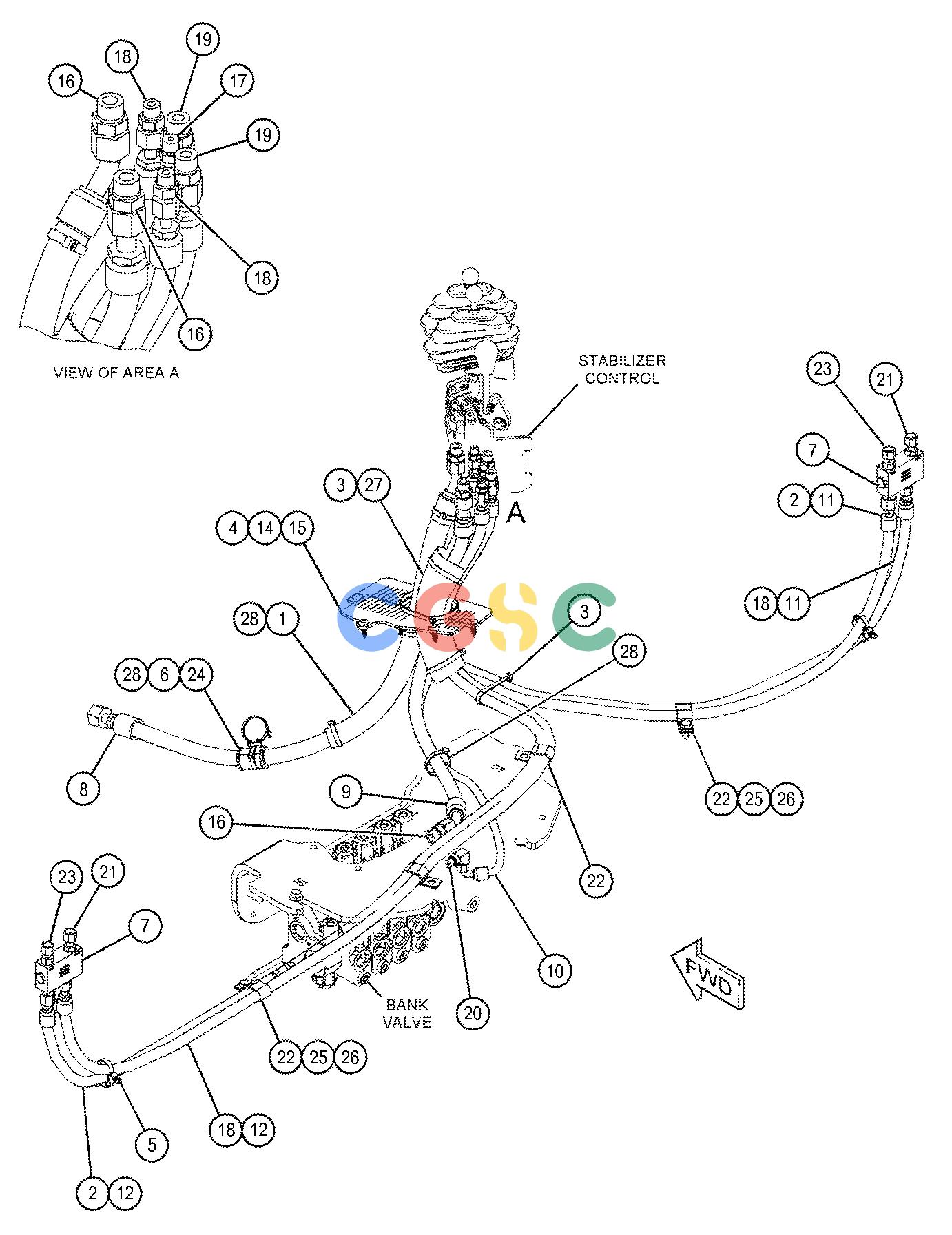

卡特零件查询（434F2） 397-1575: LINES GP-STABILIZER

广数供应链运营团队, 18 02月, 2025，浏览： 639 次

Pos.	Part No	Qty	Parts name
1.	471-0159	[1]	HOSE
2.	150-4043	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-9873	[1]	CONNECTOR
3.	7K-1181	[4]	STRAP-CABLE
4.	9R-9901	[4]	FASTENER(CLIP)
5.	205-9920	[2]	STRAP-CABLE
6.	206-2423	[1]	SADDLE-MOUNTING
7.	308-3437Y	[2]	VALVE GP-LOAD CONTROL(STABILIZER)
8.	509-2360I	[1]	HOSE AS
9.	396-6930I	[1]	HOSE AS
10.	396-6933I	[1]	HOSE AS
11.	396-6939I	[2]	HOSE AS
12.	396-6940I	[2]	HOSE AS
14.	470-8857	[1]	SEAL
15.	470-8858	[1]	SEAL
16.	148-8315	[3]	CONNECTOR AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8642	[1]	CONNECTOR
	7J-9108	[1]	SEAL-O-RING
17.	148-8325	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8641	[1]	CONNECTOR
18.	148-8336	[4]	CONNECTOR AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8636	[1]	CONNECTOR
19.	148-8340	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
20.	148-8368	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8627	[1]	ELBOW
21.	164-5549	[2]	COUPLING AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	4I-6287	[1]	COUPLING
22.	339-8936	[4]	CLIP(LOOP)
23.	340-1650	[2]	ADAPTER AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	341-0076	[1]	ADAPTER
24.	6V-7359	[1]	GROMMET(25-MM ID, 37-MM OD)
25.	7X-7729	[2]	WASHER(11X25X3-MM THK)
26.	8T-4136M	[2]	BOLT(M10X1.5X25-MM)
27.	160-2252G		SLEEVE-ABRASION(12-IN)
28.	9X-6772	[6]	STRAP-CABLE
	G		ORDER BY THE INCH
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
