卡特零件查询（434F2） 438-3001: TANK & MTG GP-HYDRAULIC
广数供应链运营团队, 18 02月, 2025，浏览：
636 次

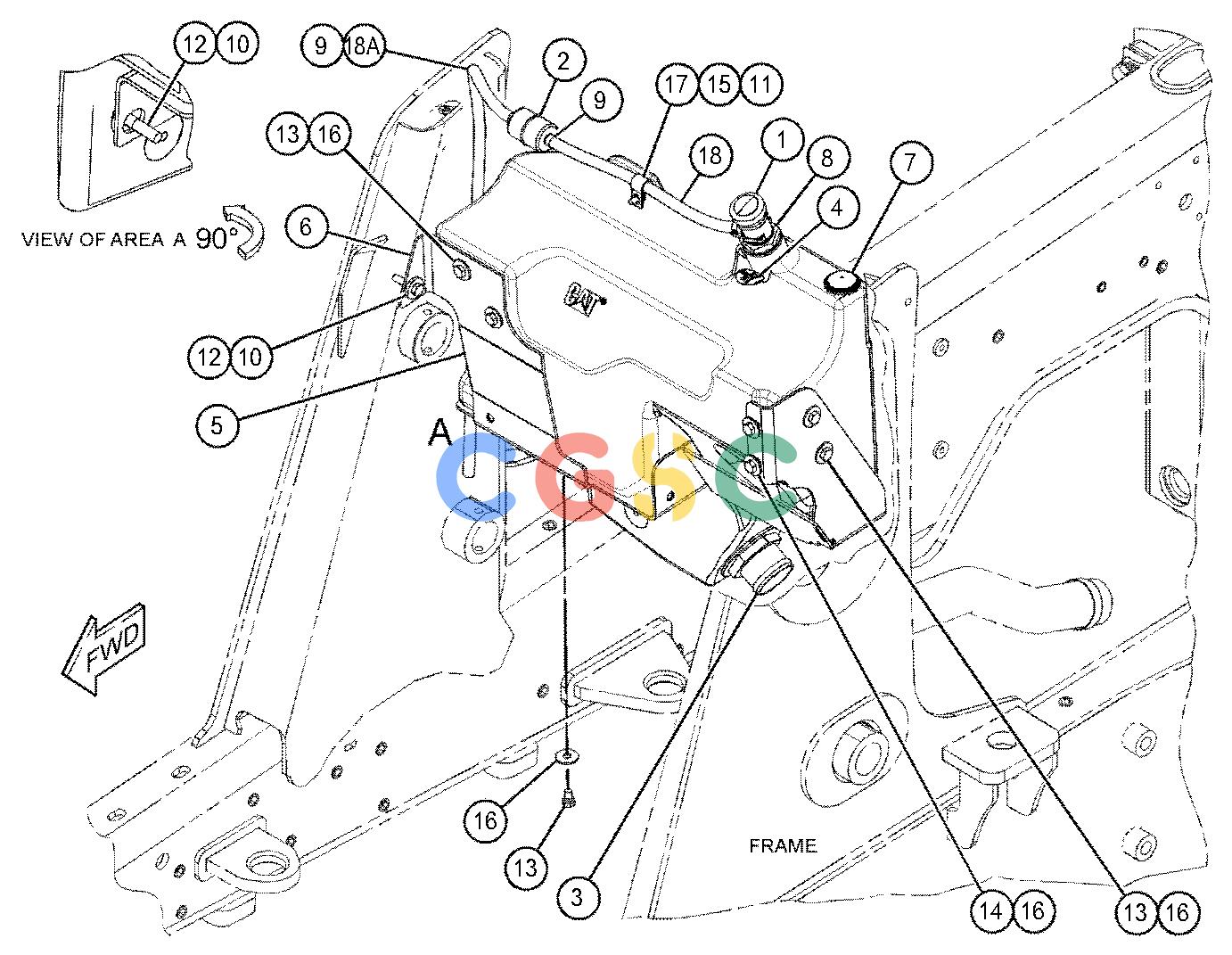

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7E-5380 | [1] | CAP-OIL FILLER(HYDRAULIC OIL) | |
| 2. | 9R-9925 | [1] | BREATHER-HYDRAULIC(INLINE)(HYDRAULIC TANK) | |
| 3. | 254-1098 | [1] | STRAINER(HYDRAULIC TANK) | |
| 4. | 334-4603 | [1] | FILM-INFORMATION(HYDO ADVANCED 10) | |
| 5. | 358-9301 | [1] | TANK AS-HYDRAULIC | |
| 6. | 371-1282 | [1] | BRACKET AS | |
| 7. | 375-2060 | [1] | GAUGE-SIGHT(HYDRAULIC TANK) | |
| 8. | 397-8252 | [1] | ADAPTER AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| 9. | 1P-4278 | [3] | CLAMP-HOSE | |
| 10. | 222-9151 | [2] | WASHER-HARD(11X32X5-MM THK) | |
| 11. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 12. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 13. | 8T-4191M | [5] | BOLT(M10X1.5X16-MM) | |
| 14. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 15. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 16. | 8T-4222 | [7] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 17. | 9M-8406 | [1] | CLIP(LOOP) | |
| 18. | 423-1982G | | HOSE(13.7-IN) | |
| 18A. | 423-1982G | | HOSE(33.4-IN) | |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
