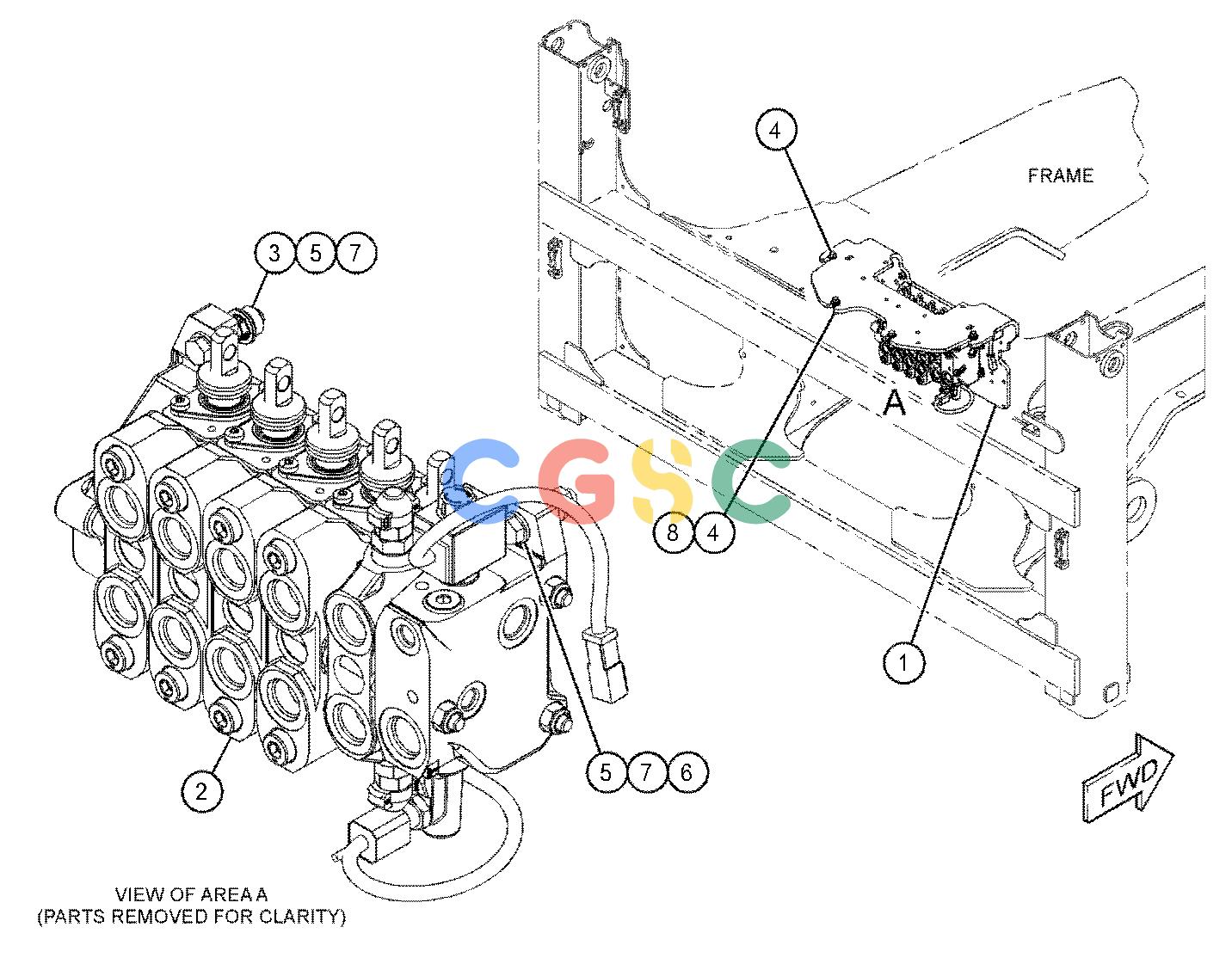

卡特零件查询（434F2） 431-1968: VALVE & MTG GP-BANK
广数供应链运营团队, 18 02月, 2025，浏览：
785 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 391-4844 | [1] | BRACKET AS | |
| | 9R-2672M | [1] | BOSS-THREADED(M10X1.5X120-MM) | |
| | 159-9541M | [2] | NUT-WELD(M10X1.5-THD) | |
| 2. | 421-5427 | [1] | VALVE GP-BANK 5(BOOM, BUCKET, STICK, SWING) | |
| 3. | 422-3634M | [2] | NUT-INSERT(M10X1.5-THD) | |
| 4. | 385-1649 | [4] | BOLT(M10X1.5X50-MM) | |
| 5. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 6. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 7. | 8T-4185M | [3] | BOLT(M10X1.5X50-MM) | |
| 8. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
