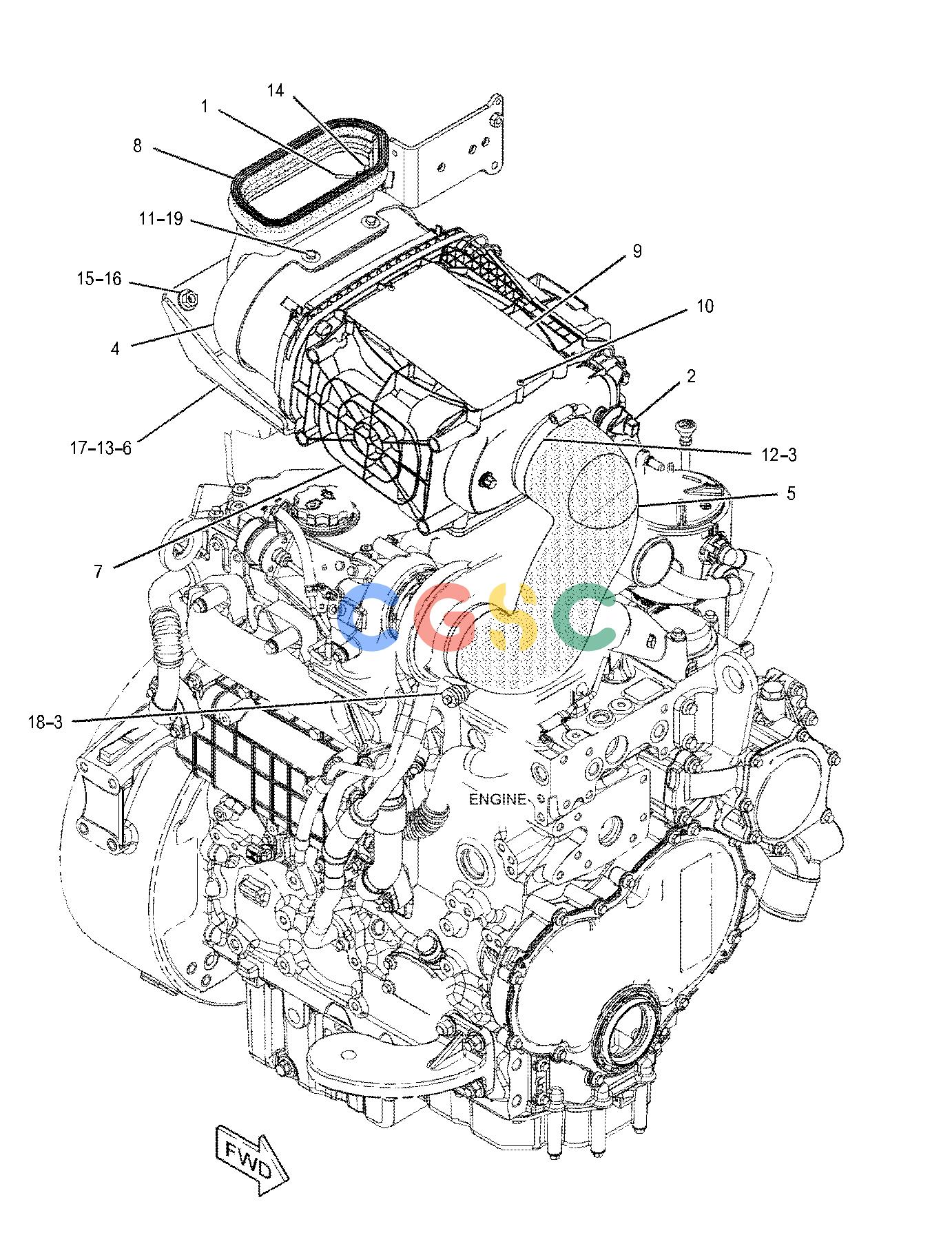

卡特零件查询（434F2） 337-9725: AIR CLEANER GP
广数供应链运营团队, 18 02月, 2025，浏览：
1002 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 256-6453 | [1] | SENSOR-TEMPERATURE(2-PIN)(AMBIENT AIR) | |
| 2. | 276-4836 | [1] | SWITCH-PRESSURE(AIR CLEANER) | |
| 3. | 323-3309 | [2] | CAP | |
| 4. | 339-3043 | [1] | DUCT-AIR | |
| 5. | 415-2894 | [1] | HOSE | |
| 6. | 341-8901 | [1] | SUPPORT AS | |
| 7. | 343-5643Y | [1] | AIR CLEANER GP | |
| 8. | 367-8073 | [1] | SEAL | |
| 9. | 463-9225 | [1] | PLATE-INSTRUCTION(LUBRICATION POINTS) | |
| 10. | 242-8009 | [2] | SCREW-PAN HEAD(6-19X0.5-IN) | |
| 11. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 12. | 5P-1717 | [1] | CLAMP-HOSE | |
| 13. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 14. | 7F-2050 | [1] | LOCKNUT(3/4-16-THD) | |
| 15. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 16. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 17. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 18. | 8T-4985 | [1] | CLAMP-HOSE | |
| 19. | 9X-6165 | [4] | WASHER(6.5X22X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
