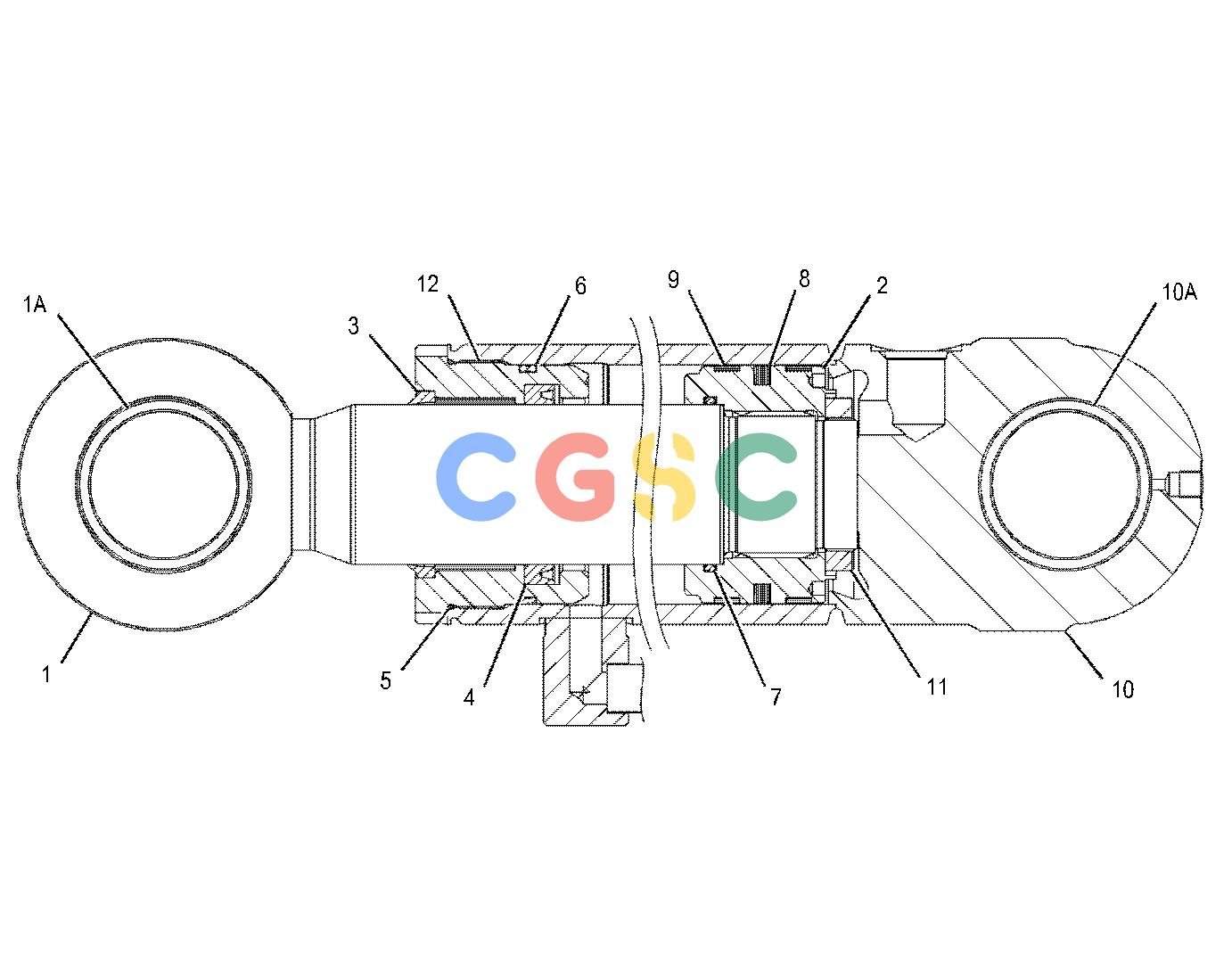

卡特零件查询（434F2） 374-8060: CYLINDER GP-LIFT
广数供应链运营团队, 18 02月, 2025，浏览：
783 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 434-8905 | [1] | ROD AS | |
| 1A. | 436-8719 | [1] | BUSHING | |
| 2. | 434-8907 | [1] | PISTON | |
| 3. | 434-8908J | [1] | RING-WIPER | |
| 4. | 434-8910J | [1] | SEAL-ROD | |
| 5. | 434-8911J | [1] | SEAL-O-RING | |
| 6. | 436-8715J | [1] | SEAL | |
| 7. | 436-8716J | [1] | SEAL-O-RING | |
| 8. | 436-8717J | [1] | SEAL-PISTON | |
| 9. | 436-8718J | [2] | RING-WEAR | |
| 10. | 436-9733 | [1] | HOUSING AS-CYLINDER | |
| 10A. | 436-8720 | [1] | BUSHING | |
| 11. | 436-8735 | [1] | NUT(M50X1.5-THD) | |
| 12. | 436-8722 | [1] | HEAD AS | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 436-8721J | [1] | KIT-SEAL | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
