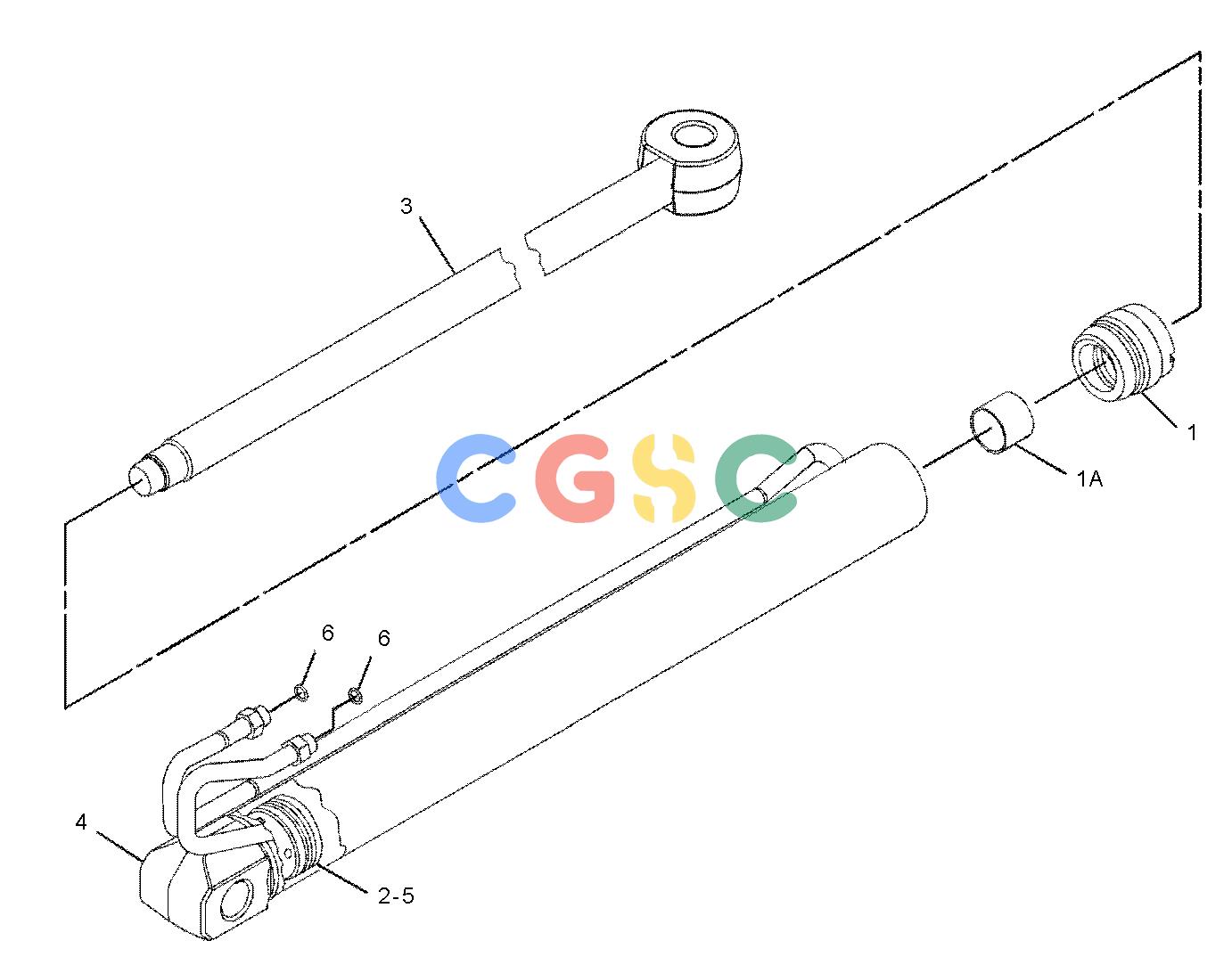

卡特零件查询（434F2） 320-5938: CYLINDER GP-STABILIZER
广数供应链运营团队, 18 02月, 2025，浏览：
308 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 324-0496 | [1] | HEAD AS | |
| 1A. | 323-2465J | [1] | BUSHING | |
| | 338-2412 | [1] | SEAL-WIPER | |
| | 338-2442J | [1] | SEAL-U-CUP | |
| | 340-9308J | [1] | SEAL-O-RING | |
| 2. | 324-0498 | [1] | PISTON AS | |
| | 161-7145J | [1] | SEAL-PISTON | |
| | 340-6272J | [2] | RING-WEAR | |
| | 340-9311J | [1] | SEAL-O-RING | |
| 3. | 324-0505 | [1] | ROD AS-HYDRAULIC CYLINDER | |
| 4. | 324-0516 | [1] | CYLINDER AS-HYDRAULIC | |
| 5. | 350-3842M | [2] | SETSCREW(M8X1.25X12.3-MM) | |
| 6. | 6V-8397 | [2] | SEAL-O-RING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 501-6692J | [1] | KIT-HYD CYLINDER SEAL(STABILIZER CYLINDER) | |
| | | | (ALSO INCLUDES SEAL-WIPER) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
