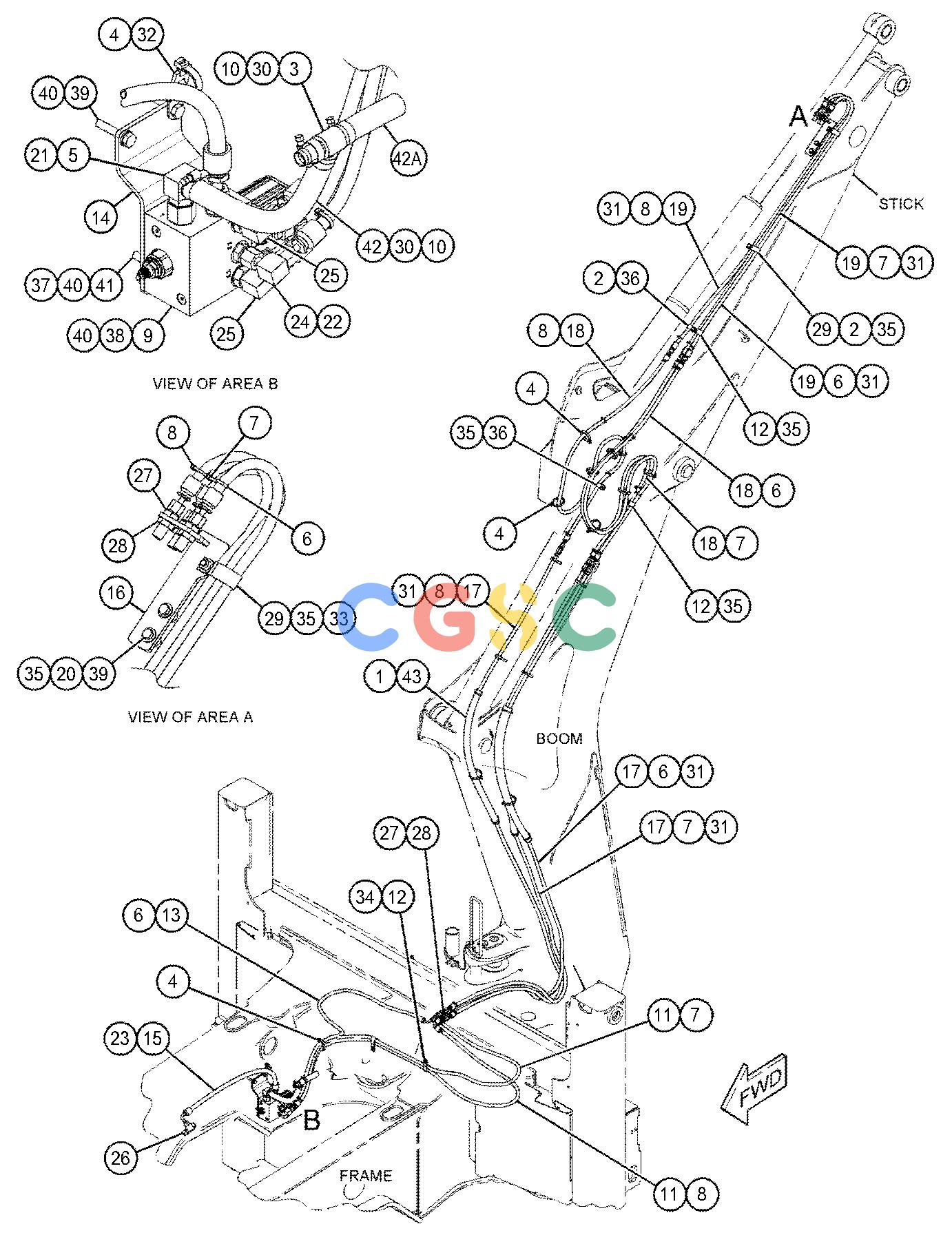

卡特零件查询（434F2） 445-0199: LINES GP-COUPLER
广数供应链运营团队, 18 02月, 2025，浏览：
282 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [6] | STRAP-CABLE | |
| 2. | 7X-2537M | [2] | BOLT(M8X1.25X35-MM) | |
| 3. | 7C-0754 | [1] | TEE | |
| 4. | 7K-1181 | [16] | STRAP-CABLE | |
| 5. | 170-0967 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 5P-4906 | [1] | ELBOW | |
| 6. | 279-4735 | [8] | STRAP-CABLE(ORANGE) | |
| 7. | 279-4737 | [8] | STRAP-CABLE(GREEN) | |
| 8. | 279-4738 | [8] | STRAP-CABLE(PURPLE) | |
| 9. | 358-2091Y | [1] | VALVE GP-SOLENOID & MANIFOLD(QUICK COUPLER) | |
| 10. | 362-2820 | [4] | CAP | |
| 11. | 393-7165I | [2] | HOSE AS | |
| 12. | 420-5299 | [4] | CLIP(LOOP) | |
| 13. | 422-6422I | [1] | HOSE AS | |
| 14. | 441-5601 | [1] | BRACKET | |
| 15. | 443-2486I | [1] | HOSE AS | |
| 16. | 450-8444 | [1] | PLATE AS | |
| 17. | 454-2829I | [3] | HOSE AS | |
| 18. | 454-2830I | [3] | HOSE AS | |
| 19. | 454-2831I | [3] | HOSE AS | |
| 20. | 091-0081 | [2] | SPACER(10.5X20X10-MM THK) | |
| 21. | 148-8307 | [1] | ADAPTER AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 5P-8874 | [1] | ADAPTER | |
| 22. | 148-8325 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8641 | [1] | CONNECTOR | |
| 23. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 24. | 148-8351 | [1] | ELBOW AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9849 | [1] | ELBOW | |
| 25. | 148-8368 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8627 | [1] | ELBOW | |
| 26. | 148-8433 | [1] | TEE AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| 27. | 150-4052 | [6] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [2] | SEAL-O-RING | |
| | 6V-8993 | [1] | UNION | |
| 28. | 2P-1279 | [6] | LOCKNUT(9/16-18-THD) | |
| 29. | 2R-1939 | [2] | CLIP | |
| 30. | 359-7325 | [4] | CLAMP-HOSE | |
| 31. | 4J-5477 | [6] | SEAL-O-RING | |
| 32. | 4P-7581 | [1] | CLIP(LADDER) | |
| 33. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 34. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| 35. | 5P-4116 | [7] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 36. | 8M-2770 | [2] | CLIP(LOOP) | |
| 37. | 8R-0721 | [1] | SPACER(11X16X35-MM THK) | |
| 38. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 39. | 8T-4197M | [4] | BOLT(M8X1.25X40-MM) | |
| 40. | 8T-4224 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| 41. | 8T-6870M | [1] | BOLT(M8X1.25X70-MM) | |
| 42. | 423-1984G | | HOSE(11.5-IN) | |
| 42A. | 423-1984G | | HOSE(3.4-IN) | |
| 43. | 160-2243G | | SLEEVE-ABRASION(31.5-IN EACH) | |
| | G | | ORDER BY THE INCH |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
