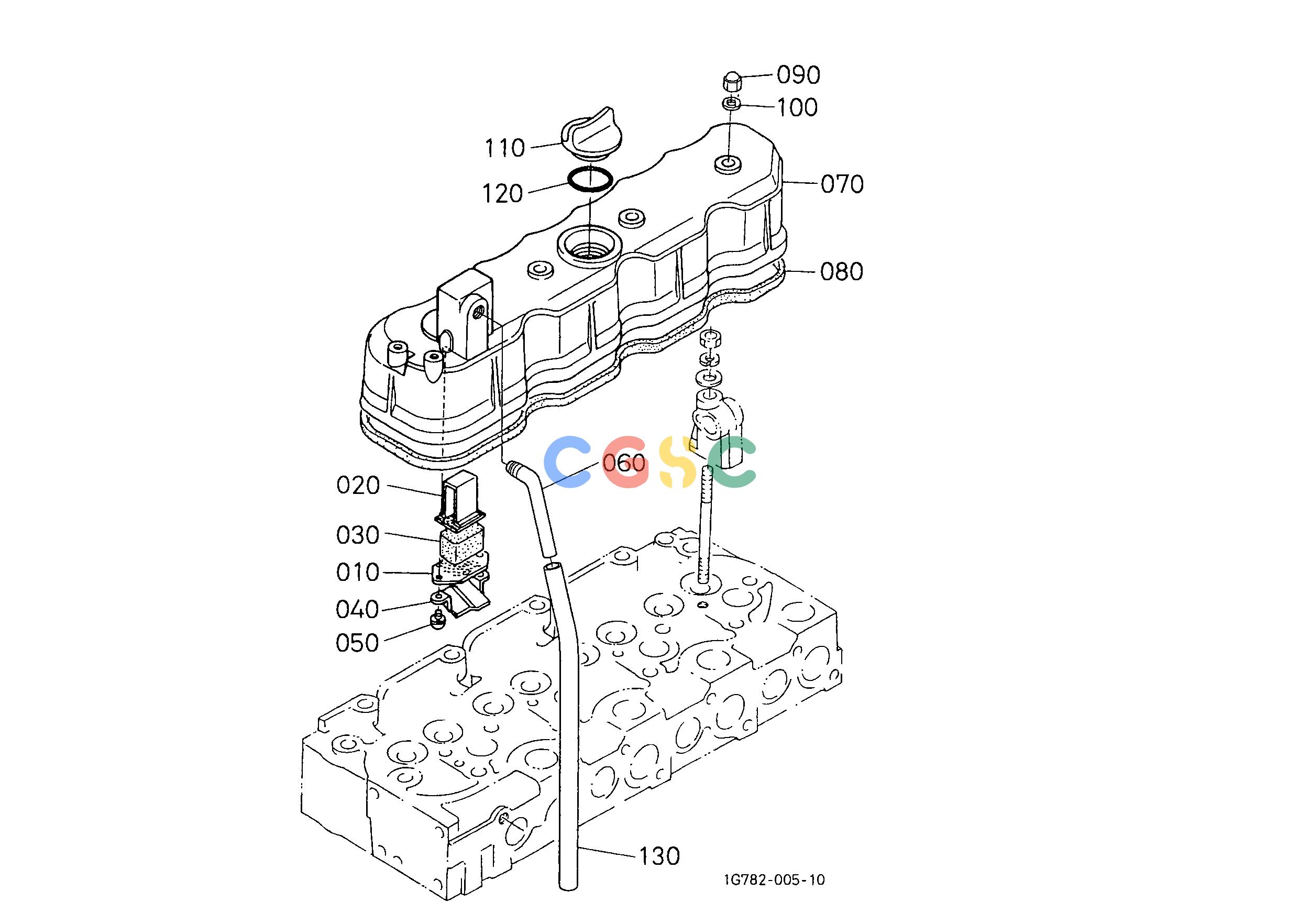

久保田零件查询000501 HEAD COVER [OLD TYPE] ## S.No.<=3Y4959 ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
924 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1552105140
|
[1] |
PLATE B/THER ELEMENT
|
0.0110(lbs); 0.005
|
| 020. |
1552105150
|
[1] |
PLATE B/THER ELEMENT
|
0.0220(lbs); 0.010
|
| 030. |
1552105670
|
[1] |
ELEMENT BREATHER
|
0.0220(lbs); 0.010
|
| 040. |
1552105370
|
[1] |
OIL SHIELD BREATHER
|
0.0110(lbs); 0.005
|
| 050. |
0303450510
|
[2] |
SCREW WITH WASHER
|
0.0066(lbs); 0.003
|
| 060. |
1736505550
|
[1] |
JOINT BREATHER
|
0.1430(lbs); 0.065
|
| 070. |
1543414510
|
[1] |
COVER CYL.HEAD
|
2.7060(lbs); 1.230
|
| 080. |
1547114520
|
[1] |
GASKET HEAD COVER
|
0.1100(lbs); 0.050
|
| 090. |
1545192330
|
[4] |
NUT
|
0.0176(lbs); 0.008
|
| 100. |
1502133660
|
[4] |
GASKET
|
0.0022(lbs); 0.001
|
| 110. |
1585233140
|
[1] |
PLUG OIL FILLER
|
0.0836(lbs); 0.038
|
| 120. |
0481150300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
0481750300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
1583705510
|
[1] |
PIPE BREATHER
|
0.1320(lbs); 0.060
|
