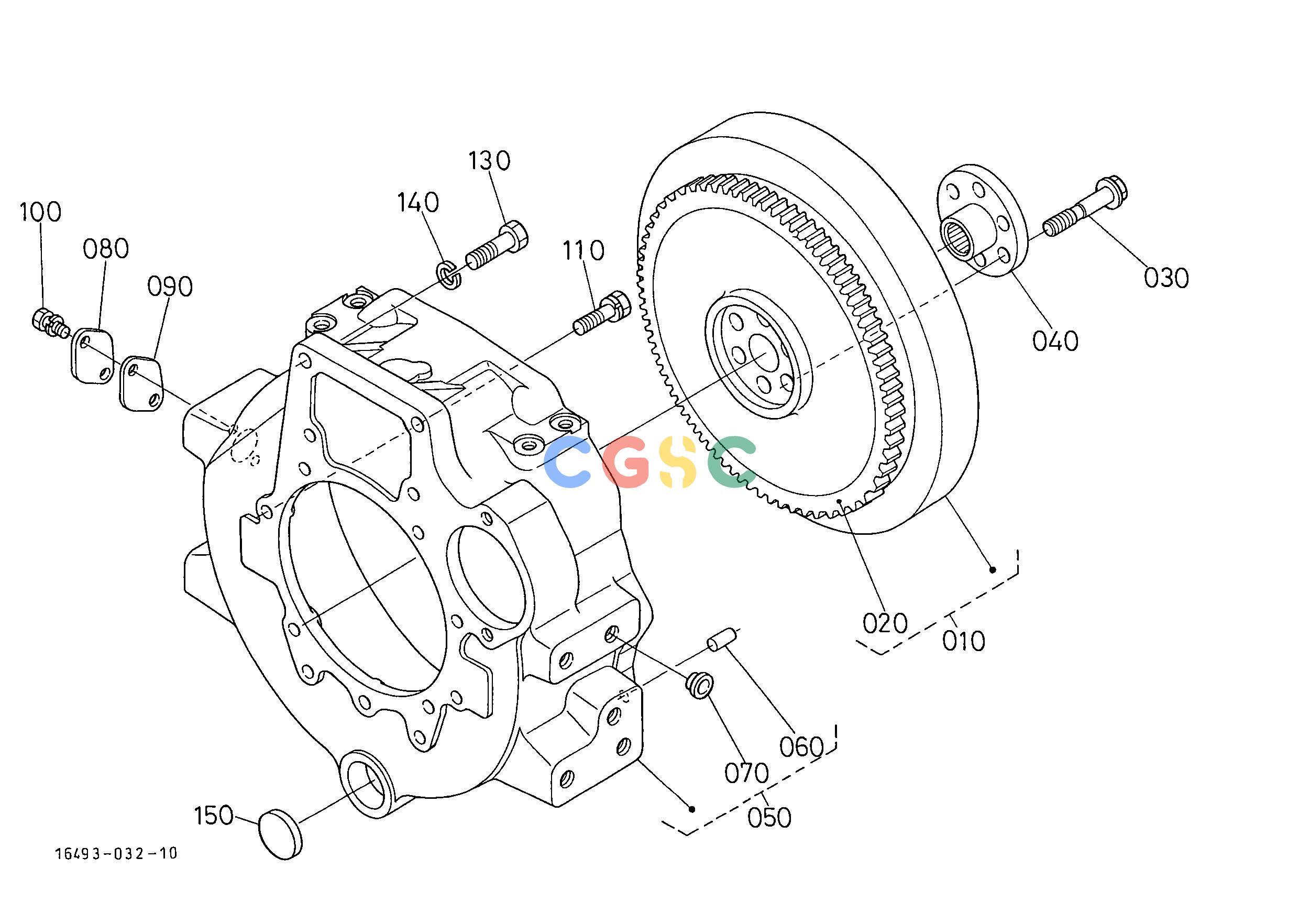

久保田零件查询010301 FLYWHEEL [L4300F] ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1649325050
|
[1] |
COMP.FLYWHEEL
|
81.4000(lbs); 37.000
|
| 020. |
1522163820
|
[1] |
GEAR RING
|
2.6400(lbs); 1.200
|
| 030. |
1739425160
|
[6] |
BOLT FLYWHEEL
|
0.1540(lbs); 0.070
|
| 040. |
3508014010
|
[1] |
HUB SPLINE
|
0.9680(lbs); 0.440
|
| 050. |
TA04020102
|
[1] |
COMP.HOUSING F-W
|
38.6100(lbs); 17.550
|
| 050. |
TA04020104
|
[1] |
COMP.HOUSING F-W
|
38.6100(lbs); 17.550
|
| 060. |
0501201018
|
[2] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 070. |
3122014290
|
[10] |
PLUG
|
0.0044(lbs); 0.002
|
| 080. |
1552104680
|
[1] |
COVER
|
0.0770(lbs); 0.035
|
| 090. |
1552104790
|
[1] |
PACKING COVER
|
0.0110(lbs); 0.005
|
| 100. |
0112360816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 110. |
1642791010
|
[11] |
BOLT
|
0.0660(lbs); 0.030
|
| 130. |
0107351240
|
[2] |
BOLT
|
0.1078(lbs); 0.049
|
| 140. |
0451260120
|
[2] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 150. |
3407012230
|
[1] |
PLUG
|
0.0440(lbs); 0.020
|
