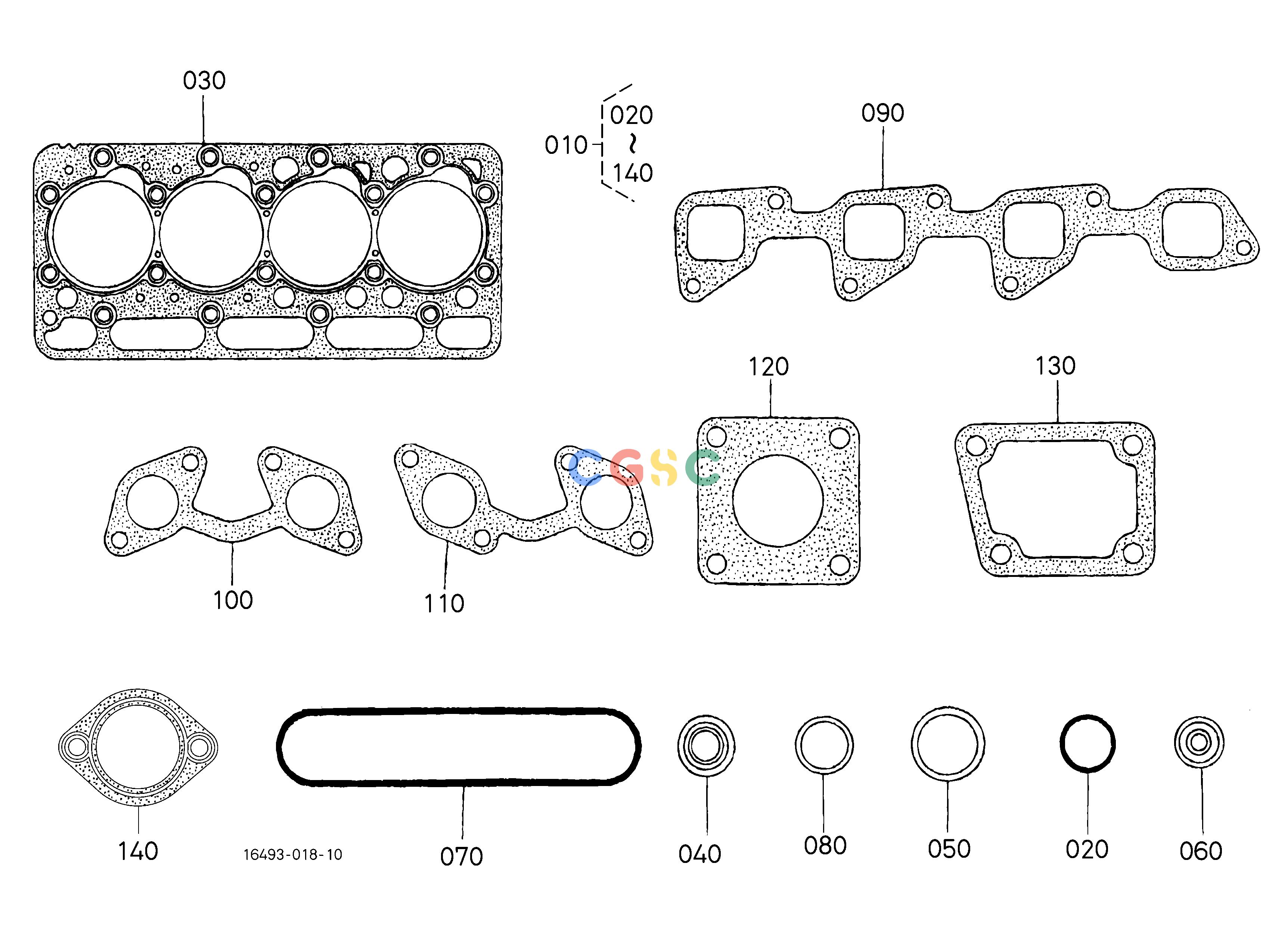

久保田零件查询090101 UPPER GASKET KIT [OLD TYPE] ## S.No.<=3Y4959 ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
266 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
0791627747
|
[1] |
KIT GASKET UPPER
|
0.8360(lbs); 0.380
|
| 020. |
1522133700
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
1907703310
|
[1] |
GASKET CYLINDER HEAD
|
0.2860(lbs); 0.130
|
| 040. |
1522113150
|
[8] |
SEAL VALVE STEM
|
0.0022(lbs); 0.001
|
| 040. |
1522113153
|
[8] |
SEAL VALVE STEM
|
0.0044(lbs); 0.002
|
| 050. |
1584153622
|
[4] |
GASKET
|
0.0044(lbs); 0.002
|
| 060. |
1907753650
|
[4] |
SEAL HEAT
|
0.0044(lbs); 0.002
|
| 070. |
1547114520
|
[1] |
GASKET HEAD COVER
|
0.1100(lbs); 0.050
|
| 080. |
1502133660
|
[4] |
GASKET
|
0.0022(lbs); 0.001
|
| 090. |
1642311820
|
[1] |
GASKET IN-MANIFOLD
|
0.0396(lbs); 0.018
|
| 090. |
1A09111822
|
[1] |
GASKET IN-MANIFOLD
|
0.0440(lbs); 0.020
|
| 100. |
1A09112350
|
[1] |
GASKET EX-MANIFOLD
|
0.0440(lbs); 0.020
|
| 110. |
1A09112360
|
[1] |
GASKET EX-MANIFOLD
|
0.0440(lbs); 0.020
|
| 120. |
T007016420
|
[1] |
GASKET MUFFLER
|
0.0352(lbs); 0.016
|
| 130. |
1A02172920
|
[1] |
GASKET WATER FLANGE
|
0.0044(lbs); 0.002
|
| 140. |
1A02173270
|
[1] |
GASKET THERMOSTAT
|
0.0022(lbs); 0.001
|
| 140. |
1622173270
|
[1] |
GASKET THERMOSTAT
|
0.0022(lbs); 0.001
|
