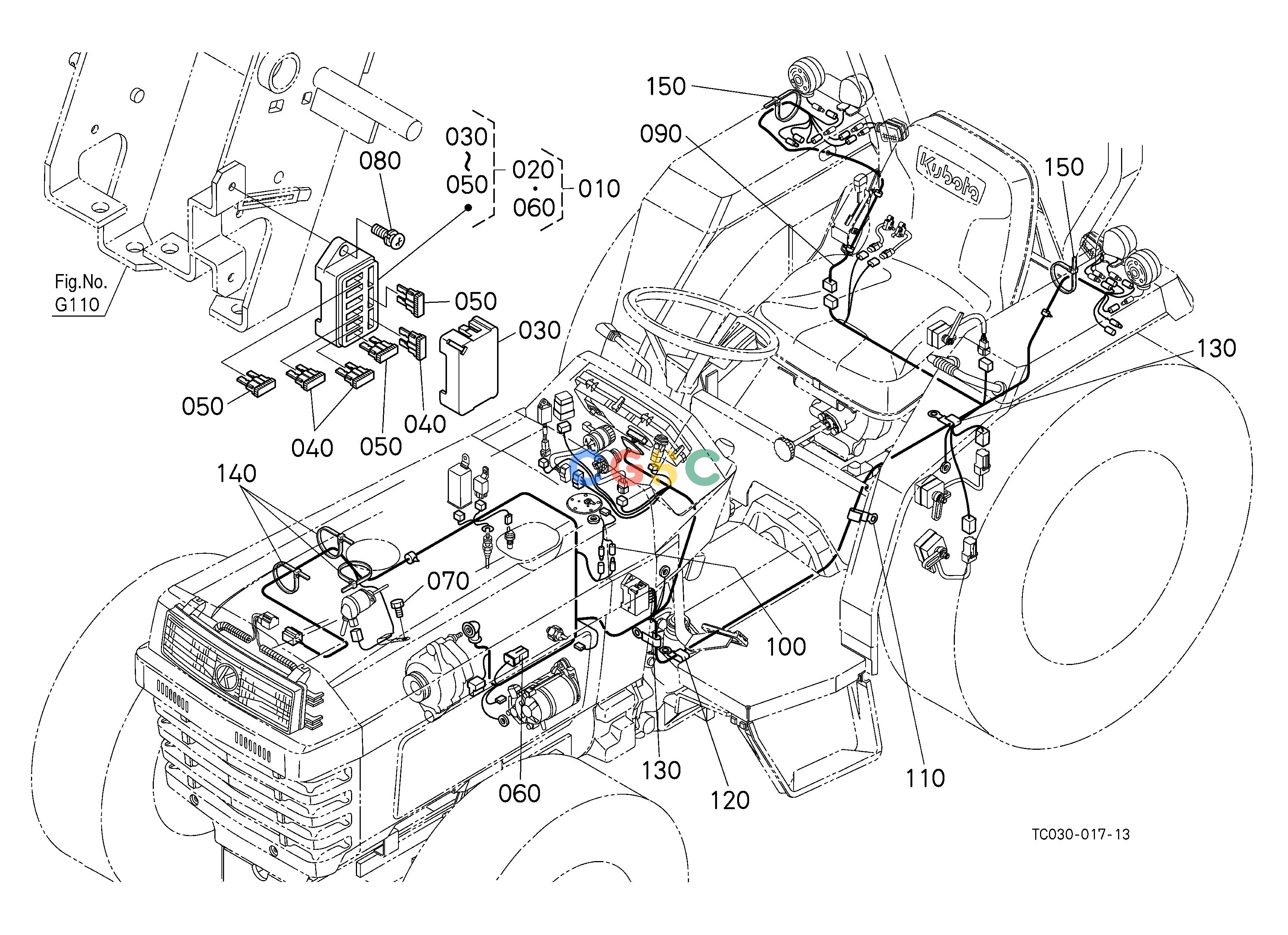

久保田零件查询B50102 ELECTRICAL WIRING [NEW TYPE] ## S.No.>=54198 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
1000 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC03030330
|
[1] |
WIRE HARNESS MAIN
|
3.0140(lbs); 1.370
|
| 020. |
TC05030410
|
[1] |
ASSY BOX FUSE
|
0.1540(lbs); 0.070
|
| 030. |
TC05030420
|
[1] |
CASE FUSE BOX
|
0.0154(lbs); 0.007
|
| 030. |
HTC0030420
|
[1] |
CASE FUSE BOX
|
0.0154(lbs); 0.007
|
| 040. |
3673075550
|
[3] |
FUSE
|
0.0066(lbs); 0.003
|
| 050. |
3582075560
|
[3] |
FUSE
|
0.0044(lbs); 0.002
|
| 060. |
3467034530
|
[1] |
FUSE
|
0.0066(lbs); 0.003
|
| 070. |
0115350812
|
[1] |
BOLT
|
0.0176(lbs); 0.008
|
| 080. |
3139131140
|
[2] |
SCREW
|
0.0220(lbs); 0.010
|
| 090. |
TC03030340
|
[1] |
WIRE HARNESS FEN.RH
|
0.1540(lbs); 0.070
|
| 100. |
3233034390
|
[1] |
WIRE HARNESS F.TANK
|
0.0308(lbs); 0.014
|
| 110. |
1382467580
|
[1] |
CLAMP CORD
|
0.0132(lbs); 0.006
|
| 120. |
1381667580
|
[1] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 130. |
3534029380
|
[2] |
CLAMP CORD
|
0.0220(lbs); 0.010
|
| 140. |
5531141260
|
[5] |
BAND CORD
|
0.0154(lbs); 0.007
|
| 150. |
5358164150
|
[2] |
BAND CORD
|
0.0044(lbs); 0.002
|
