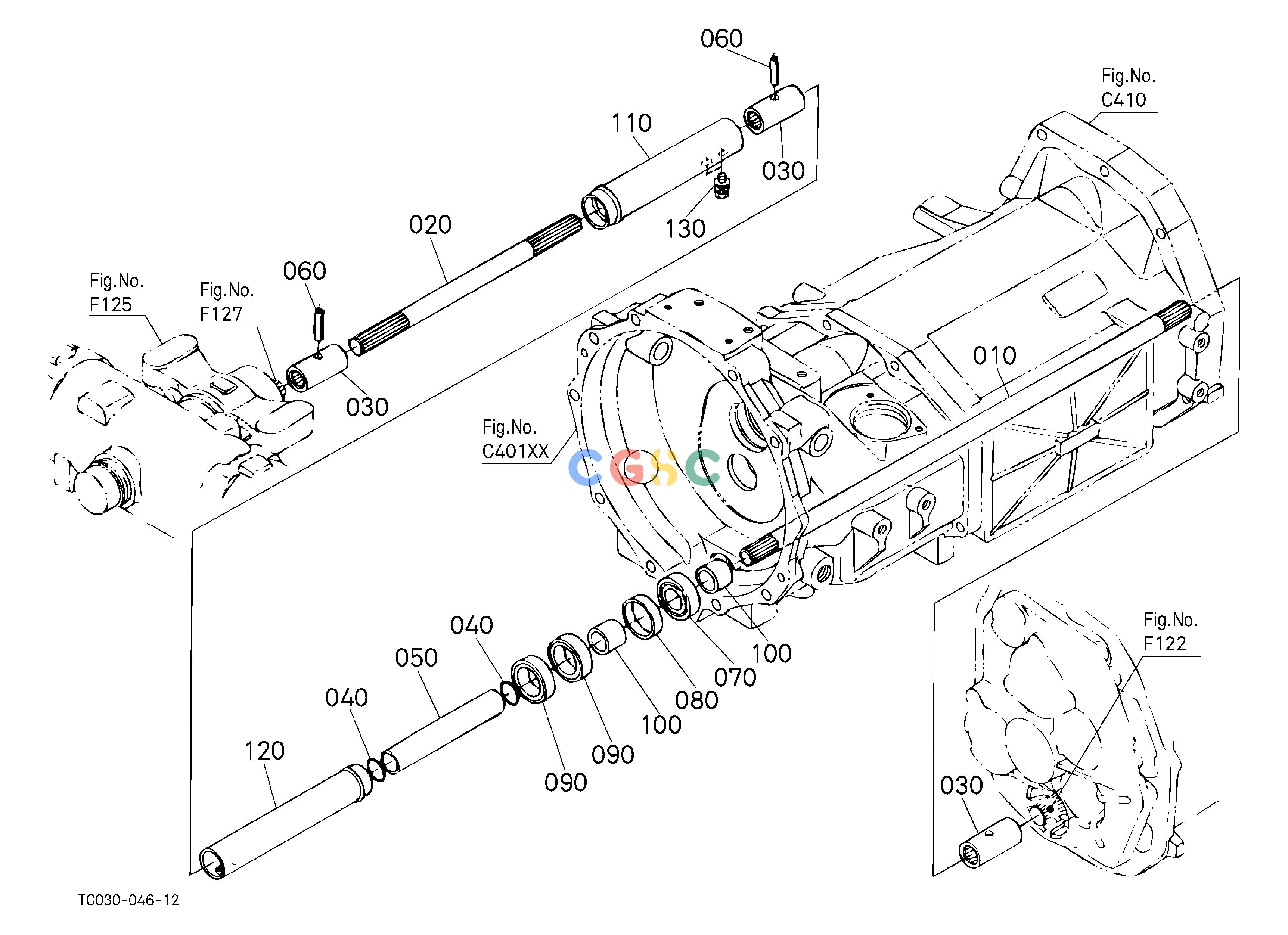

久保田零件查询F12000 PROPELLER SHAFT ## NOTE:ORDER BY REF.NO.090 and 100 NEW PART. FRONT AXLE/CHASSISEPC Kubota online_久保田Kubota_工程机械

久保田零件查询F12000 PROPELLER SHAFT ## NOTE:ORDER BY REF.NO.090 and 100 NEW PART. FRONT AXLE/CHASSISEPC Kubota online

广数供应链运营团队, 18 02月, 2025，浏览： 614 次

Pos.	Part No	Qty	Parts name	Comments
010.	TA04014640	[1]	SHAFT PROPELLER	4.1800(lbs); 1.900
020.	TA04014633	[1]	SHAFT PROPELLER	1.7380(lbs); 0.790
030.	T007014710	[3]	COUPLING	0.3520(lbs); 0.160
030.	H313044520	[3]	COUPLING	0.3520(lbs); 0.160
040.	TA04082180	[2]	O RING	0.0022(lbs); 0.001
050.	TA04014720	[1]	SPACER	0.4620(lbs); 0.210
060.	0541100430	[2]	PIN SPRING	0.0044(lbs); 0.002
070.	0810106904	[1]	BEARING BALL	0.0440(lbs); 0.020
080.	3407014650	[1]	COLLAR	0.0220(lbs); 0.010
090.	0950025388	[2]	SEAL OIL	SEE NOTE; <=54957 0.0220(lbs); 0.010
090.	E313123550	[2]	SEAL OIL	; =>54958 0.0198(lbs); 0.009
100.	5358253520	[2]	SLEEVE	SEE NOTE; <=54957 0.0330(lbs); 0.015
100.	T142014680	[2]	SLEEVE	; =>54958 0.0330(lbs); 0.015
110.	TA04014574	[1]	COVER SHAFT FRONT	0.7260(lbs); 0.330
120.	TA04014580	[1]	COVER SHAFT REAR	0.5500(lbs); 0.250
130.	0105350510	[2]	BOLT	; <=51408 0.0044(lbs); 0.002
130.	TC05014590	[2]	BOLT WITH WASHER	; =>51409 0.0066(lbs); 0.003
