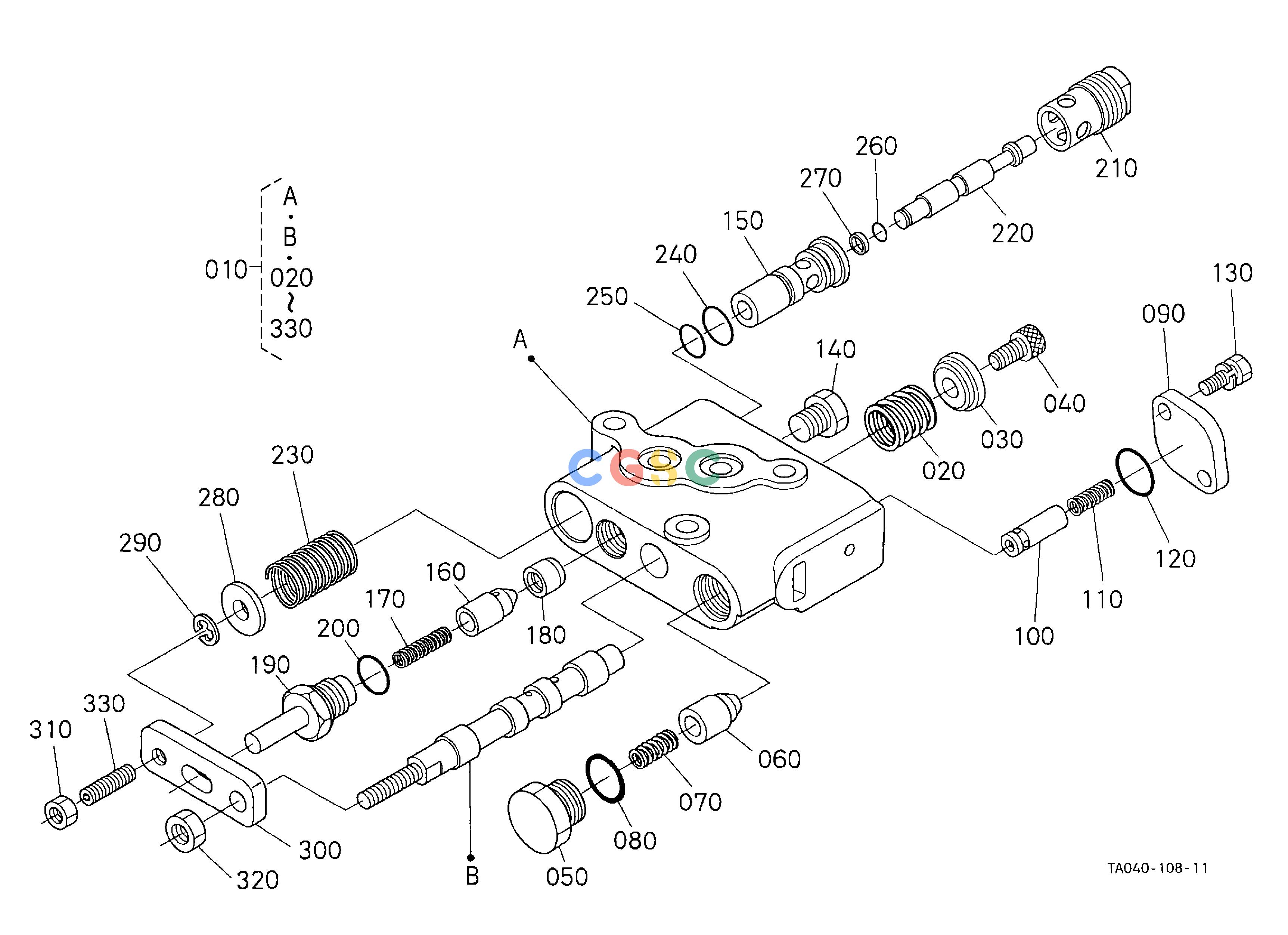

久保田零件查询H41000 CONTROL VALVE [COMPONENT PARTS] [OLD TYPE] ## S.No.<=55142 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
528 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135139604
|
[1] |
ASSY VALVE CONTROL
|
4.0700(lbs); 1.850
|
| 020. |
3135139630
|
[1] |
SPRING SPOOL
|
0.0440(lbs); 0.020
|
| 030. |
3135139640
|
[1] |
HOLDER SPRING
|
0.0440(lbs); 0.020
|
| 040. |
0131110814
|
[1] |
BOLT HEX-SOC-HD
|
0.0264(lbs); 0.012
|
| 050. |
3135139650
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 060. |
3135139150
|
[1] |
POPPET
|
0.0440(lbs); 0.020
|
| 070. |
6753138470
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 080. |
0481100140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0481700140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
3135139660
|
[1] |
PLATE
|
0.1100(lbs); 0.050
|
| 100. |
3135139670
|
[1] |
POPPET
|
0.0220(lbs); 0.010
|
| 110. |
3135139680
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 120. |
0481000160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
0481700160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
0102350616
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 140. |
0633135010
|
[1] |
PLUG
|
0.0264(lbs); 0.012
|
| 150. |
T043037600
|
[1] |
SLEEVE
|
0.1100(lbs); 0.050
|
| 160. |
T043037580
|
[1] |
POPPET
|
0.0220(lbs); 0.010
|
| 170. |
3139139190
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 180. |
T043037530
|
[1] |
SEAT CHECK VALVE
|
0.0110(lbs); 0.005
|
| 190. |
3135137670
|
[1] |
PLUG
|
0.0836(lbs); 0.038
|
| 200. |
0481100120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 200. |
0481700120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 210. |
3135137620
|
[1] |
PLUG
|
0.0990(lbs); 0.045
|
| 220. |
T043037610
|
[1] |
POPPET
|
0.0396(lbs); 0.018
|
| 230. |
T043037620
|
[1] |
SPRING
|
0.0198(lbs); 0.009
|
| 240. |
0481105120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 240. |
0481705120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 250. |
0481105110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 250. |
0481705110
|
[1] |
O RING
|
0.0110(lbs); 0.005
|
| 260. |
0481100050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 260. |
0481600050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 270. |
3135139290
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 280. |
T043037640
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 290. |
0461350060
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 300. |
3135139752
|
[1] |
PLATE
|
0.1100(lbs); 0.050
|
| 310. |
0201450060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 320. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 330. |
0365050622
|
[1] |
SCREW SET
|
0.0088(lbs); 0.004
|
