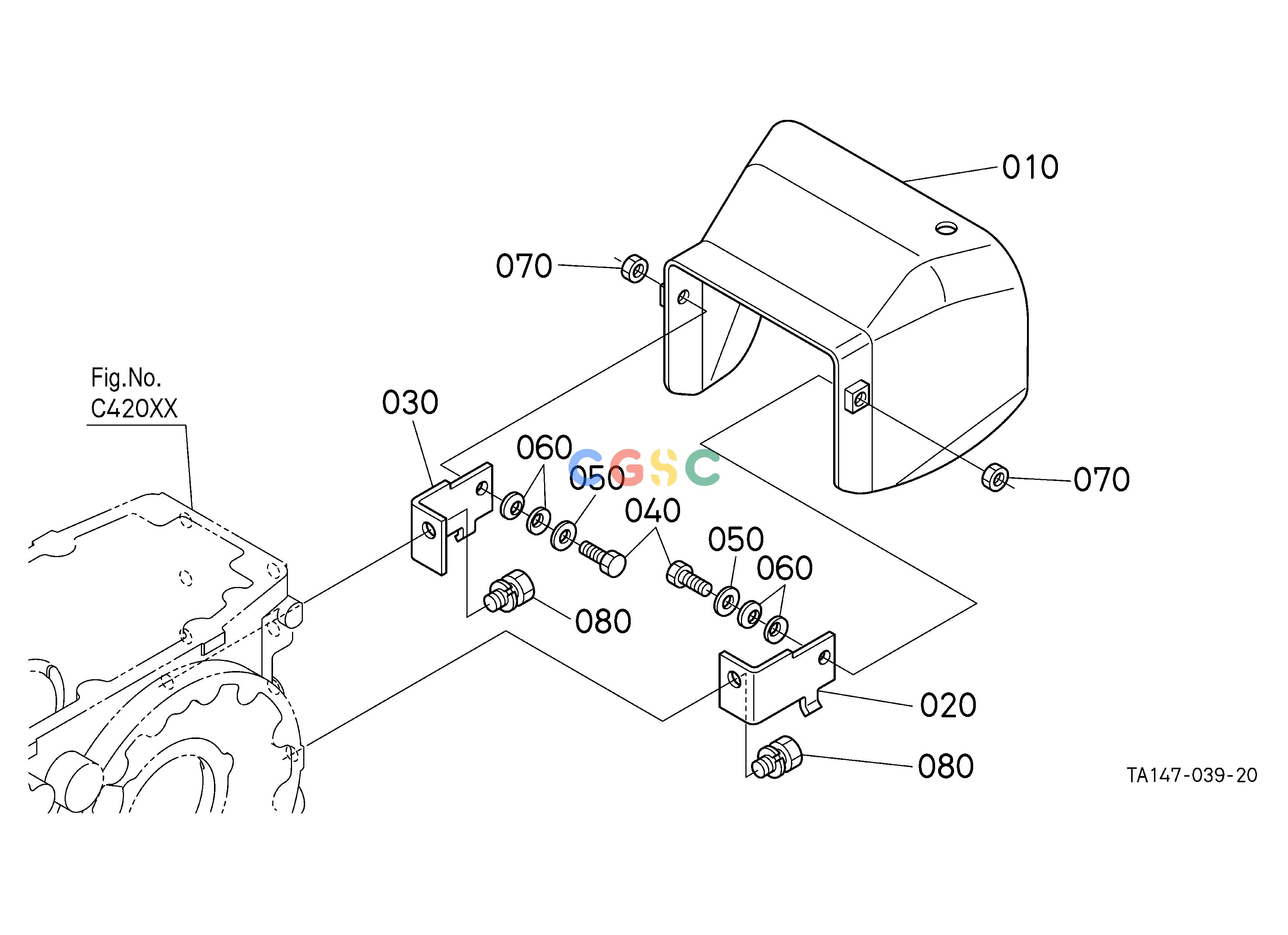

久保田零件查询K12502 PTO PROTECTOR [AU] 3-POINT LINKAGE/DRAWBAR/HITCHEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
624 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04023742
|
[1] |
PROTECTOR PTO
|
4.6200(lbs); 2.100
|
| 020. |
TA04023752
|
[1] |
STAY
|
0.4180(lbs); 0.190
|
| 030. |
TA04023762
|
[1] |
STAY
|
0.4180(lbs); 0.190
|
| 040. |
0117351025
|
[2] |
BOLT
|
0.0462(lbs); 0.021
|
| 050. |
0401360100
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 060. |
6215142412
|
[4] |
SPRING PLATE
|
0.0044(lbs); 0.002
|
| 070. |
0211650100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 080. |
0113351225
|
[2] |
BOLT
|
0.0770(lbs); 0.035
|
