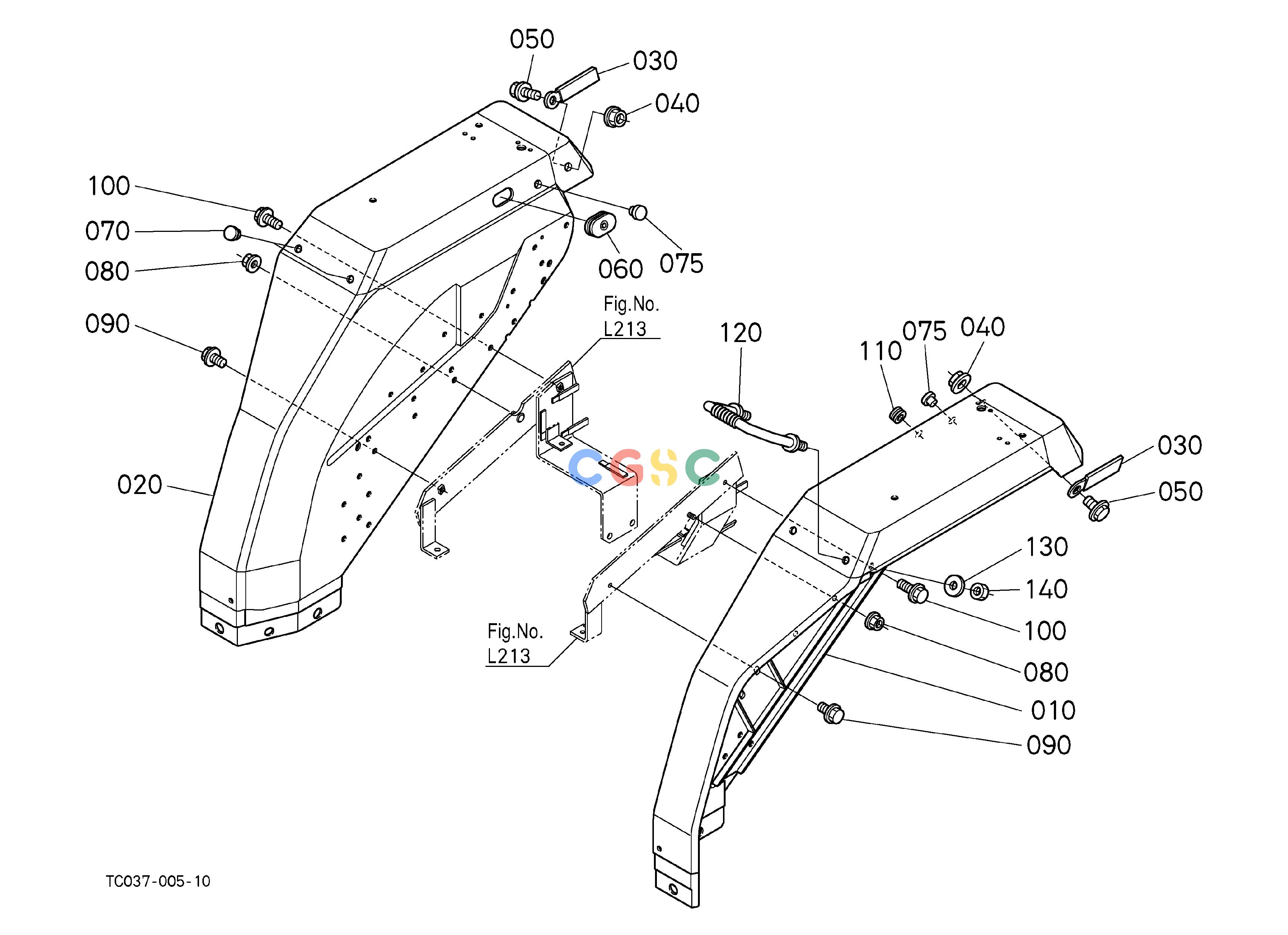

久保田零件查询L21002 FENDER [AU] HOOD/BONNETEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
182 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC03029012
|
[1] |
COMP.FENDER LH
|
21.1200(lbs); 9.600
|
| 020. |
TC03029040
|
[1] |
COMP.FENDER RH
|
20.9000(lbs); 9.500
|
| 030. |
3715034460
|
[2] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 040. |
0277160100
|
[2] |
NUT FLANGE
|
0.0220(lbs); 0.010
|
| 050. |
0177451016
|
[2] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
| 060. |
3135129490
|
[1] |
GROMMET
|
0.0066(lbs); 0.003
|
| 070. |
3081029170
|
[2] |
PLUG
|
0.0066(lbs); 0.003
|
| 075. |
3043082670
|
[2] |
PLUG
|
0.0022(lbs); 0.001
|
| 080. |
0275150080
|
[2] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
| 090. |
0175450820
|
[2] |
BOLT FLANGE
|
0.0330(lbs); 0.015
|
| 100. |
0175450825
|
[2] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 110. |
3215029180
|
[1] |
CAP RUBBER
|
0.0044(lbs); 0.002
|
| 120. |
3467029440
|
[1] |
HANDRAIL
|
0.2200(lbs); 0.100
|
| 130. |
0401360140
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 140. |
0217450140
|
[2] |
NUT
|
0.0308(lbs); 0.014
|
