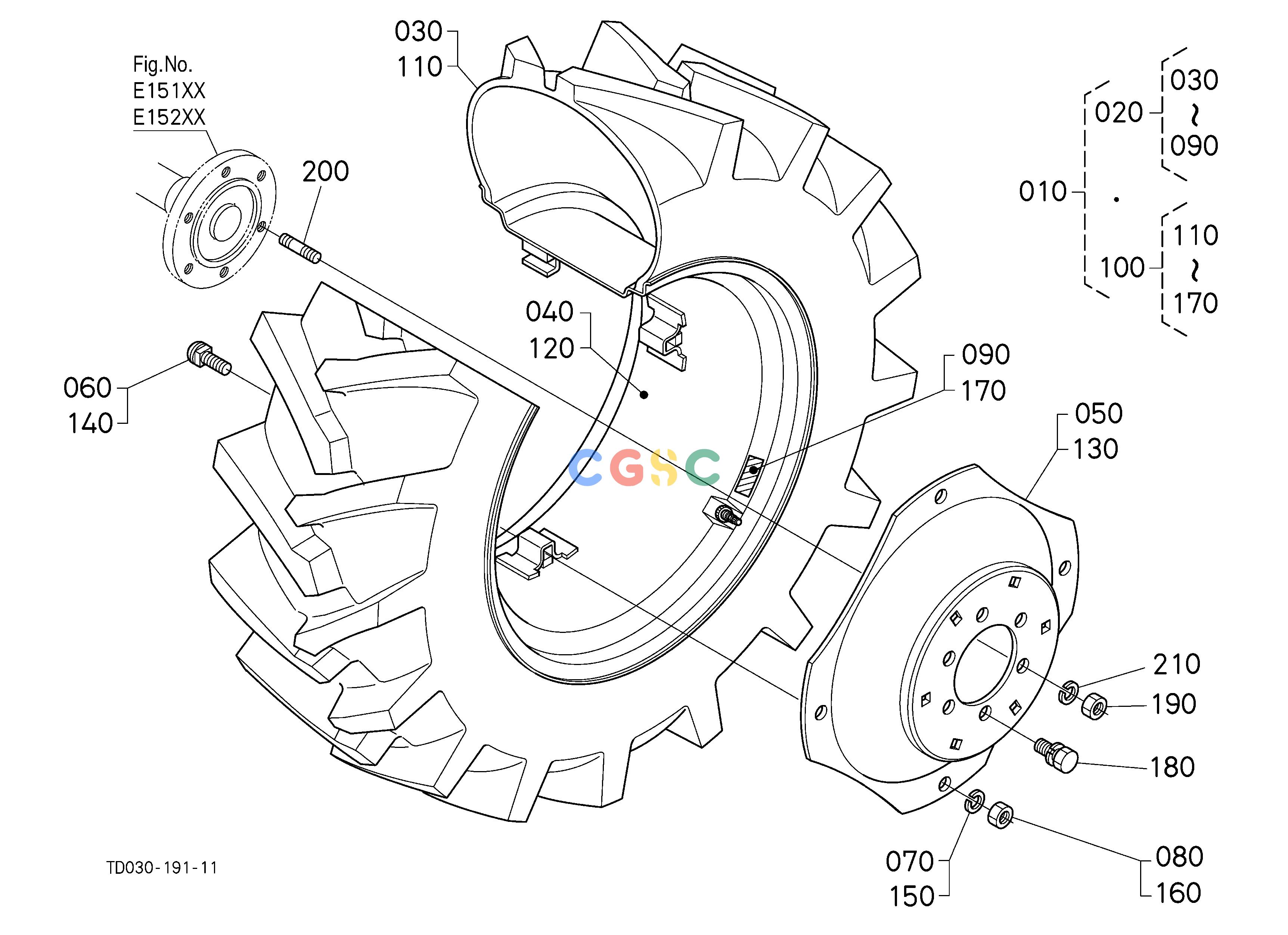

久保田零件查询P11003 REAR WHEEL (17.5-24) FRONT/REAR TIREEPC Kubota online

广数供应链运营团队, 18 02月, 2025，浏览： 226 次

Pos.	Part No	Qty	Parts name	Comments
010.	TA04027700	[1]	ASSY REAR WHEEL	ALR8829 0.0000(lbs); 0.000
020.	TA04027710	[1]	ASSY REAR WHEEL RH	ALR8829R 0.0000(lbs); 0.000
030.	TA04027730	[1]	TIRE	ALR8829R 0.0000(lbs); 0.000
040.	3506027840	[1]	RIM	ALR8829R 0.0000(lbs); 0.000
050.	3508027660	[1]	DISK	ALR8829R 37.1800(lbs); 16.900
060.	7559907760	[4]	HEXAGONE BOLT	ALR8829R 0.0000(lbs); 0.000
070.	7007002009	[4]	WASHER	ALR8829R 0.0000(lbs); 0.000
080.	7559931010	[4]	HEX.NUT	ALR8829R 0.0000(lbs); 0.000
090.	9999999999	[1]	LABEL TIRE RH	ALR8829R 0.0000(lbs); 0.000
100.	TA04027720	[1]	ASSY REAR WHEEL LH	ALR8829L 0.0000(lbs); 0.000
110.	TA04027730	[1]	TIRE	ALR8829L 0.0000(lbs); 0.000
120.	3506027840	[1]	RIM	ALR8829L 0.0000(lbs); 0.000
130.	3508027660	[1]	DISK	ALR8829L 37.1800(lbs); 16.900
140.	7559907760	[4]	HEXAGONE BOLT	ALR8829L 0.0000(lbs); 0.000
150.	7007002009	[4]	WASHER	ALR8829L 0.0000(lbs); 0.000
160.	7559931010	[4]	HEX.NUT	ALR8829L 0.0000(lbs); 0.000
170.	9999999999	[1]	LABEL TIRE LH	ALR8829L 0.0000(lbs); 0.000
180.	0103351630	[8]	BOLT	0.1980(lbs); 0.090
190.	0207650160	[4]	NUT	0.0660(lbs); 0.030
200.	0151751635	[4]	STUD	0.1716(lbs); 0.078
210.	0451260160	[4]	WASHER SPRING	0.0220(lbs); 0.010
