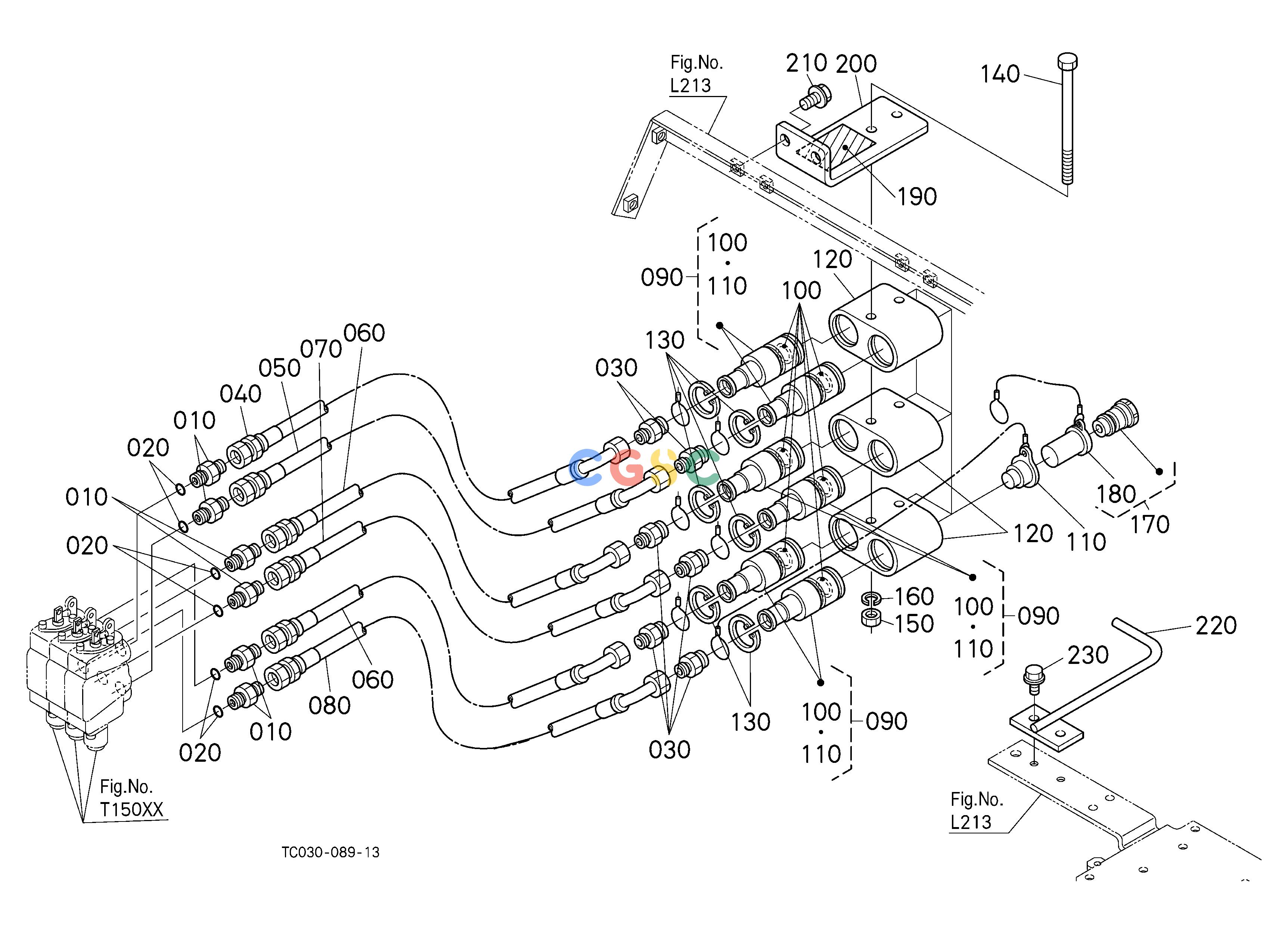

久保田零件查询T15503 AUXILIARY CONTROL VALVE COUPLER (3RD) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
924 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
7072661130
|
[6] |
ADAPTER
|
0.1210(lbs); 0.055
|
| 020. |
0481100140
|
[6] |
O RING
|
0.0022(lbs); 0.001
|
| 020. |
0481600140
|
[6] |
O RING
|
0.0044(lbs); 0.002
|
| 030. |
9906393410
|
[6] |
ADAPTER
|
0.1540(lbs); 0.070
|
| 040. |
TA04096410
|
[1] |
HOSE AUX.CONT.VALVE
|
0.6776(lbs); 0.308
|
| 050. |
TA04096420
|
[1] |
HOSE AUX.CONT.VALVE
|
0.6908(lbs); 0.314
|
| 060. |
TA04096430
|
[2] |
HOSE AUX.CONT.VALVE
|
0.6490(lbs); 0.295
|
| 070. |
TA04096440
|
[1] |
HOSE AUX.CONT.VALVE
|
0.6644(lbs); 0.302
|
| 080. |
TA04096450
|
[1] |
HOSE AUX.CONT.VALVE
|
0.6600(lbs); 0.300
|
| 090. |
3586182032
|
[6] |
ASSY COUPLER FEMALE
|
0.7040(lbs); 0.320
|
| 100. |
3586194510
|
[6] |
O RING
|
0.0044(lbs); 0.002
|
| 110. |
3586194520
|
[6] |
PLUG COUPLER
|
0.0110(lbs); 0.005
|
| 120. |
3589382610
|
[3] |
SUPPORT COUPLER
|
1.6060(lbs); 0.730
|
| 130. |
0461100380
|
[6] |
CIR CLIP INTERNAL
|
0.0088(lbs); 0.004
|
| 140. |
3534099540
|
[2] |
BOLT
|
0.1320(lbs); 0.060
|
| 150. |
0215650080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 160. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 170. |
3586182190
|
[6] |
ASSY COUPLER MALE
|
0.1892(lbs); 0.086
|
| 180. |
3586194530
|
[6] |
CAP
|
0.0154(lbs); 0.007
|
| 190. |
TA04049640
|
[1] |
MARK COUPLER
|
0.0022(lbs); 0.001
|
| 200. |
TC03096480
|
[1] |
STAY COUPLER
|
1.2100(lbs); 0.550
|
| 210. |
0177461020
|
[2] |
BOLT FLANGE
|
0.0484(lbs); 0.022
|
| 220. |
TC03096490
|
[1] |
SUPPORT HOSE CLAMP
|
0.3740(lbs); 0.170
|
| 230. |
0175450820
|
[2] |
BOLT FLANGE
|
0.0330(lbs); 0.015
|
| 230. |
0175450816
|
[2] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
