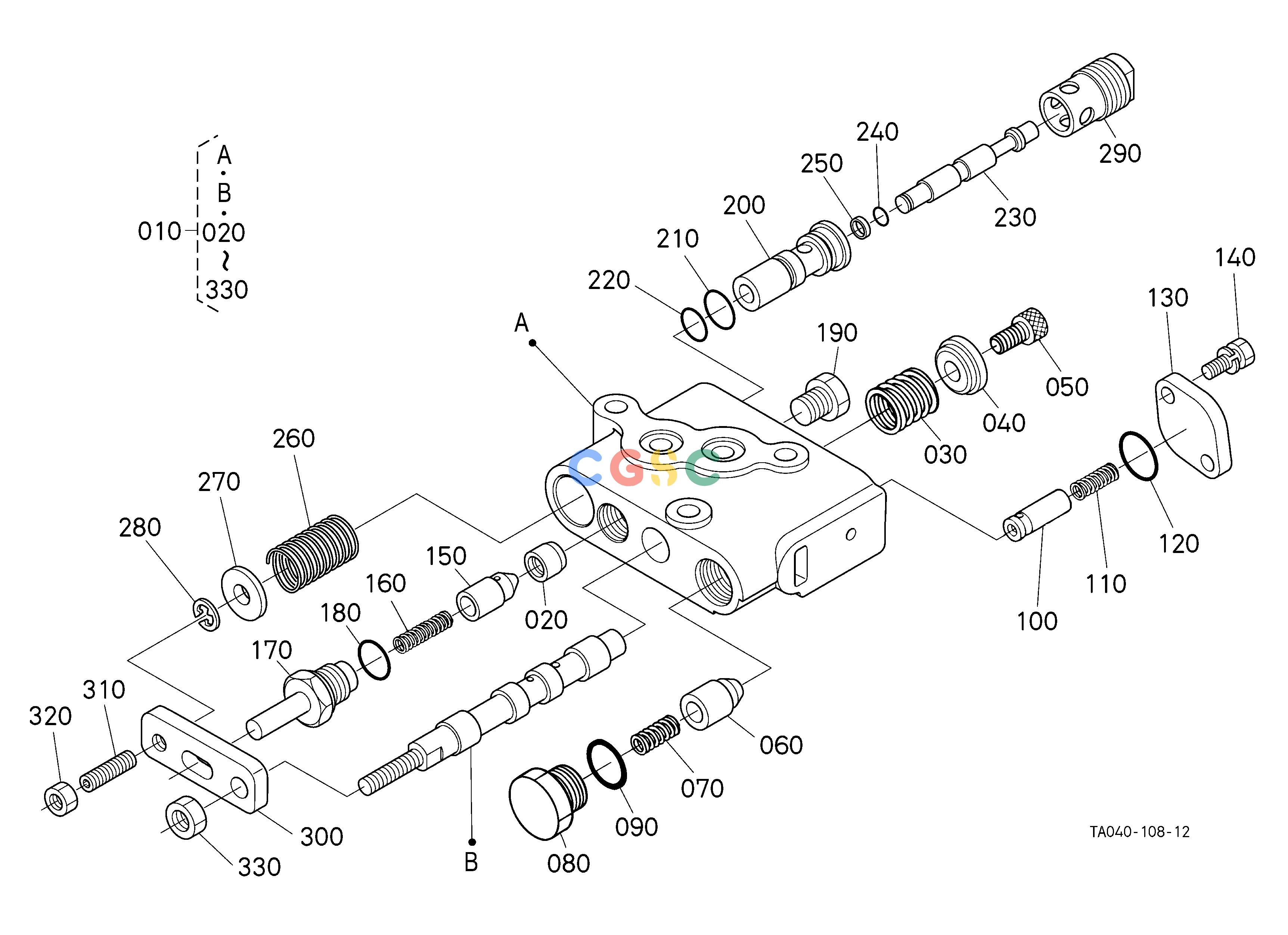

久保田零件查询H41001 CONTROL VALVE [COMPONENT PARTS] [NEW TYPE] ## S.No.>=11015 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
215 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YR90800100
|
[1] |
ASSY VALVE CONTROL
|
4.2900(lbs); 1.950
|
| 020. |
YR73020130
|
[1] |
SEAT CHECK VALVE
|
0.0110(lbs); 0.005
|
| 030. |
YT52720130
|
[1] |
SPRING SPOOL
|
0.0220(lbs); 0.010
|
| 040. |
YT52720140
|
[1] |
HOLDER SPRING
|
0.0154(lbs); 0.007
|
| 050. |
0131110814
|
[1] |
BOLT HEX-SOC-HD
|
0.0264(lbs); 0.012
|
| 060. |
YT16122250
|
[1] |
POPPET
|
0.0418(lbs); 0.019
|
| 070. |
YT10400750
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 080. |
YT52720150
|
[1] |
PLUG
|
0.0682(lbs); 0.031
|
| 090. |
0481700140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
YT52720170
|
[1] |
POPPET
|
0.0198(lbs); 0.009
|
| 110. |
YT52720180
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 120. |
0481700160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
YT52720160
|
[1] |
PLATE
|
0.0770(lbs); 0.035
|
| 140. |
0102350616
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 150. |
YR73020210
|
[1] |
POPPET
|
0.0220(lbs); 0.010
|
| 160. |
YT50900140
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 170. |
YR90800210
|
[1] |
PLUG
|
0.0792(lbs); 0.036
|
| 180. |
0481700120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 190. |
0633135010
|
[1] |
PLUG
|
0.0264(lbs); 0.012
|
| 200. |
YR73020250
|
[1] |
SLEEVE
|
0.0660(lbs); 0.030
|
| 210. |
0481705120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 220. |
0481705110
|
[1] |
O RING
|
0.0110(lbs); 0.005
|
| 230. |
YR73020260
|
[1] |
POPPET
|
0.0396(lbs); 0.018
|
| 240. |
0481600050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 250. |
YT16122280
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 260. |
YR73020270
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 270. |
YR73020410
|
[1] |
HOLDER SPRING
|
0.0132(lbs); 0.006
|
| 280. |
0461350060
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 290. |
YR82800140
|
[1] |
PLUG
|
0.1012(lbs); 0.046
|
| 300. |
YR90800310
|
[1] |
PLATE
|
0.0990(lbs); 0.045
|
| 310. |
0365050622
|
[1] |
SCREW SET
|
0.0088(lbs); 0.004
|
| 320. |
0201450060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 330. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
