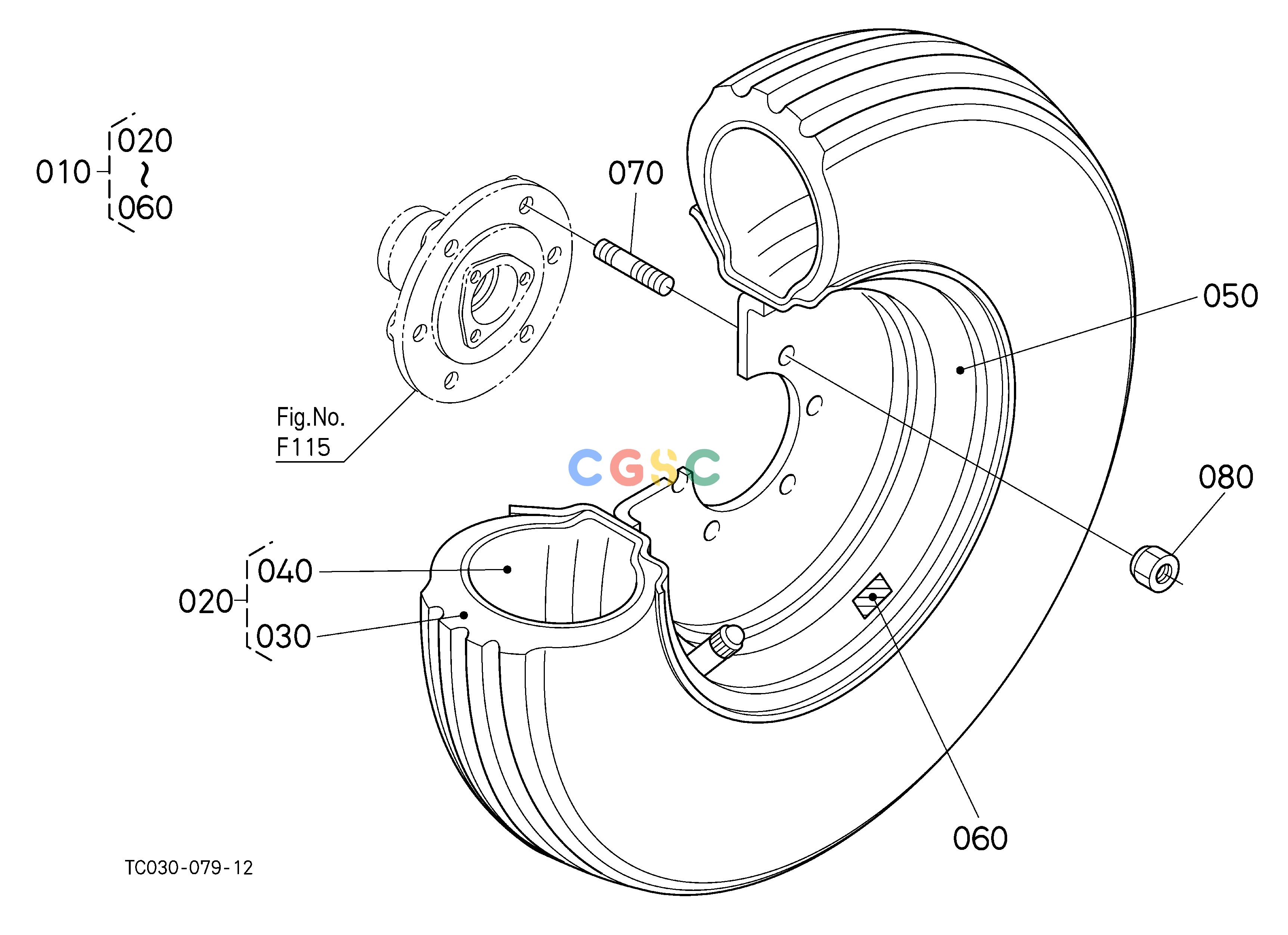

久保田零件查询P10102 FRONT WHEEL (7.5L-15) FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
951 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC03011600
|
[2] |
ASSY FRONT WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
TC03011610
|
[2] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 030. |
TC03011620
|
[2] |
TIRE
|
0.0000(lbs); 0.000
|
| 040. |
TC03011630
|
[2] |
TUBE
|
0.0000(lbs); 0.000
|
| 050. |
TC03011650
|
[2] |
WHEEL
|
0.0000(lbs); 0.000
|
| 060. |
9999999999
|
[2] |
LABEL TIRE LH
|
0.0000(lbs); 0.000
|
| 070. |
TA15049160
|
[12] |
STUD WHEEL
|
0.1100(lbs); 0.050
|
| 080. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
