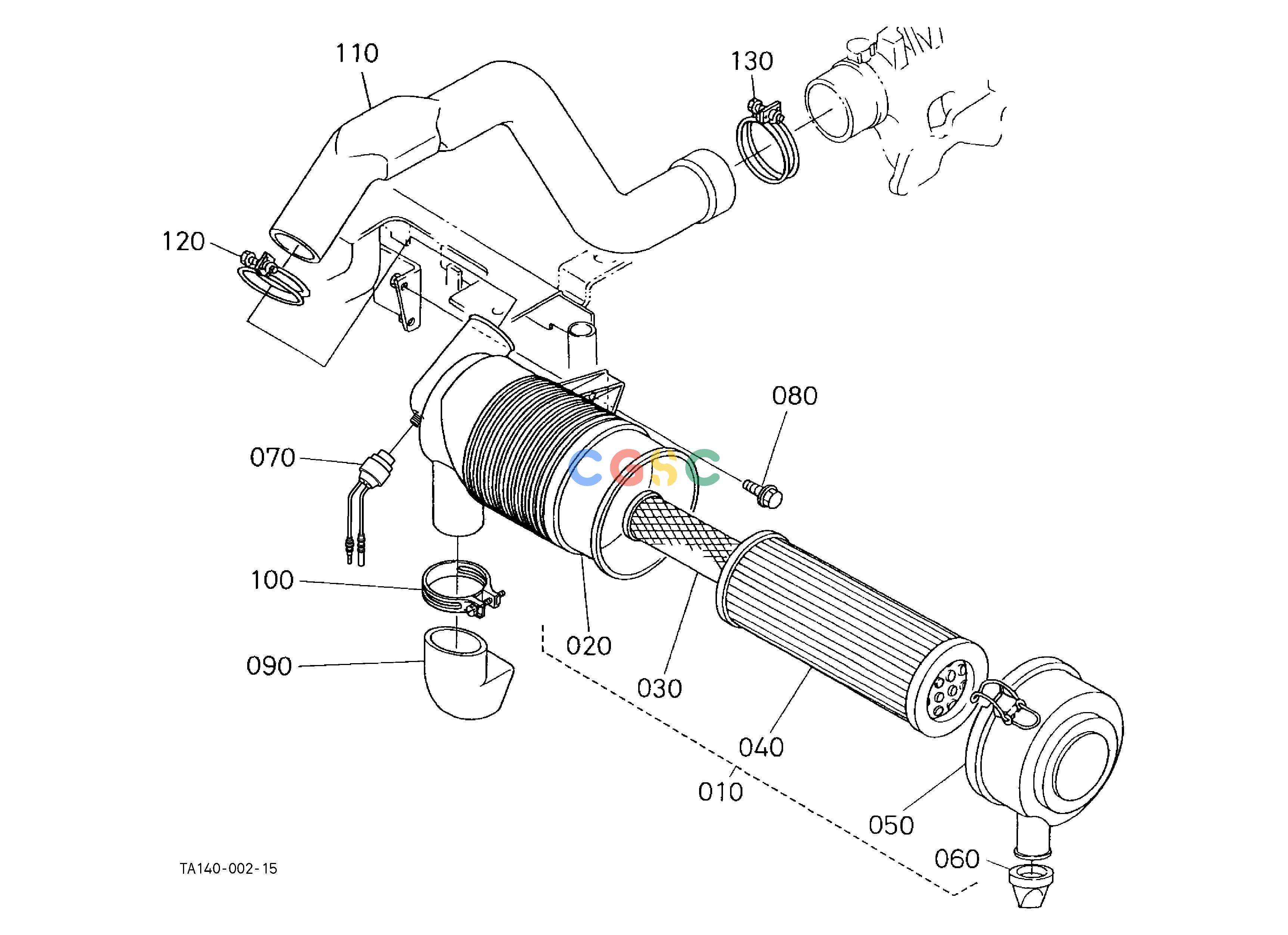

久保田零件查询060404 AIR CLEANER [CAB TYPE] [NEW TYPE] ## S.No.=>61550 S.No.;=>61550 ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
201 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA14093202
|
[1] |
ASSY CLEANER,AIR(W)
|
2.6290(lbs); 1.195
|
| 020. |
TA14093210
|
[1] |
COMP.BODY,A/C
|
0.9350(lbs); 0.425
|
| 030. |
TA04093220
|
[1] |
ASSY ELEMENT,INNER
|
0.4620(lbs); 0.210
|
| 040. |
TA04093230
|
[1] |
ASSY ELEMENT,OUTER
|
1.2320(lbs); 0.560
|
| 050. |
TA14093240
|
[1] |
COVER,ASSY. (W)
|
0.6710(lbs); 0.305
|
| 060. |
TA04093250
|
[1] |
VALVE,EVACUATOR
|
0.0242(lbs); 0.011
|
| 070. |
1583111090
|
[1] |
ASSY INDICATOR
|
0.0660(lbs); 0.030
|
| 080. |
0175450816
|
[2] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 090. |
TA14016370
|
[1] |
HOSE
|
0.2420(lbs); 0.110
|
| 090. |
TA14016373
|
[1] |
HOSE
|
0.2420(lbs); 0.110
|
| 100. |
0931889063
|
[1] |
CLAMP,HOSE
|
0.0880(lbs); 0.040
|
| 100. |
T027035560
|
[1] |
CLAMP,HOSE
|
0.0770(lbs); 0.035
|
| 110. |
TA15016300
|
[1] |
HOSE
|
2.2550(lbs); 1.025
|
| 120. |
0931889066
|
[1] |
CLAMP,HOSE
|
0.0792(lbs); 0.036
|
| 130. |
0931889069
|
[1] |
CLAMP,HOSE
|
0.0770(lbs); 0.035
|
