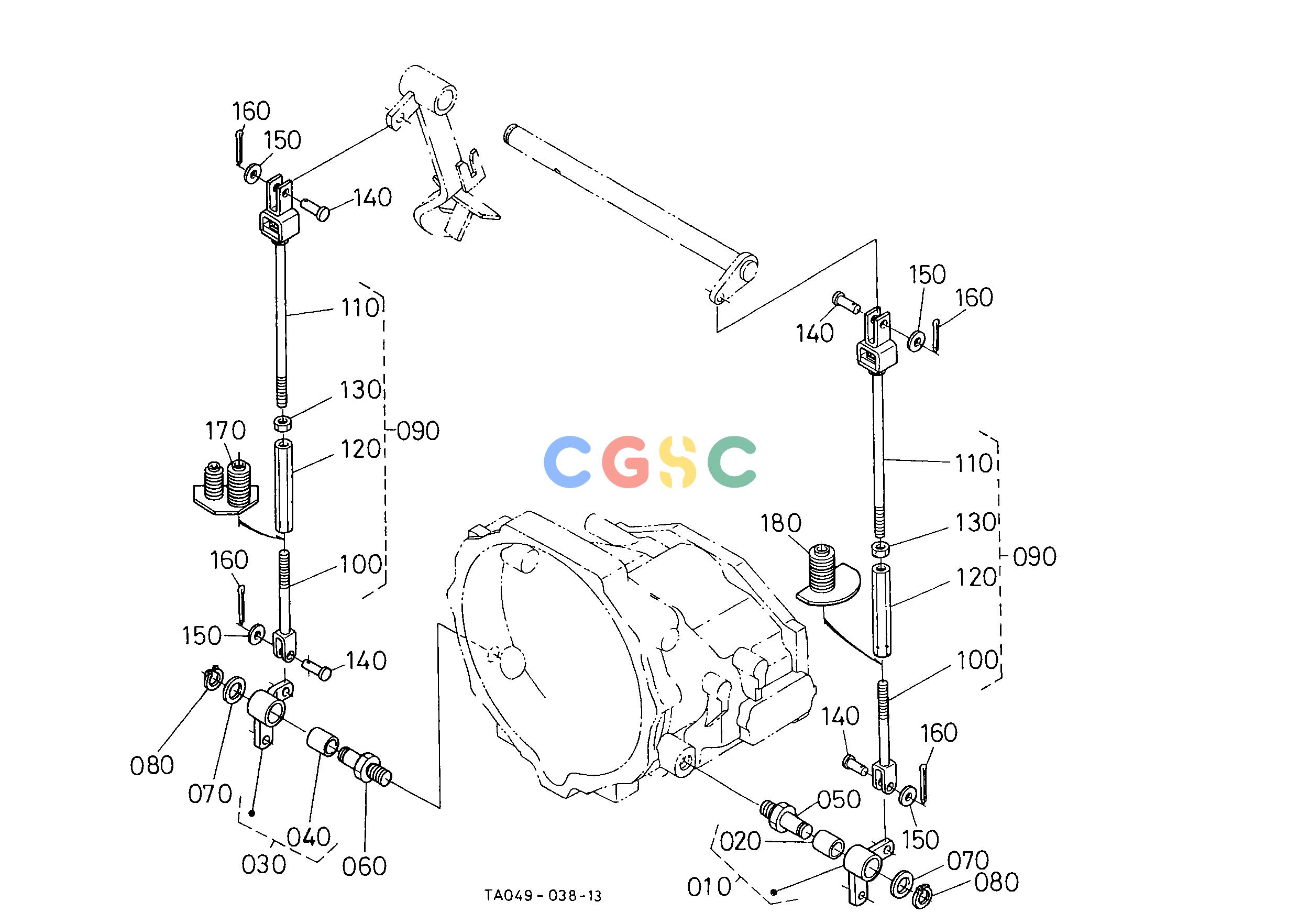

久保田零件查询D40503 BRAKE ROD 1 [GST TYPE] [CAB TYPE] REAR AXLE/BRAKEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
655 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3407044810
|
[1] |
ASSY LEVER BRAKE LH
|
0.5720(lbs); 0.260
|
| 020. |
3407044890
|
[1] |
BUSH
|
0.0770(lbs); 0.035
|
| 030. |
3407044910
|
[1] |
ASSY LEVER BRAKE RH
|
0.5720(lbs); 0.260
|
| 040. |
3407044890
|
[1] |
BUSH
|
0.0770(lbs); 0.035
|
| 050. |
3407044870
|
[1] |
SHAFT BRAKE LH
|
0.4950(lbs); 0.225
|
| 060. |
3407044880
|
[1] |
SHAFT BRAKE RH
|
0.4840(lbs); 0.220
|
| 070. |
0401150200
|
[2] |
WASHER PLAIN
|
0.0330(lbs); 0.015
|
| 080. |
0461200200
|
[2] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 090. |
T012576020
|
[2] |
ASSY ROD BRAKE
|
1.3200(lbs); 0.600
|
| 100. |
3407044840
|
[2] |
ROD BRAKE LOWER
|
0.2860(lbs); 0.130
|
| 110. |
T007076202
|
[2] |
ROD BRAKE UPPER
|
0.8690(lbs); 0.395
|
| 120. |
3235028980
|
[2] |
TURNBUCKLE
|
0.1540(lbs); 0.070
|
| 130. |
0211650100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 140. |
0512261028
|
[4] |
PIN JOINT
|
0.0440(lbs); 0.020
|
| 150. |
0401360100
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 160. |
0551150318
|
[4] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 170. |
3407075330
|
[1] |
COVER BRAKE RH
|
0.0770(lbs); 0.035
|
| 180. |
3407075340
|
[1] |
COVER BRAKE LH
|
0.0660(lbs); 0.030
|
