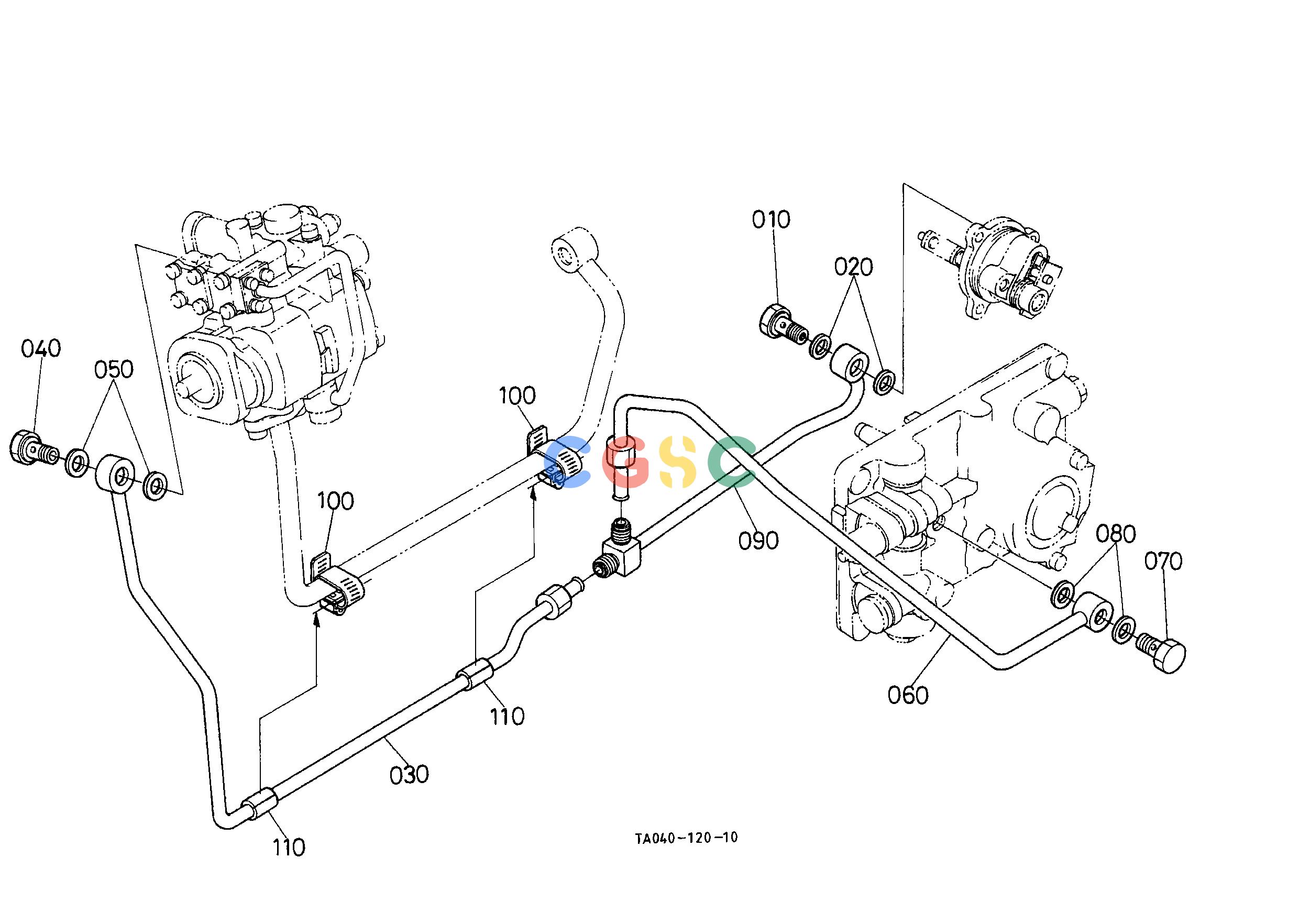

久保田零件查询H23003 PTO HYDRAULIC OIL LINE [GST TYPE] [WITH IND-PTO] ## [AVEC TYPE DE PDF IND] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
910 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04069402
|
[1] |
ASSY BOLT
|
0.0990(lbs); 0.045
|
| 020. |
0471400200
|
[2] |
GASKET
|
0.0044(lbs); 0.002
|
| 030. |
TA04066530
|
[1] |
COMP.PIPE GST
|
0.5500(lbs); 0.250
|
| 040. |
3407666590
|
[1] |
BOLT JOINT
|
0.1100(lbs); 0.050
|
| 050. |
0471400200
|
[2] |
GASKET
|
0.0044(lbs); 0.002
|
| 060. |
TA04066570
|
[1] |
COMP.PIPE GST
|
0.4510(lbs); 0.205
|
| 070. |
3407666590
|
[1] |
BOLT JOINT
|
0.1100(lbs); 0.050
|
| 080. |
0471400200
|
[2] |
GASKET
|
0.0044(lbs); 0.002
|
| 090. |
TA04069950
|
[1] |
COMP.PIPE I-PTO
|
0.3630(lbs); 0.165
|
| 100. |
6795536230
|
[2] |
CLAMP
|
0.0506(lbs); 0.023
|
| 110. |
3135145270
|
[2] |
PIPE RUBBER
|
0.0066(lbs); 0.003
|
