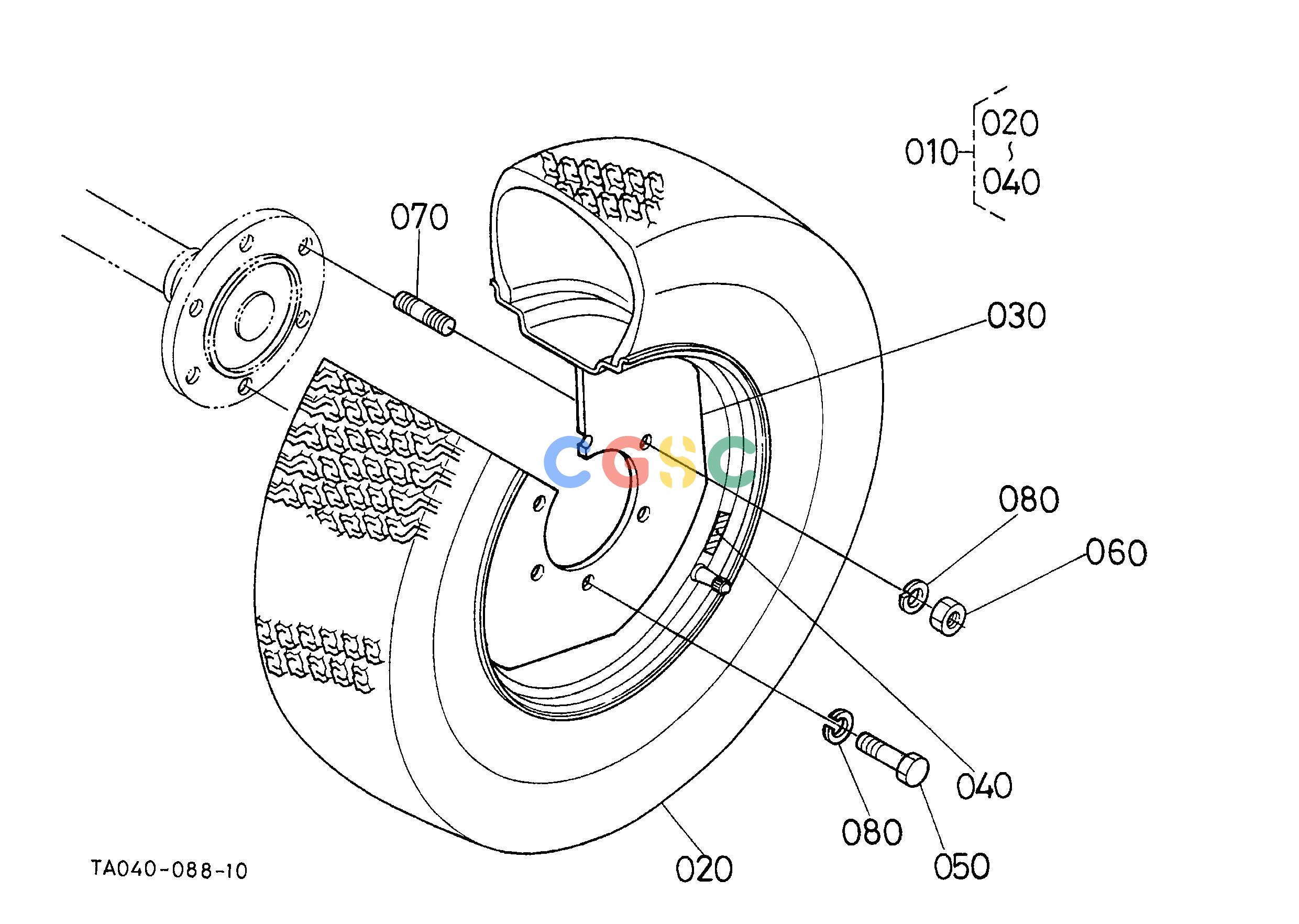

久保田零件查询P11006 REAR WHEEL (21.5L-16.1) [OLD TYPE] ## S.No.<=52079 FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
854 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3508027700
|
[2] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 020. |
3508027710
|
[2] |
TIRE
|
0.0000(lbs); 0.000
|
| 030. |
3508027720
|
[2] |
WHEEL
|
0.0000(lbs); 0.000
|
| 040. |
3508027730
|
[2] |
LABEL TIRE
|
0.0000(lbs); 0.000
|
| 050. |
0107351630
|
[8] |
BOLT
|
0.1738(lbs); 0.079
|
| 060. |
0207650160
|
[4] |
NUT
|
0.0660(lbs); 0.030
|
| 070. |
0151751632
|
[4] |
STUD
|
0.1672(lbs); 0.076
|
| 080. |
0451260160
|
[12] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
