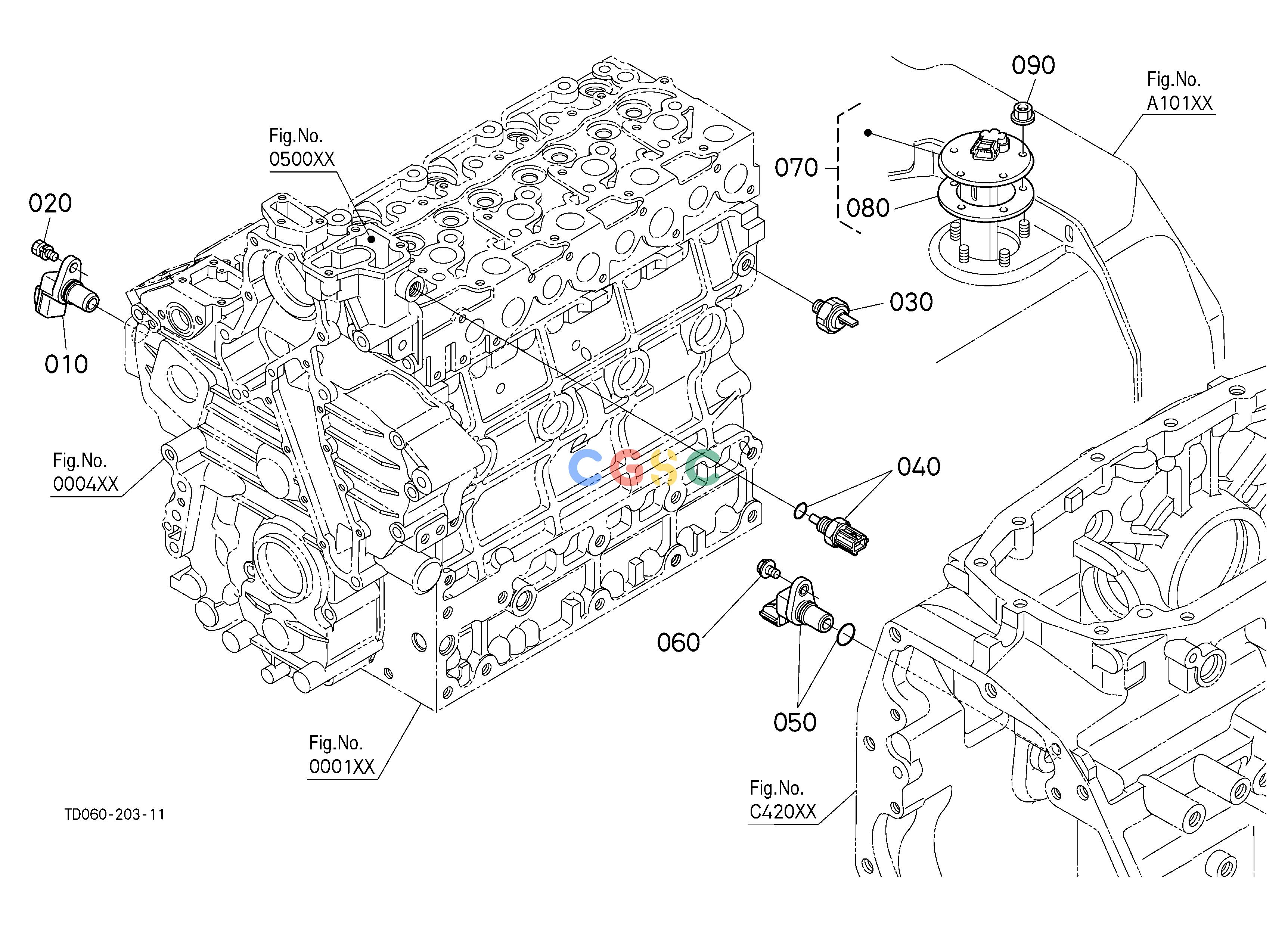

久保田零件查询B10301 SWITCH/SENSOR [EXCEPT CAB TYPE[CA]] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
937 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T106032270
|
[1] |
SENSOR REVOLUTION
|
0.0484(lbs); 0.022
|
| 020. |
0102350616
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 030. |
1553139010
|
[1] |
SWITCH OIL
|
0.0704(lbs); 0.032
|
| 040. |
T106365660
|
[1] |
SENSOR THERMO
|
0.0660(lbs); 0.030
|
| 050. |
T106018660
|
[1] |
SENSOR REVOLUTION
|
0.0550(lbs); 0.025
|
| 060. |
0175450614
|
[1] |
BOLT FLANGE
|
0.0110(lbs); 0.005
|
| 060. |
0175450616
|
[1] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 070. |
T106031204
|
[1] |
ASSY UNIT FUEL
|
0.4400(lbs); 0.200
|
| 080. |
T106031220
|
[1] |
GASKET
|
0.0220(lbs); 0.010
|
| 090. |
0276150040
|
[5] |
NUT FLANGE
|
0.0044(lbs); 0.002
|
