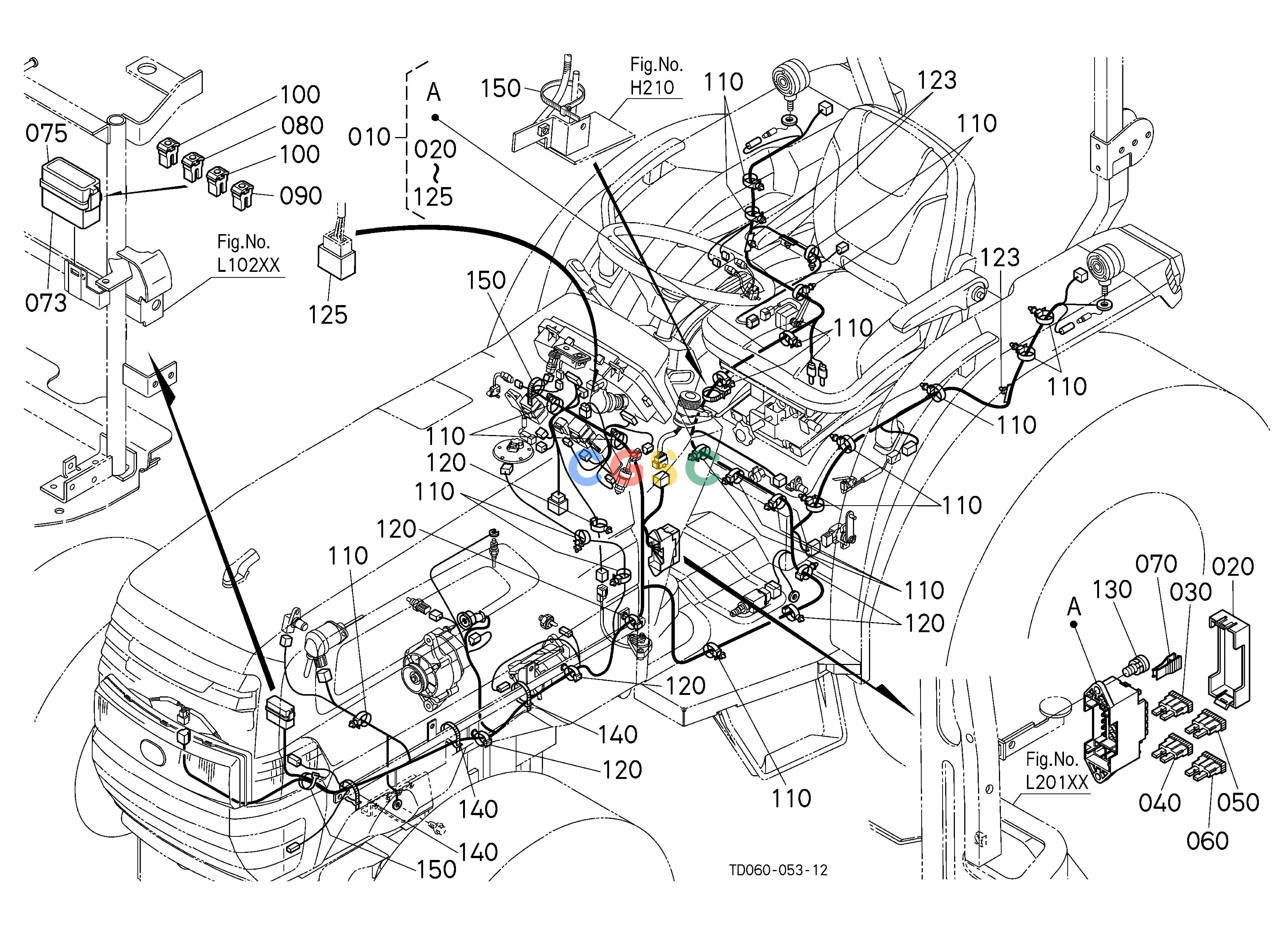

久保田零件查询B50304 ELECTRICAL WIRING [HST TYPE] [ROPS TYPE] ELECTRICAL SYSTEMEPC Kubota online_久保田Kubota_工程机械

久保田零件查询B50304 ELECTRICAL WIRING [HST TYPE] [ROPS TYPE] ELECTRICAL SYSTEMEPC Kubota online

广数供应链运营团队, 18 02月, 2025，浏览： 369 次

Pos.	Part No	Qty	Parts name	Comments
010.	TD06053952	[1]	WIRE HARNESS HST	; <=30568 5.7200(lbs); 2.600
010.	TD06053955	[1]	WIRE HARNESS HST	; =>30569 7.4800(lbs); 3.400
010.	TD06053956	[1]	WIRE HARNESS HST	; =>32035 5.7200(lbs); 2.600
020.	TD06053960	[1]	COVER FUSE BOX	0.0220(lbs); 0.010
030.	T106030430	[4]	FUSE	5A 0.0110(lbs); 0.005
040.	T115030480	[3]	FUSE	7.5A 0.0044(lbs); 0.002
050.	T106030450	[3]	FUSE	15A 0.0110(lbs); 0.005
060.	T106030470	[1]	FUSE	30A 0.0110(lbs); 0.005
070.	T106030490	[1]	PULLER FUSE	0.0110(lbs); 0.005
073.	TD06030610	[1]	CASE	0.1320(lbs); 0.060
075.	TD06030620	[1]	COVER FUSE CASE	0.0220(lbs); 0.010
080.	TD06030510	[1]	FUSE	30A 0.0088(lbs); 0.004
090.	TD06030520	[1]	FUSE	40A 0.0088(lbs); 0.004
100.	TD06030530	[2]	FUSE	50A 0.0088(lbs); 0.004
110.	T106030540	[20]	CLIP	0.0220(lbs); 0.010
120.	TD06030570	[6]	CLIP	0.0066(lbs); 0.003
123.	TD06030560	[3]	CLIP	0.0022(lbs); 0.001
125.	TD06075390	[1]	DIODE	; =>30569 0.0044(lbs); 0.002
130.	0303450616	[2]	SCREW WITH WASHER	0.0132(lbs); 0.006
140.	5531141260	[3]	BAND CORD	0.0154(lbs); 0.007
150.	5358164150	[3]	BAND CORD	; =>31697 0.0044(lbs); 0.002
