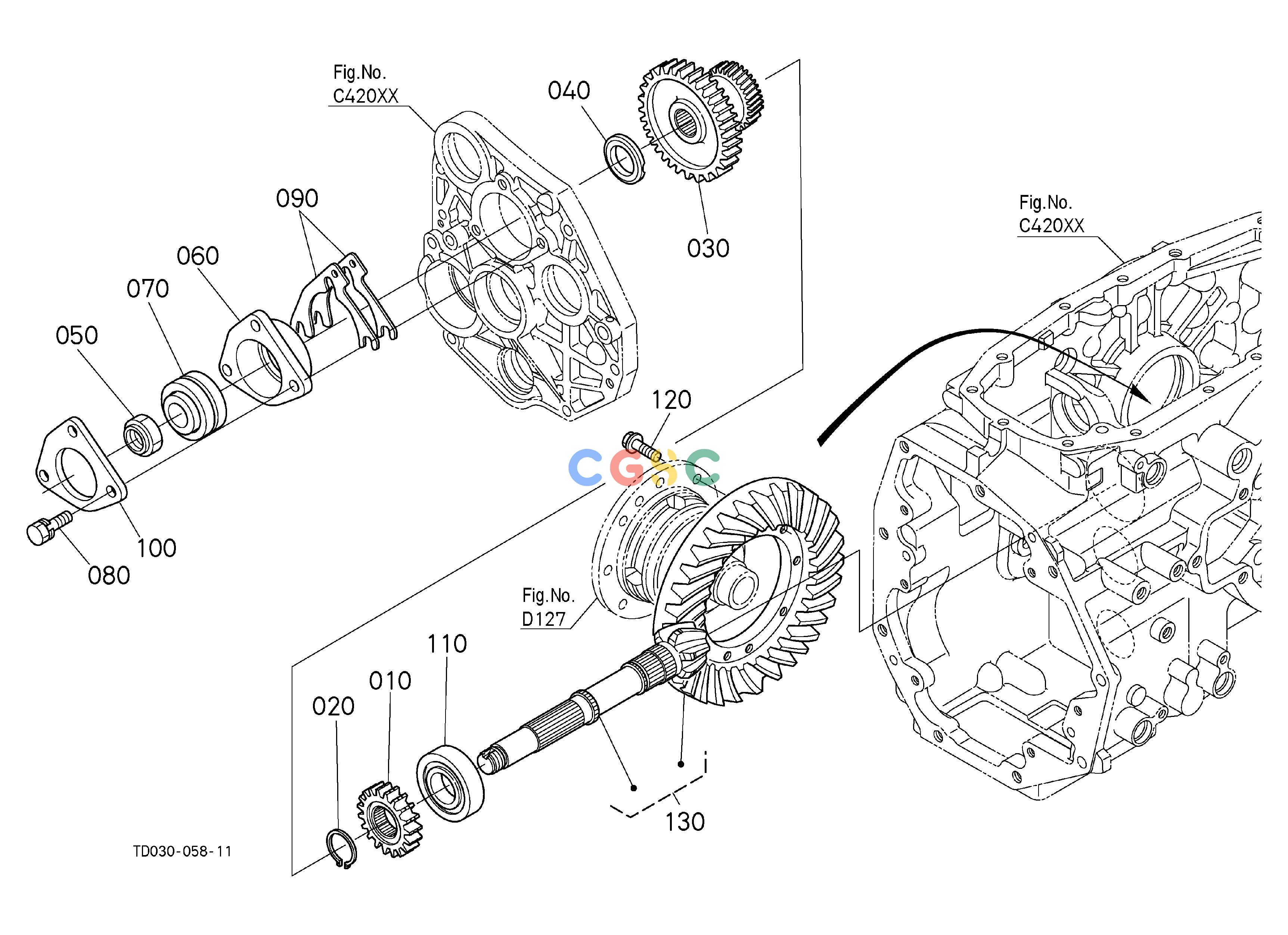

久保田零件查询D12502 SPIRAL BEVEL PINION [GST TYPE] [ROPS TYPE] CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
357 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD05015110
|
[1] |
GEAR DT
|
0.6930(lbs); 0.315
|
| 020. |
0461200320
|
[1] |
CIR CLIP EXTERNAL
|
0.0088(lbs); 0.004
|
| 030. |
TD06021710
|
[1] |
GEAR
|
4.3670(lbs); 1.985
|
| 040. |
3242067662
|
[1] |
COLLAR THRUST
|
0.0110(lbs); 0.005
|
| 050. |
3526023252
|
[1] |
NUT
|
0.0880(lbs); 0.040
|
| 060. |
3407022772
|
[1] |
CASE
|
1.0450(lbs); 0.475
|
| 070. |
T033022200
|
[1] |
BEARING TAPER-ROLLER
|
1.2650(lbs); 0.575
|
| 080. |
0113351040
|
[3] |
BOLT
|
0.0660(lbs); 0.030
|
| 090. |
3407022860
|
[2] |
SHIM
|
0.0330(lbs); 0.015
|
| 090. |
3407022870
|
[4] |
SHIM
|
0.0088(lbs); 0.004
|
| 090. |
3407022880
|
[2] |
SHIM
|
0.0110(lbs); 0.005
|
| 100. |
3407022780
|
[1] |
COVER BEARING
|
0.4620(lbs); 0.210
|
| 110. |
3407022740
|
[1] |
BEARING ROLLER
|
1.1220(lbs); 0.510
|
| 120. |
3780043870
|
[8] |
BOLT
|
0.0572(lbs); 0.026
|
| 130. |
TD06099700
|
[1] |
ASSY GEAR BEVEL
|
13.2000(lbs); 6.000
|
