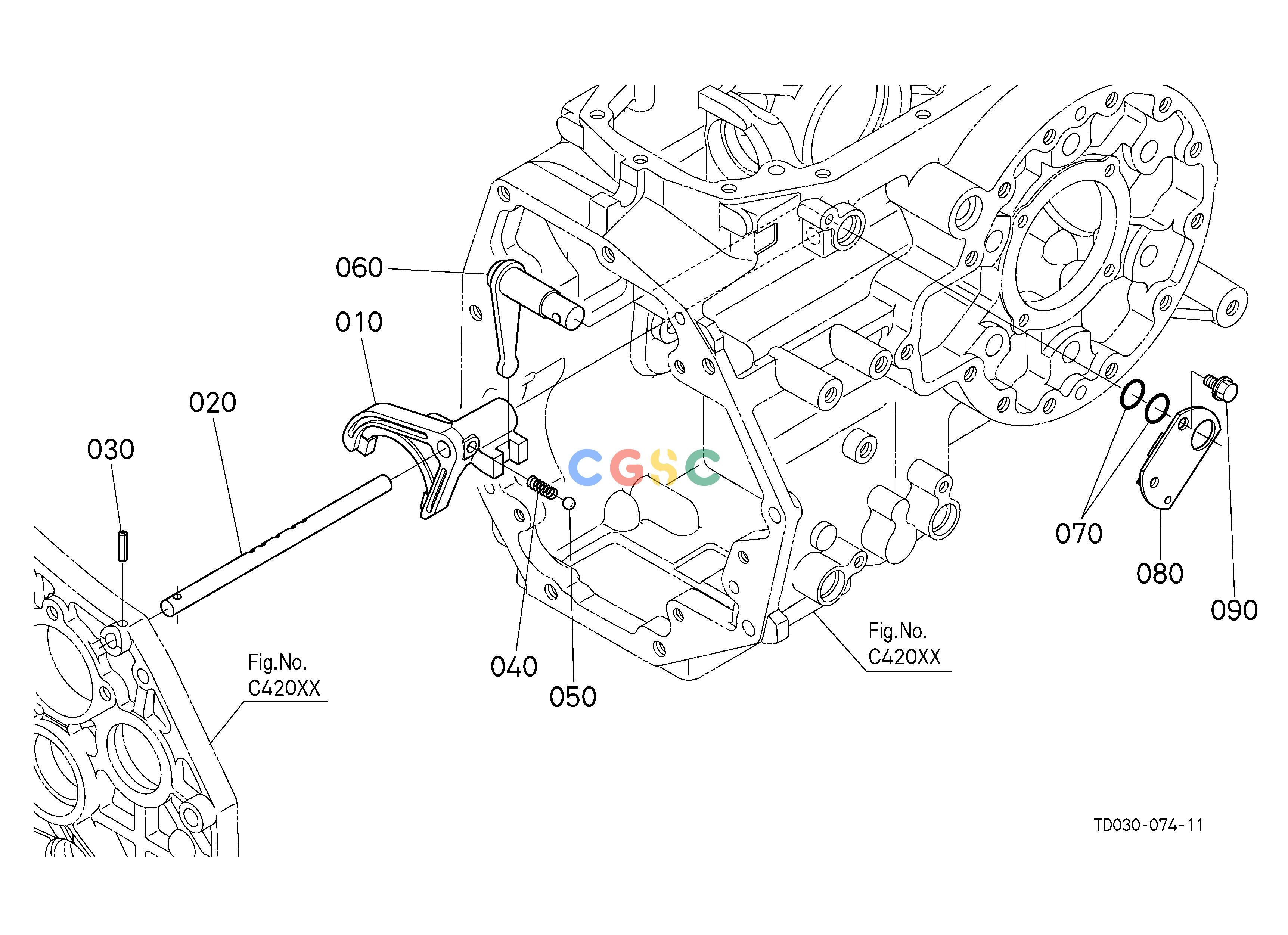

久保田零件查询D21704 RANGE GEAR SHIFT FORK [HST TYPE] SPEED CHANGE SHIFT FORK /SHIFT LEVEREPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
344 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06054500
|
[1] |
FORK RANGE SHIFT
|
0.4620(lbs); 0.210
|
| 020. |
TD06054410
|
[1] |
ROD RANGE SHIFT
|
0.4092(lbs); 0.186
|
| 030. |
0541100522
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 040. |
3253023730
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 050. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 060. |
TD06054420
|
[1] |
ARM SHIFT
|
0.5500(lbs); 0.250
|
| 070. |
0481600200
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 080. |
TD06054430
|
[1] |
STOPPER
|
0.1760(lbs); 0.080
|
| 090. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
