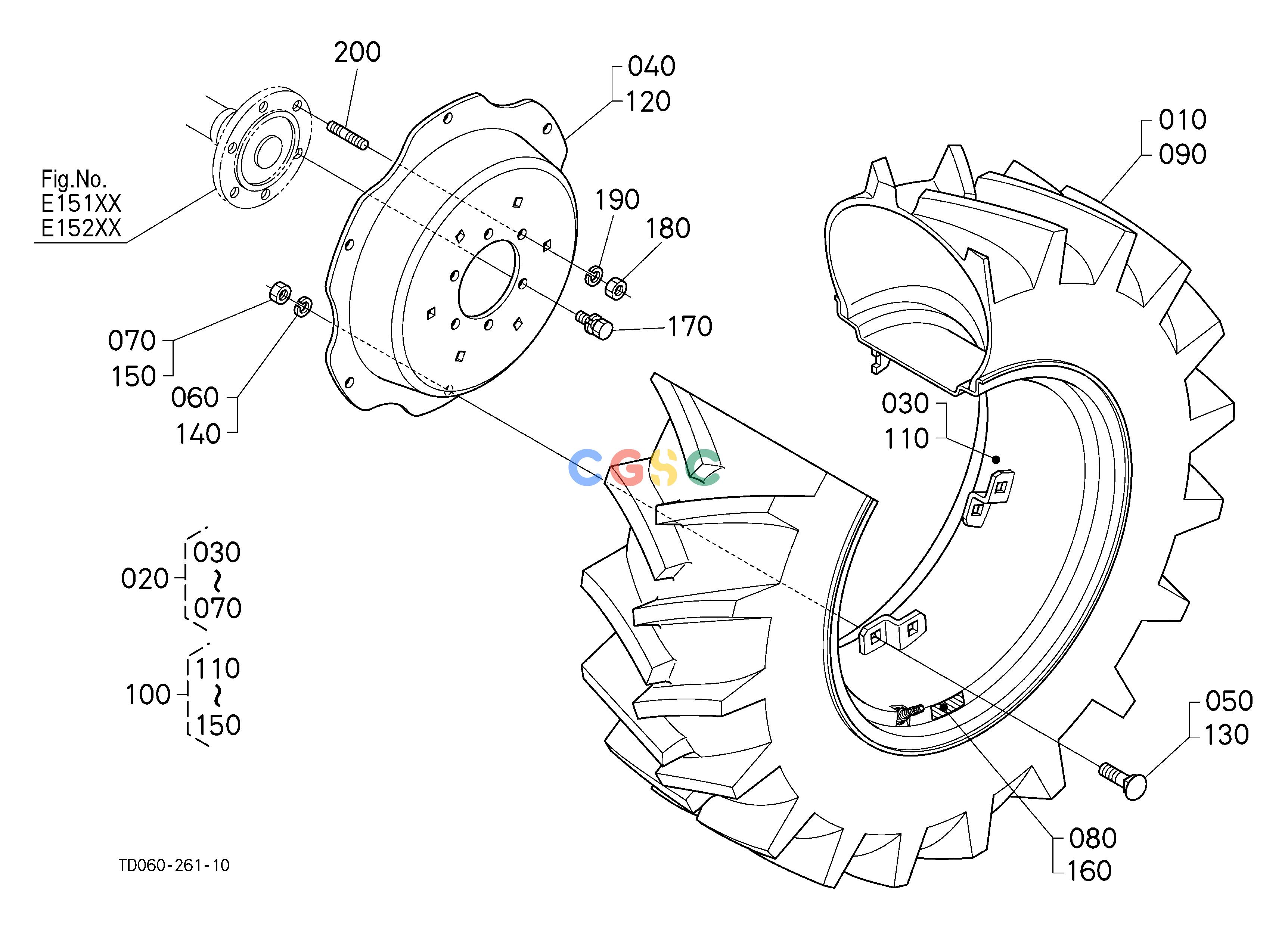

久保田零件查询P11002 REAR WHEEL(14.9-24R1) [NEW TYPE] FRONT/REAR TIREEPC Kubota online

广数供应链运营团队, 18 02月, 2025，浏览： 333 次

Pos.	Part No	Qty	Parts name	Comments
010.	TD05040410	[1]	TIRE	ALR6809R 0.0000(lbs); 0.000
020.	TC23027840	[1]	ASSY WHEEL	ALR6809R 0.0000(lbs); 0.000
030.	TC23027850	[1]	RIM	ALR6809R 0.0000(lbs); 0.000
040.	TC23027660	[1]	DISK	ALR6809R 0.0000(lbs); 0.000
050.	3122027680	[6]	BOLT	ALR6809R 0.1980(lbs); 0.090
060.	7559933017	[6]	WASHER SPRING LOCK	ALR6809R 0.0110(lbs); 0.005
070.	0217450160	[6]	NUT	ALR6809R 0.0484(lbs); 0.022
080.	9999999999	[1]	LABEL TIRE RH	ALR6809R 0.0000(lbs); 0.000
090.	TD05040410	[1]	TIRE	ALR6809L 0.0000(lbs); 0.000
100.	TC23027840	[1]	ASSY WHEEL	ALR6809L 0.0000(lbs); 0.000
110.	TC23027850	[1]	RIM	ALR6809L 0.0000(lbs); 0.000
120.	TC23027660	[1]	DISK	ALR6809L 0.0000(lbs); 0.000
130.	3122027680	[6]	BOLT	ALR6809L 0.1980(lbs); 0.090
140.	7559933017	[6]	WASHER SPRING LOCK	ALR6809L 0.0110(lbs); 0.005
150.	0217450160	[6]	NUT	ALR6809L 0.0484(lbs); 0.022
160.	9999999999	[1]	LABEL TIRE LH	ALR6809L 0.0000(lbs); 0.000
170.	0103351630	[8]	BOLT	0.1980(lbs); 0.090
180.	0207650160	[4]	NUT	0.0660(lbs); 0.030
190.	0451260160	[4]	WASHER SPRING	0.0220(lbs); 0.010
200.	0151751632	[4]	STUD	0.1672(lbs); 0.076
