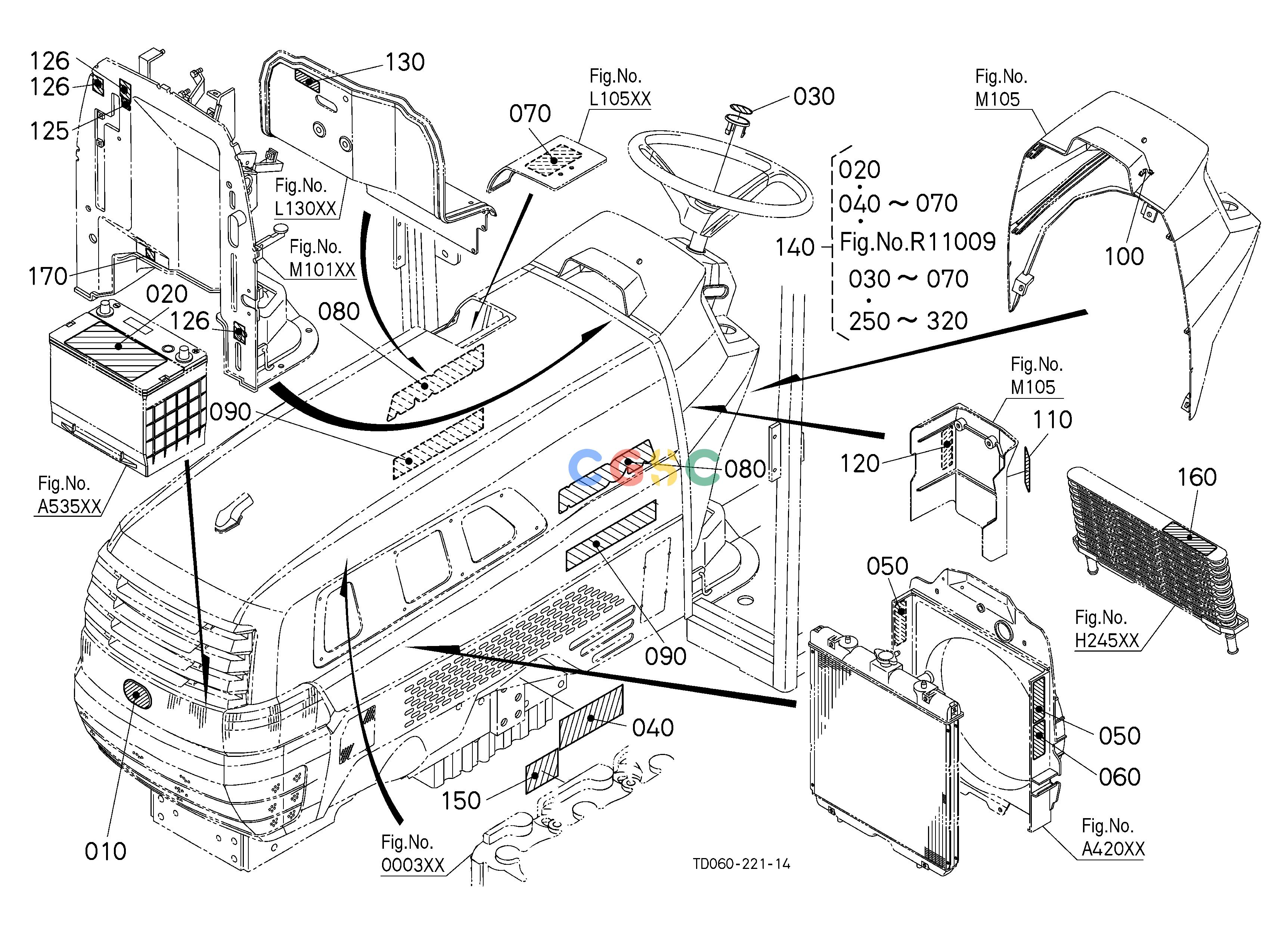

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | TD06049510 | [1] | MARK SYMBOL | 0.0374(lbs); 0.017 |
| 020. | TD06030120 | [1] | LABEL BATTERY | ; <=31696 0.0088(lbs); 0.004 |
| 020. | TD06030122 | [1] | LABEL BATTERY | ; =>31697 0.0088(lbs); 0.004 |
| 020. | TD02030122 | [1] | LABEL BATTERY | OUT OF USE 0.0088(lbs); 0.004 |
| 030. | 3F74062800 | [1] | LABEL PAD | ; <=30568 0.0132(lbs); 0.006 |
| 030. | 3F74062802 | [1] | LABEL PAD | ; =>30569 0.0132(lbs); 0.006 |
| 040. | TA04049650 | [1] | LABEL START CAUTION | 0.0088(lbs); 0.004 |
| 050. | 3275149580 | [2] | LABEL FAN BELT | 0.0022(lbs); 0.001 |
| 060. | TC03049580 | [1] | LABEL MUFFLER | 0.0022(lbs); 0.001 |
| 070. | TA04049562 | [1] | LABEL OIL FILLER | 0.0044(lbs); 0.002 |
| 080. | TD06080930 | [2] | LABEL KUBOTA | 0.0154(lbs); 0.007 |
| 090. | TD04049422 | [2] | MARK MODEL | ; <=31335 0.0220(lbs); 0.010 |
| 090. | TD04049423 | [2] | MARK MODEL | ; =>31336 0.0220(lbs); 0.010 |
| 100. | TD06089360 | [1] | MARK MAIN SWITCH | 0.0022(lbs); 0.001 |
| 110. | TD06049450 | [1] | MARK TILT | 0.0022(lbs); 0.001 |
| 120. | TA04049460 | [1] | LABEL PARKING | 0.0022(lbs); 0.001 |
| 125. | 3455075410 | [1] | LABEL HOLE | 0.0022(lbs); 0.001 |
| 126. | 3455075420 | [3] | LABEL FENDER HOLE | ; =>30140 0.0022(lbs); 0.001 |
| 130. | TA14071950 | [1] | LABEL COOLER | 0.0022(lbs); 0.001 |
| 140. | TD06099500 | [1] | KIT LABEL SAFETY (A) | 0.1320(lbs); 0.060 |
| 150. | 1G79087210 | [1] | LABEL PUMP | ; =>32288 0.0022(lbs); 0.001 |
| 160. | TD06087290 | [1] | MARK HOT | ; =>33754 0.0022(lbs); 0.001 |
| 170. | T106575410 | [1] | LABEL HOLE | ; =>35303 0.0022(lbs); 0.001 |
