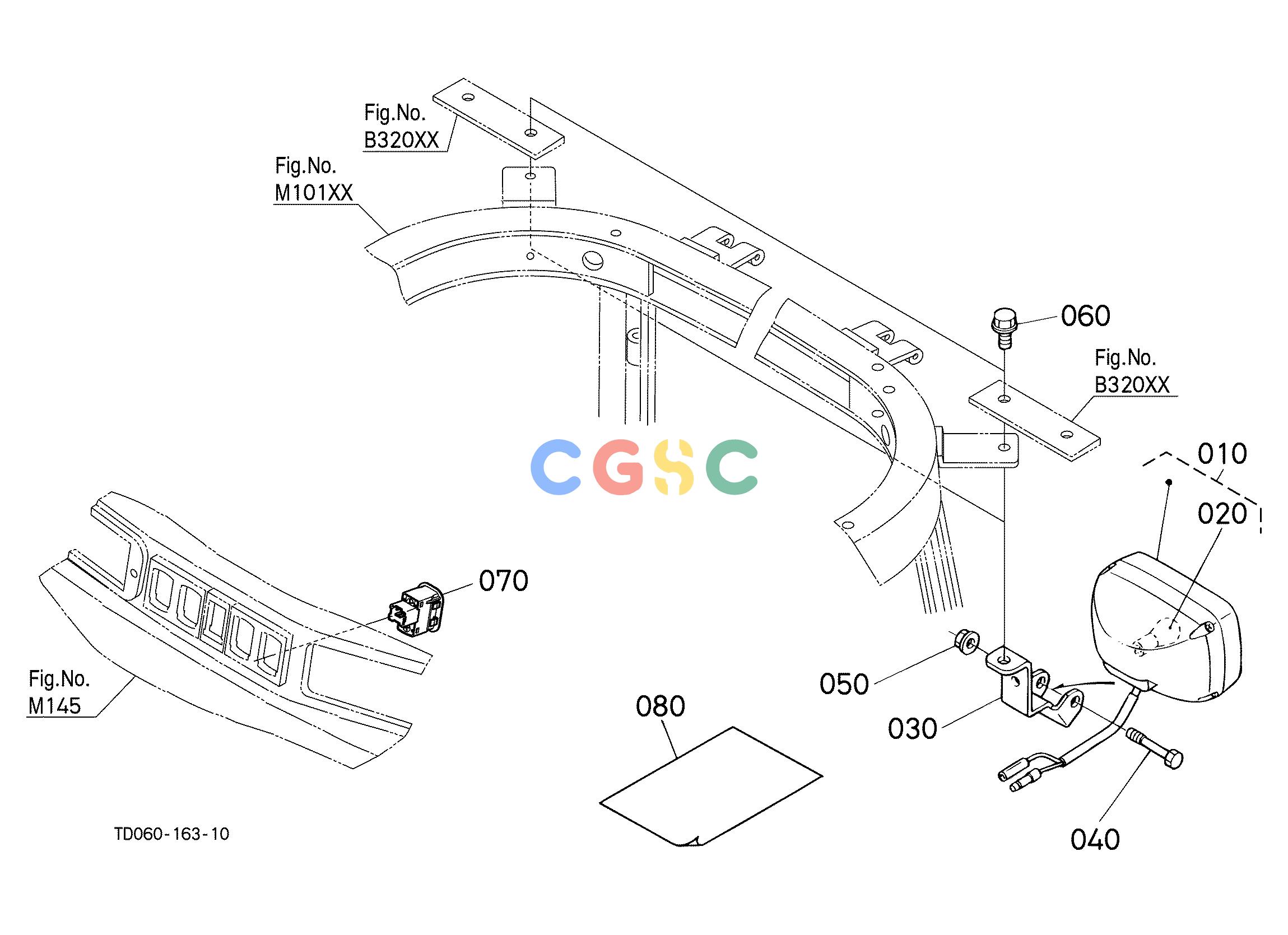

久保田零件查询T10502 WORKING LIGHT KIT (W/G No.L8443A) [CAB TYPE] [[A]OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
956 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T027075300
|
[2] |
LIGHT WORK
|
0.8140(lbs); 0.370
|
| 020. |
9906191060
|
[2] |
BULB
|
0.0220(lbs); 0.010
|
| 030. |
T027075310
|
[2] |
STAY WORKING LIGHT
|
0.3256(lbs); 0.148
|
| 030. |
T027075313
|
[2] |
STAY WORKING LIGHT
|
0.3256(lbs); 0.148
|
| 040. |
T027086210
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 050. |
T027086220
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 060. |
0177451025
|
[2] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
| 070. |
T106575370
|
[1] |
SWITCH WORK LIGHT R.
|
0.0440(lbs); 0.020
|
| 080. |
9999999999
|
[1] |
MANUAL ASSEMBLY
|
0.0000(lbs); 0.000
|
