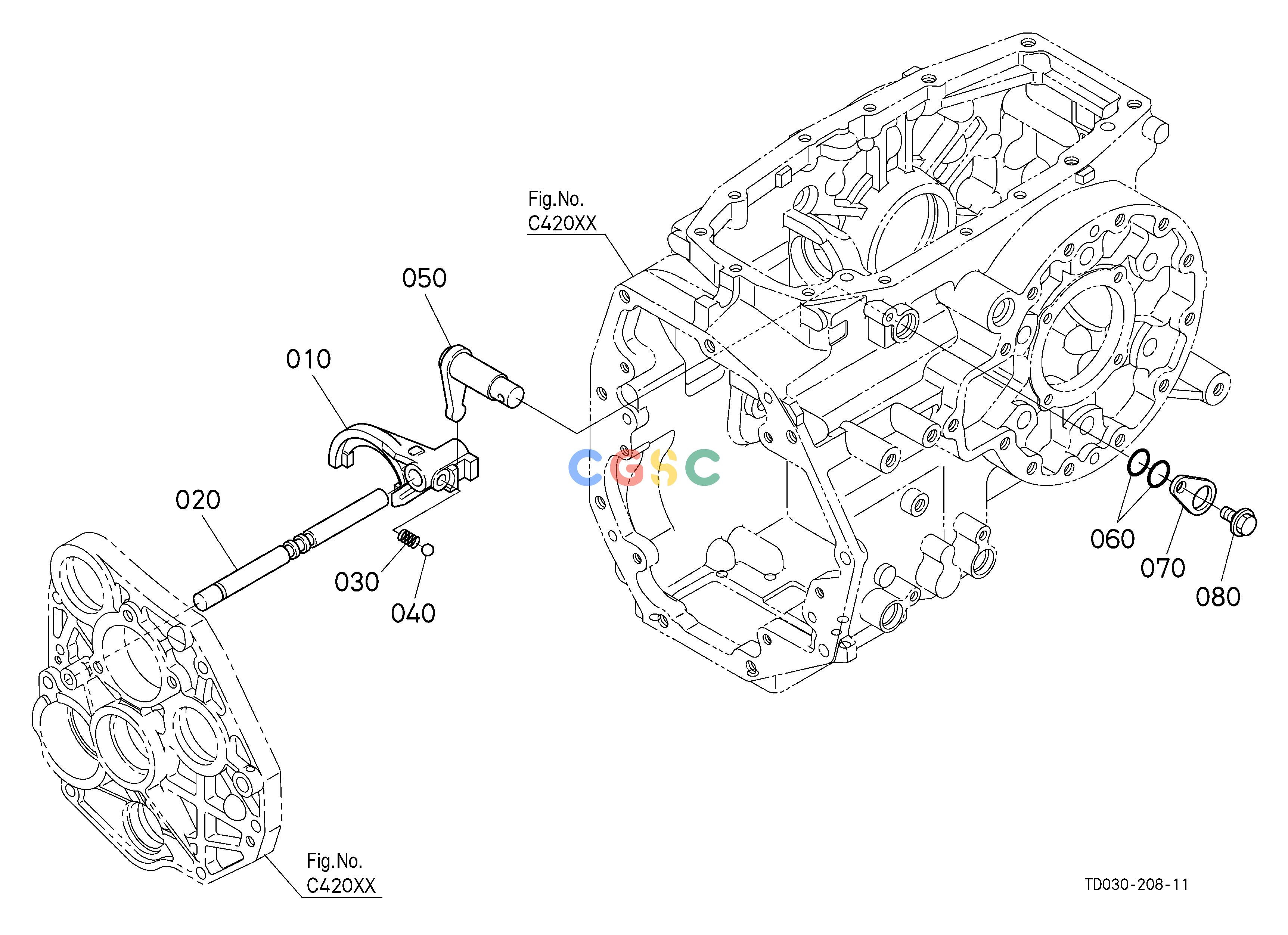

久保田零件查询T11502 CREEP SPEED KIT (SHIFT FORK) [EXCEPT HST TYPE] [ROPS TYPE] [OPTION] ## (W/G No.L8324)/(No.de M/E L8324) OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
608 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T106024500
|
[1] |
FORK CREEP SHIFT
|
0.3498(lbs); 0.159
|
| 020. |
T115024510
|
[1] |
ROD FORK
|
0.3740(lbs); 0.170
|
| 030. |
T106024180
|
[1] |
SPRING
|
0.0066(lbs); 0.003
|
| 040. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 050. |
T106024520
|
[1] |
ARM CREEP SHIFT
|
0.5170(lbs); 0.235
|
| 060. |
0481600200
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 070. |
3407024350
|
[1] |
STOPPER
|
0.0440(lbs); 0.020
|
| 080. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
