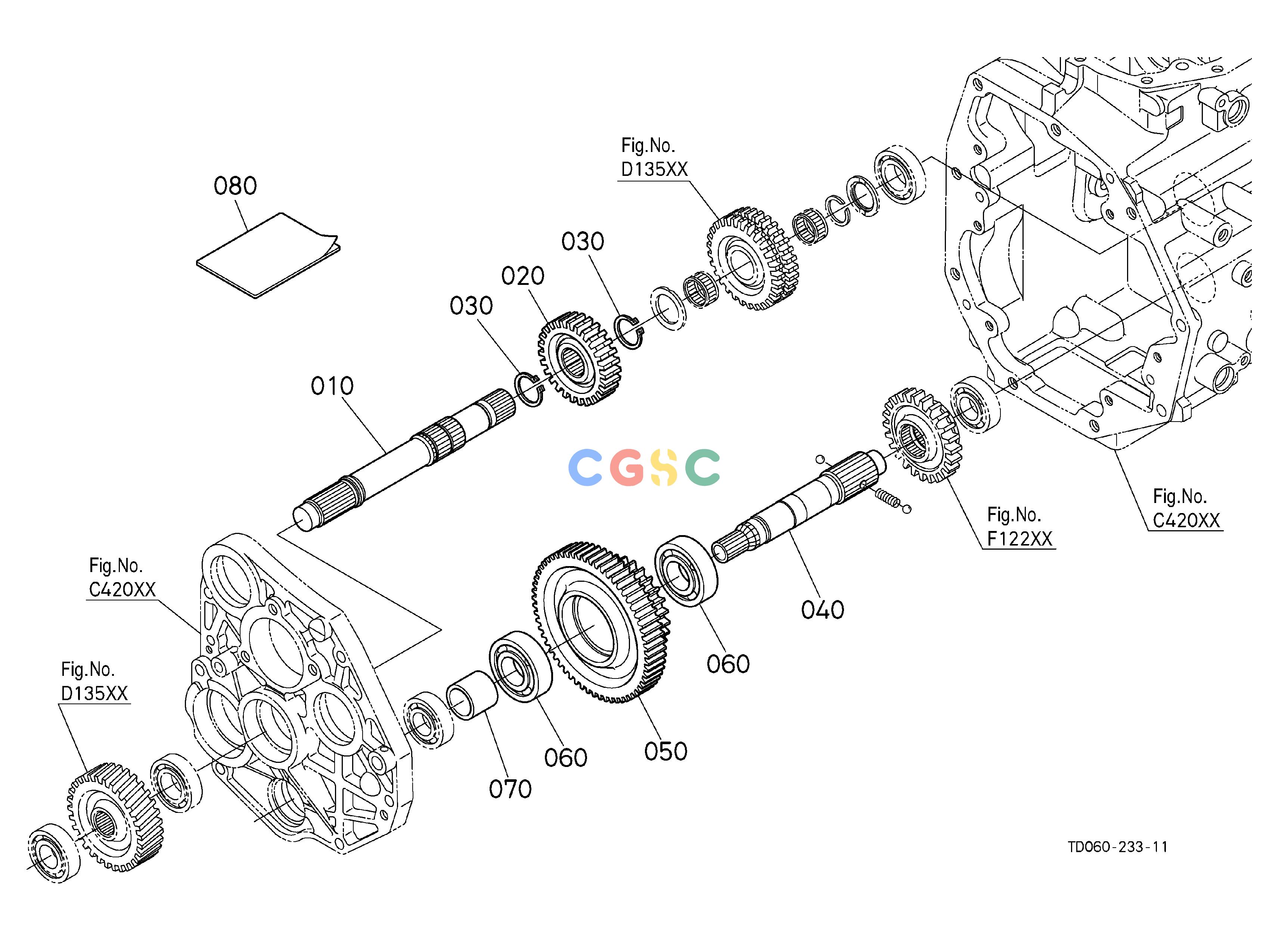

久保田零件查询T11600 MID PTO GEAR KIT (W/G No.8315) [EXCEPT HST TYPE] [ROPS TYPE] [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
345 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD03023680
|
[1] |
SHAFT PTO DRIVE
|
3.7180(lbs); 1.690
|
| 020. |
TD06025050
|
[1] |
GEAR M-PTO
|
2.0900(lbs); 0.950
|
| 030. |
0461200350
|
[2] |
CIR CLIP EXTERNAL
|
0.0220(lbs); 0.010
|
| 040. |
TD06015222
|
[1] |
SHAFT DT DRIVE
|
2.0900(lbs); 0.950
|
| 050. |
TD06025100
|
[1] |
GEAR M-PTO
|
6.9300(lbs); 3.150
|
| 060. |
3275122320
|
[2] |
BEARING BALL
|
0.6270(lbs); 0.285
|
| 070. |
TD03025120
|
[1] |
COLLAR
|
0.1452(lbs); 0.066
|
| 080. |
9999999999
|
[1] |
MANUAL INSTRUCTION
|
0.0000(lbs); 0.000
|
