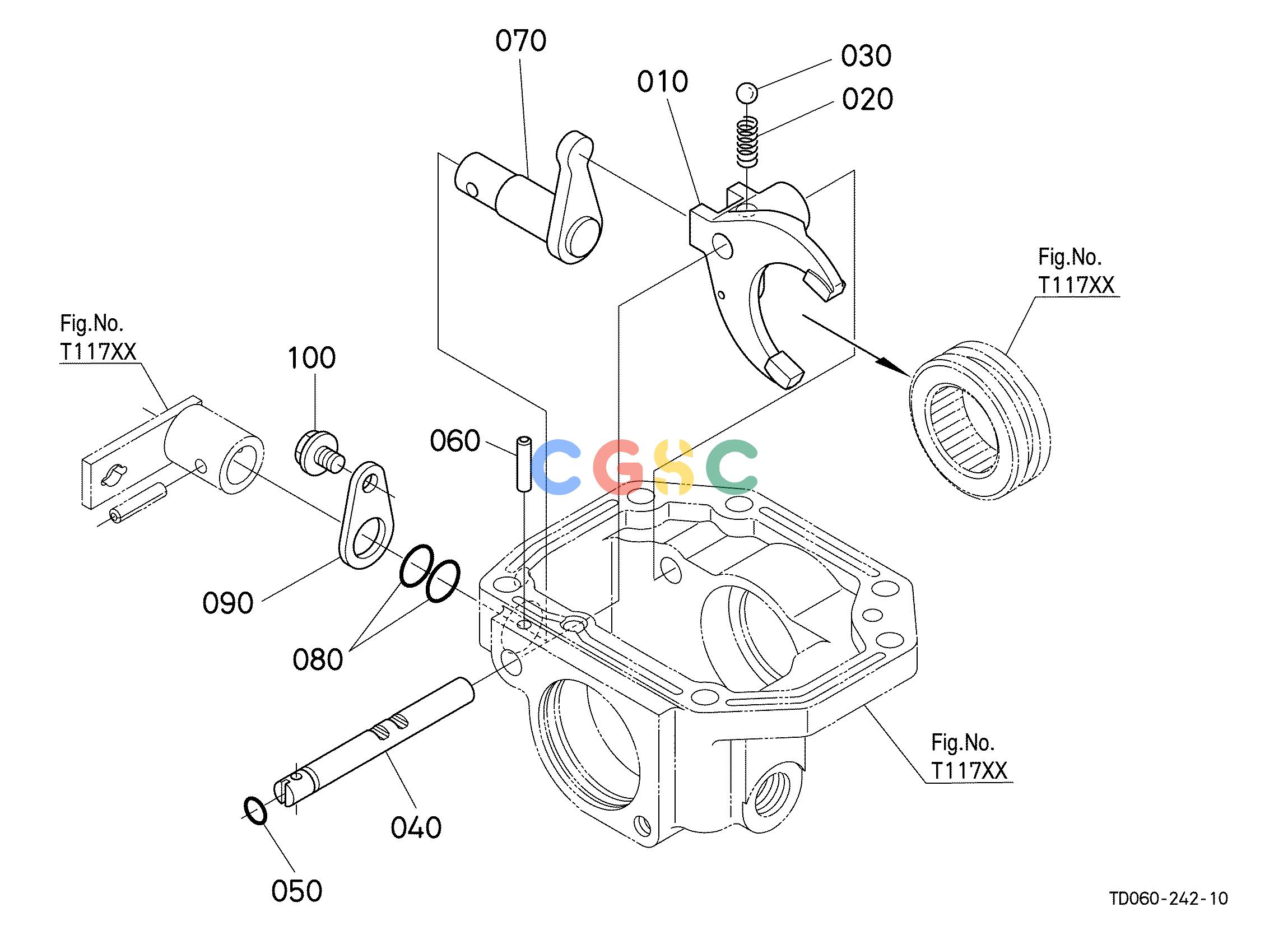

久保田零件查询T11702 MID PTO (SHIFT FORK) (W/G No.L4330,L4630:L8313/L5030:L8314) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
259 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD03025300
|
[1] |
FORK SHIFT PTO
|
0.5940(lbs); 0.270
|
| 020. |
3253023730
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 030. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 040. |
TD03025310
|
[1] |
ROD FORK
|
0.1980(lbs); 0.090
|
| 050. |
0481600090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0541100428
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 070. |
TD03025320
|
[1] |
ARM M-PTO
|
0.4180(lbs); 0.190
|
| 080. |
0481600200
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 090. |
3407024350
|
[1] |
STOPPER
|
0.0440(lbs); 0.020
|
| 100. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
