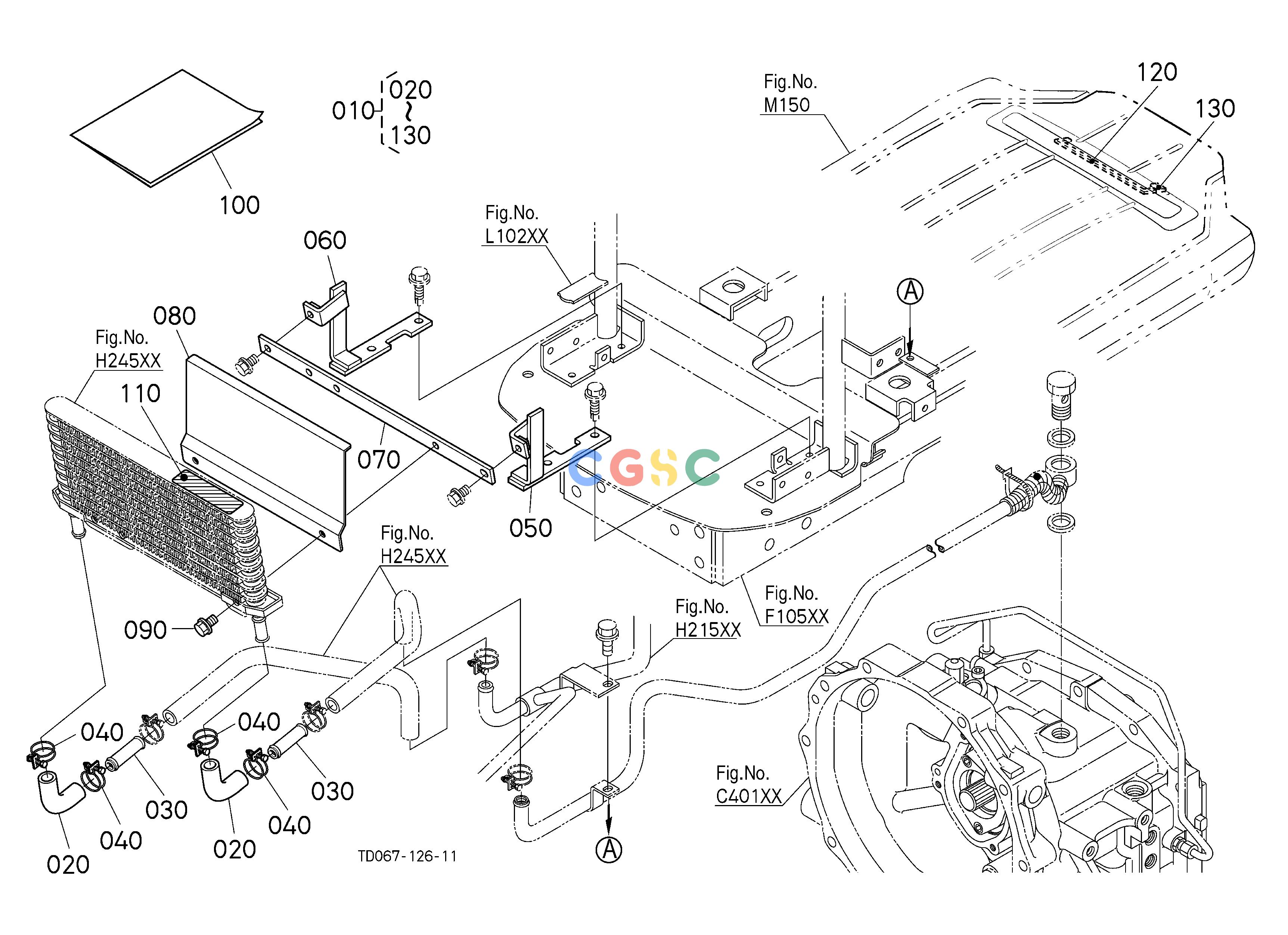

久保田零件查询T12602 HYDRAULIC PIPE KIT (OIL COOLER) [OLD TYPE] [OPTION] ## S.No.<=33753 OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
577 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD05099200
|
[1] |
KIT HOSE OIL COOLER
|
3.5200(lbs); 1.600
|
| 020. |
TD06099210
|
[2] |
HOSE O/C JOINT
|
0.0550(lbs); 0.025
|
| 030. |
3G75017420
|
[2] |
JOINT DRAIN
|
0.0660(lbs); 0.030
|
| 040. |
0931889024
|
[4] |
CLAMP HOSE
|
0.0440(lbs); 0.020
|
| 050. |
TD05087170
|
[1] |
STAY OIL COOLER LH
|
0.5940(lbs); 0.270
|
| 060. |
TD05087180
|
[1] |
STAY OIL COOLER RH
|
0.5940(lbs); 0.270
|
| 070. |
TD06087190
|
[1] |
STAY OIL COOLER
|
0.6160(lbs); 0.280
|
| 080. |
TD05087280
|
[1] |
PLATE BATTERY
|
0.8360(lbs); 0.380
|
| 090. |
0175450816
|
[2] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 100. |
9999999999
|
[1] |
MANUAL ASSEMBLY
|
0.0000(lbs); 0.000
|
| 110. |
TD06087290
|
[1] |
MARK HOT
|
0.0022(lbs); 0.001
|
| 120. |
TD06071550
|
[1] |
SEAL AIR DAMPER
|
0.0044(lbs); 0.002
|
| 130. |
TD06071560
|
[1] |
SEAL AIR DAMPER
|
0.0022(lbs); 0.001
|
