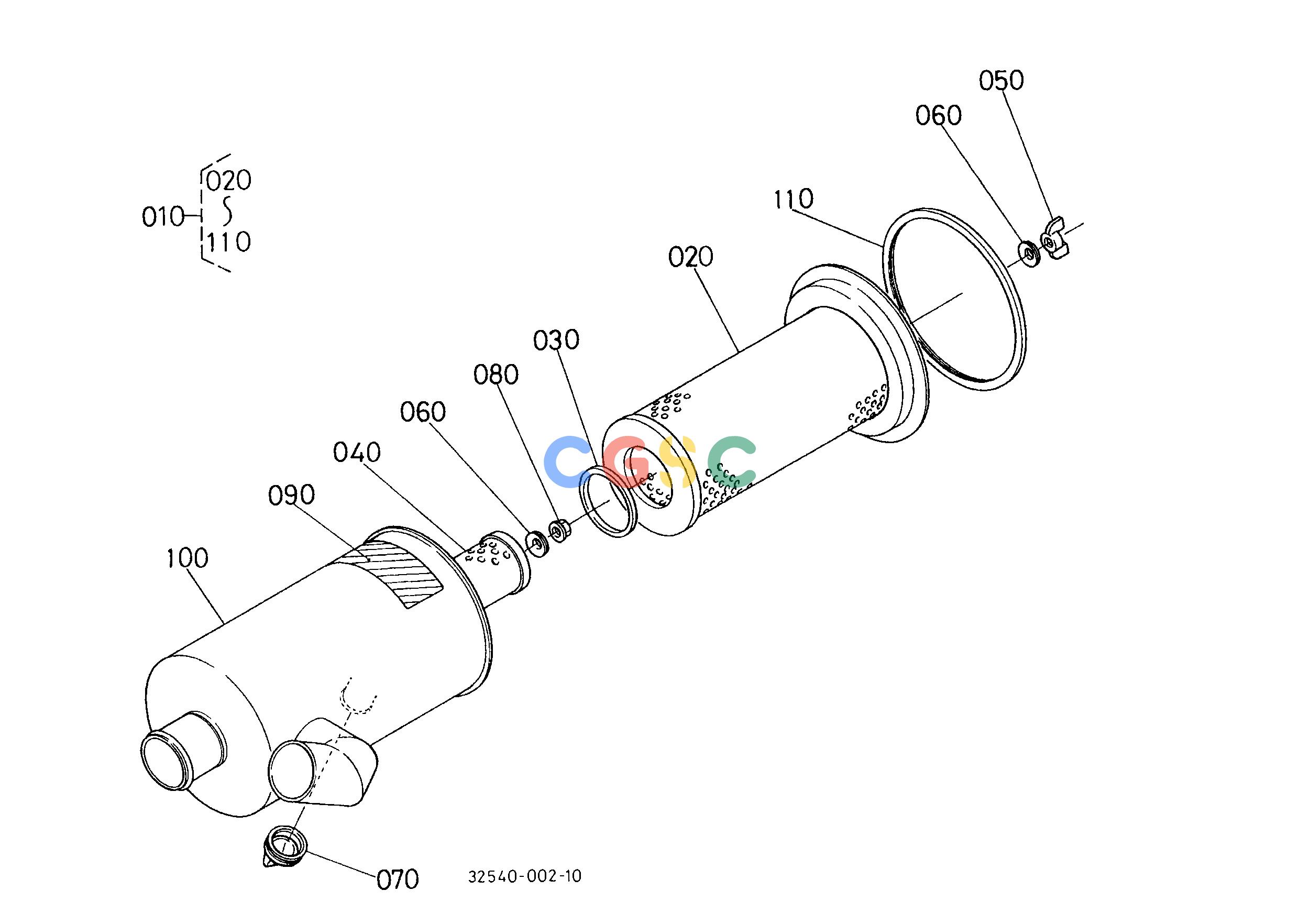

久保田零件查询T01202 AIR CLEANER (DOUBLE) [COMPONENT PARTS] ## S.No.:L5450DT;>=60315 ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
566 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253013850
|
[1] |
ASSY CLEANER AIR
|
0.0000(lbs); 0.000
|
| 010. |
3253013853
|
[1] |
ASSY CLEANER AIR
|
7.4800(lbs); 3.400
|
| 020. |
1735111080
|
[1] |
ASSY ELEMENT CLEANER
|
0.0000(lbs); 0.000
|
| 020. |
1735111083
|
[1] |
ASSY ELEMENT A/C
|
2.5740(lbs); 1.170
|
| 030. |
6786054840
|
[1] |
GASKET
|
0.0440(lbs); 0.020
|
| 040. |
3244743620
|
[1] |
ELMENT INNER
|
0.3960(lbs); 0.180
|
| 050. |
3244743570
|
[1] |
ASSY NUT WING
|
0.0220(lbs); 0.010
|
| 060. |
1562194430
|
[2] |
WASHER WITH RUBBER
|
0.0220(lbs); 0.010
|
| 070. |
1574111470
|
[1] |
VALVE
|
0.0220(lbs); 0.010
|
| 080. |
3244743590
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 090. |
1627187450
|
[1] |
LABEL ELEMENT A/C
|
0.0220(lbs); 0.010
|
| 100. |
3253097810
|
[1] |
ASSY BODY A/C
|
5.3020(lbs); 2.410
|
| 110. |
3253097820
|
[1] |
GASKET
|
0.0220(lbs); 0.010
|
