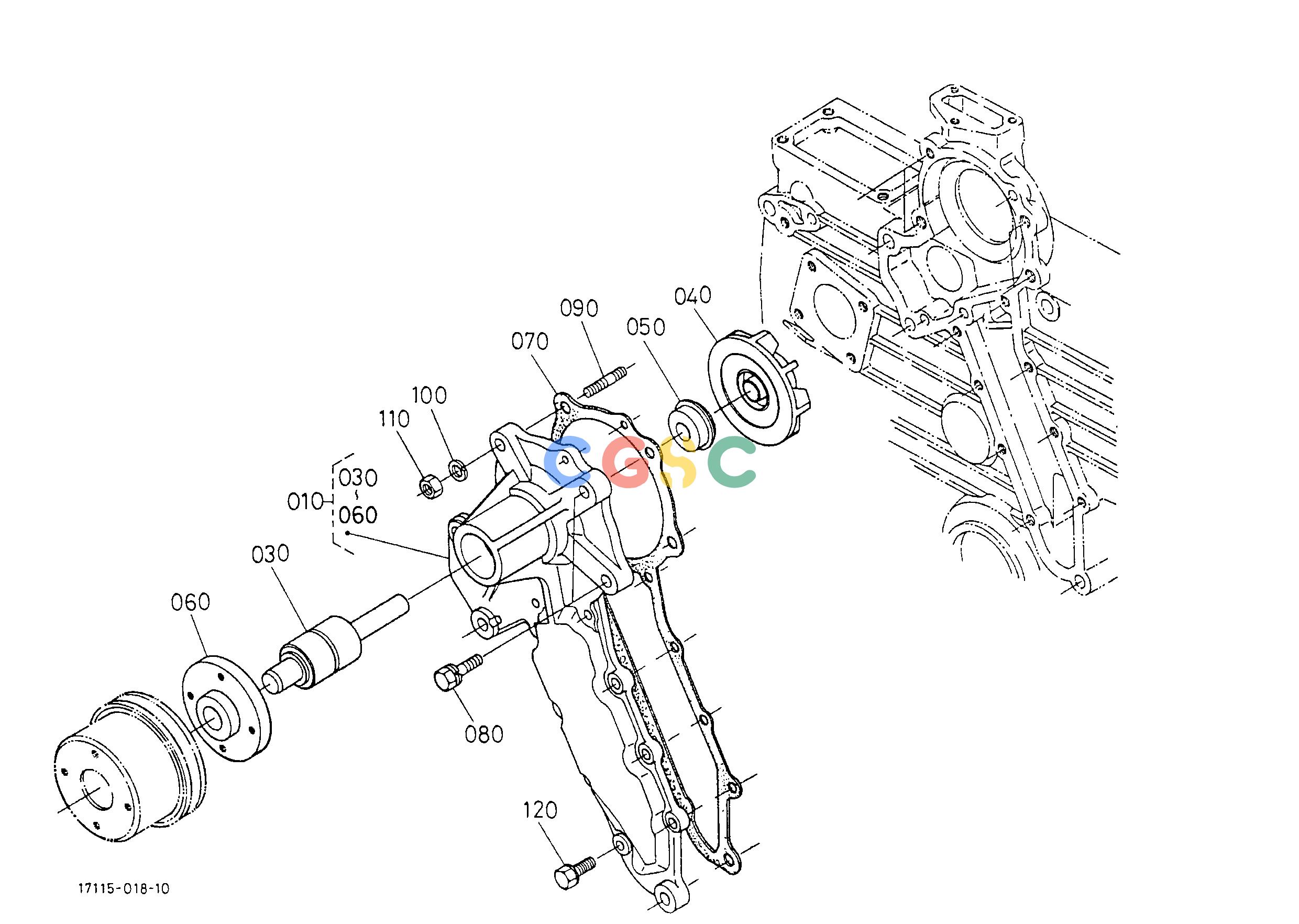

久保田零件查询T01801 WATER PUMP ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
628 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1552173030
|
[1] |
ASSY PUMP WATER
|
0.0000(lbs); 0.000
|
| 010. |
1552173033
|
[1] |
ASSY PUMP WATER
|
2.5850(lbs); 1.175
|
| 030. |
1552173550
|
[1] |
BEARING
|
0.5170(lbs); 0.235
|
| 040. |
1552173510
|
[1] |
IMPELLER WATER PUMP
|
0.4840(lbs); 0.220
|
| 040. |
1666173510
|
[1] |
IMPELLER
|
0.4290(lbs); 0.195
|
| 050. |
1920273050
|
[1] |
ASSY SEAL MECHANICAL
|
0.0440(lbs); 0.020
|
| 050. |
1666173050
|
[1] |
ASSY SEAL MECHANICAL
|
0.0550(lbs); 0.025
|
| 060. |
1552173520
|
[1] |
FLANGE WATER PUMP
|
0.5500(lbs); 0.250
|
| 070. |
1576673430
|
[1] |
GASKET WATER PUMP
|
0.0374(lbs); 0.017
|
| 080. |
0112350828
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 090. |
1552191510
|
[2] |
STUD
|
0.0264(lbs); 0.012
|
| 100. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 110. |
0215650080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 120. |
0102350618
|
[8] |
BOLT
|
0.0132(lbs); 0.006
|
