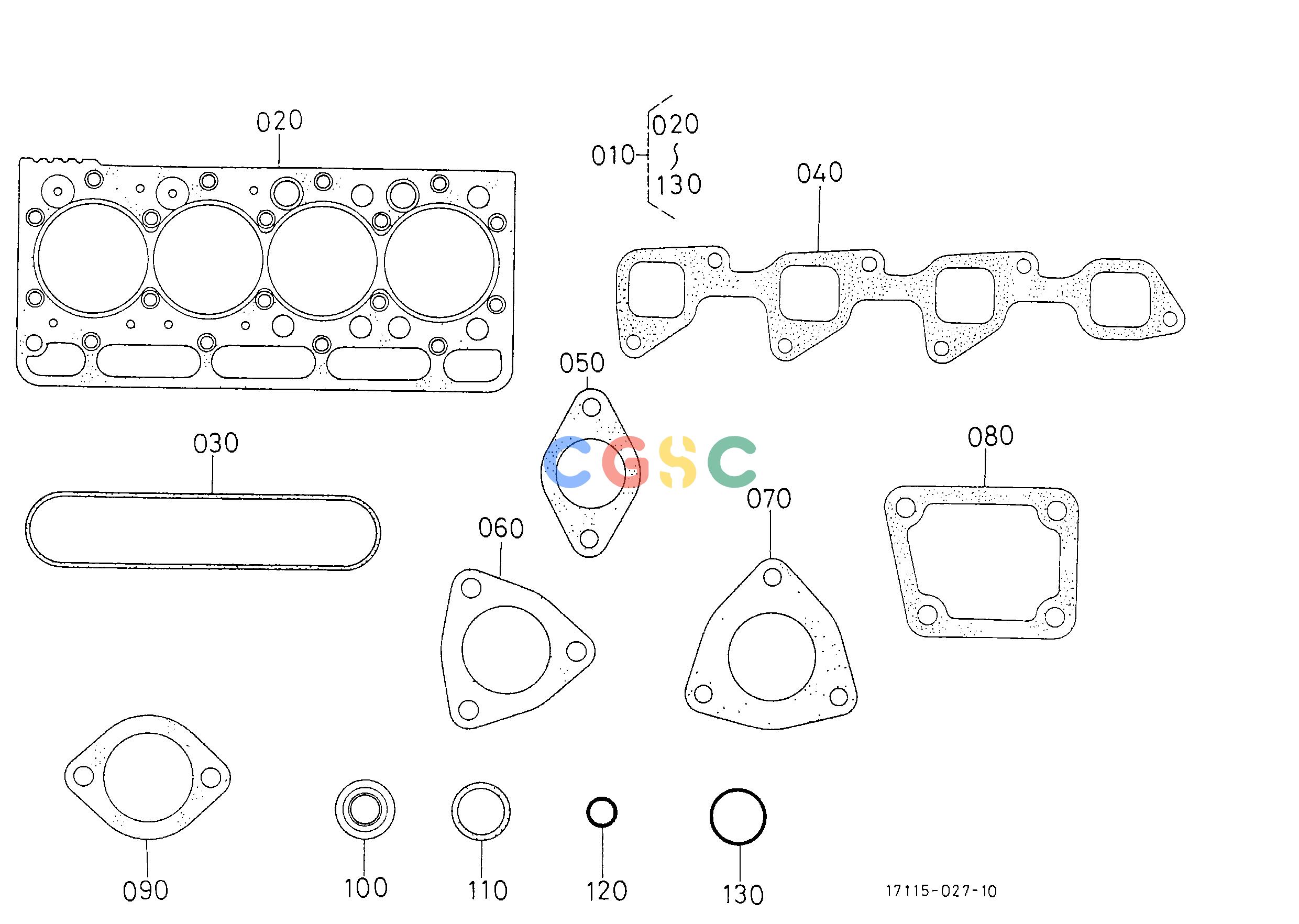

久保田零件查询T02601 UPPER GASKET KIT ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
884 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
0791629346
|
[1] |
KIT GASKET UPPER
|
0.7700(lbs); 0.350
|
| 020. |
1660503310
|
[1] |
GASKET CYLINDER HEAD
|
0.3300(lbs); 0.150
|
| 030. |
1547114520
|
[1] |
GASKET HEAD COVER
|
0.1100(lbs); 0.050
|
| 040. |
1711111820
|
[1] |
GASKET IN-MANIFOLD
|
0.0000(lbs); 0.000
|
| 050. |
1552112350
|
[4] |
GASKET EX-MANIFOLD
|
0.0000(lbs); 0.000
|
| 060. |
1738312370
|
[1] |
GASKET MUFFLER
|
0.0264(lbs); 0.012
|
| 070. |
1738112380
|
[1] |
GASKET MUFFLER
|
0.0000(lbs); 0.000
|
| 080. |
1552172920
|
[1] |
GASKET WATER FLANGE
|
0.0000(lbs); 0.000
|
| 090. |
1532173270
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 100. |
1522113150
|
[8] |
SEAL VALVE STEM
|
0.0022(lbs); 0.001
|
| 110. |
1502133660
|
[4] |
GASKET
|
0.0022(lbs); 0.001
|
| 120. |
1522133700
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
0481150300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
