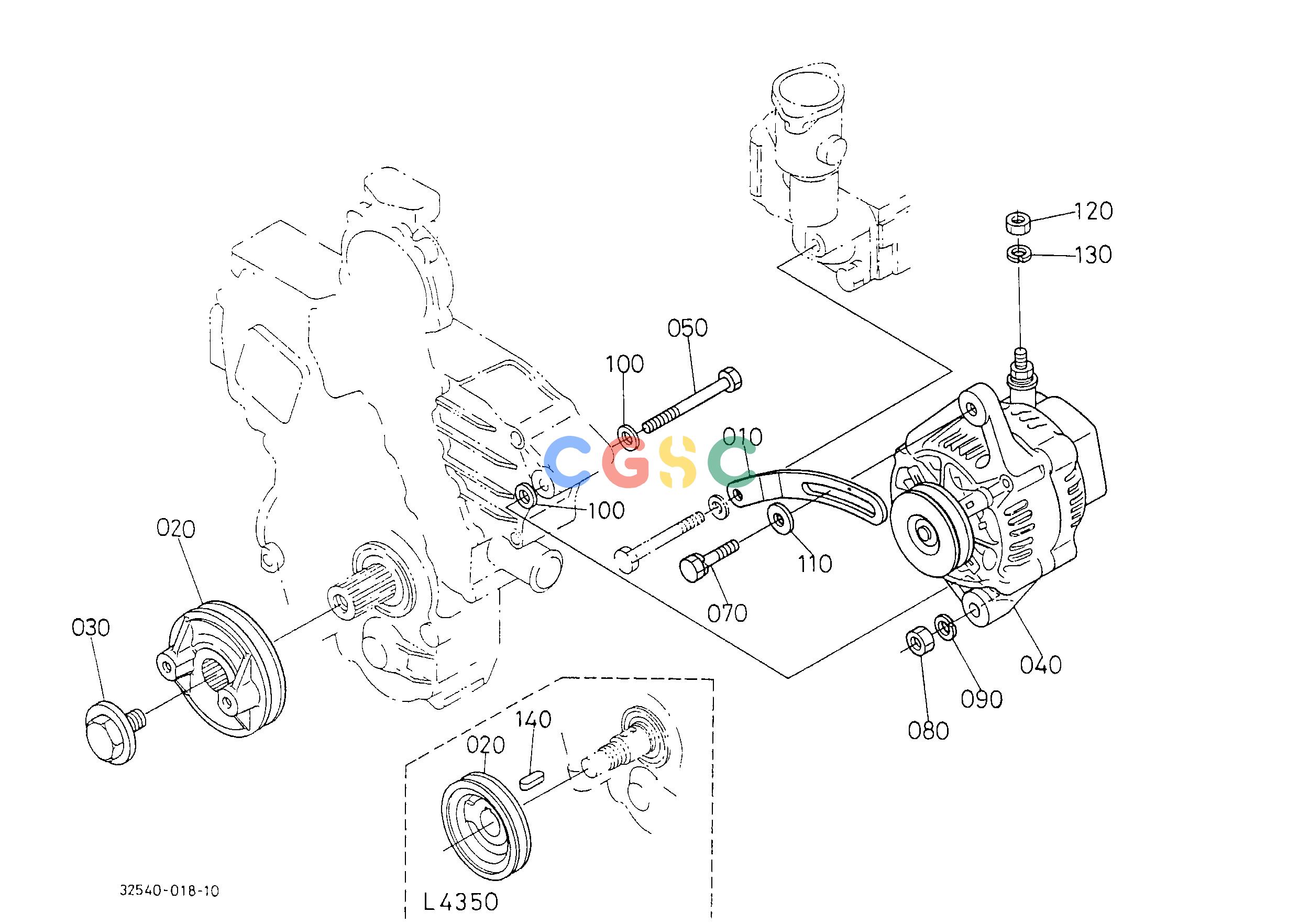

久保田零件查询T03902 DYNAMO [CA] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
635 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1707764420
|
[1] |
STAY DYNAMO
|
0.2200(lbs); 0.100
|
| 020. |
1737174280
|
[1] |
PULLEY FAN DRIVE
|
2.1560(lbs); 0.980
|
| 040. |
1735664010
|
[1] |
ASSY ALTERNATOR
|
6.8200(lbs); 3.100
|
| 050. |
0117351000
|
[1] |
BOLT
|
0.1320(lbs); 0.060
|
| 070. |
0112350830
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 080. |
0217650100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 090. |
0401560100
|
[1] |
WASHER PLAIN
|
0.0330(lbs); 0.015
|
| 100. |
0401150100
|
[2] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 110. |
0401560100
|
[1] |
WASHER PLAIN
|
0.0330(lbs); 0.015
|
| 120. |
0205650060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 130. |
0451260060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 140. |
0571200720
|
[1] |
KEY FEATHER
|
0.0176(lbs); 0.008
|
