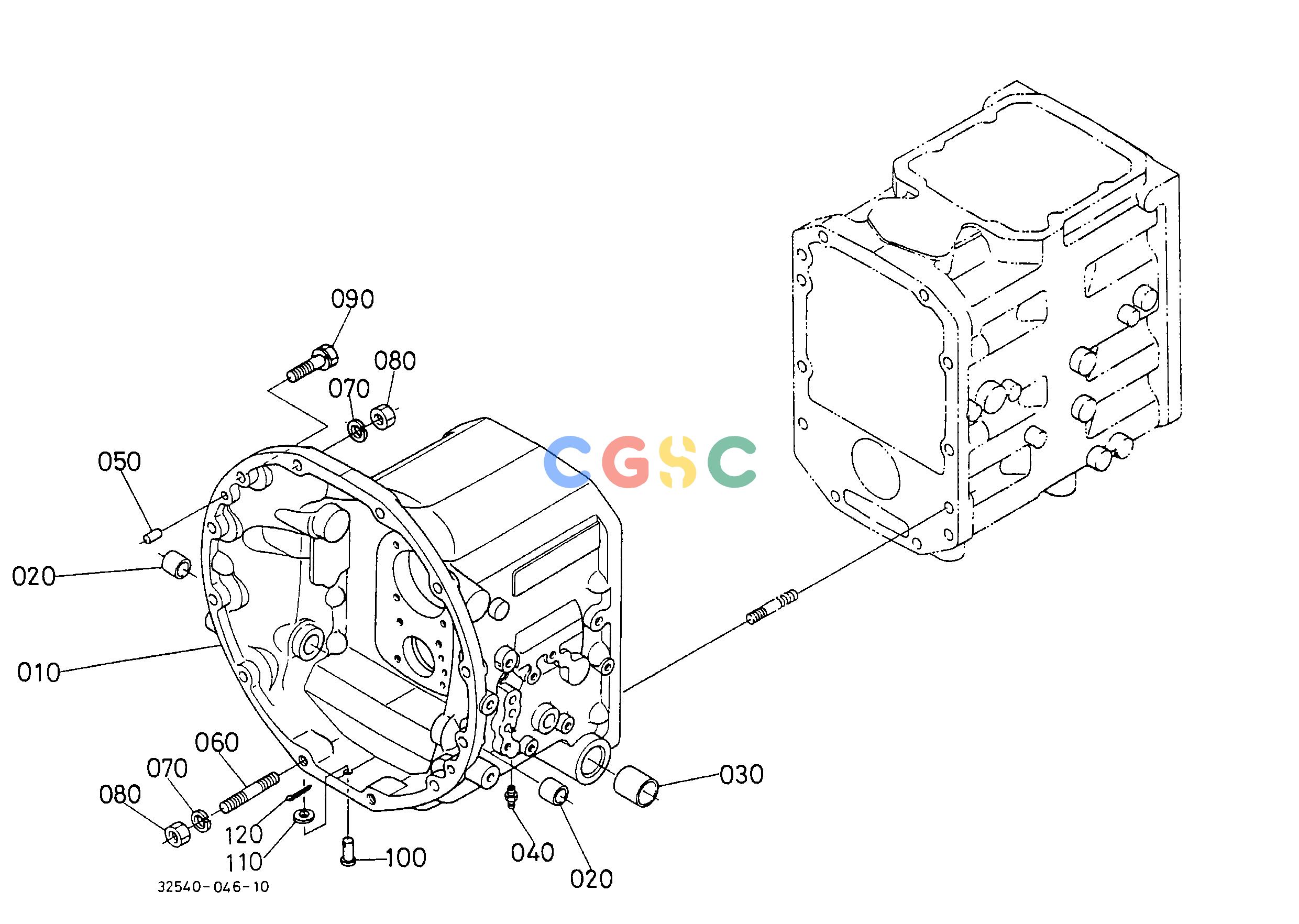

久保田零件查询T05603 MAIN CLUTCH (HDT-W) CLUTCHEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
541 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3255014120
|
[1] |
CASE SHUTTLE SHIFT
|
0.0000(lbs); 0.000
|
| 010. |
3255014104
|
[1] |
CASE SHUTTLE SHIFT
|
84.4800(lbs); 38.400
|
| 020. |
0851102220
|
[2] |
BUSH
|
0.0440(lbs); 0.020
|
| 030. |
3215028440
|
[2] |
BUSH
|
0.0946(lbs); 0.043
|
| 040. |
0661115010
|
[1] |
NIPPLE GREASE
|
0.0220(lbs); 0.010
|
| 050. |
0501201018
|
[2] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 060. |
0157451235
|
[2] |
STUD
|
0.0880(lbs); 0.040
|
| 070. |
0451260120
|
[4] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 080. |
0217650120
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 090. |
0113351245
|
[8] |
BOLT
|
0.1210(lbs); 0.055
|
| 100. |
0551150430
|
[1] |
PIN SPLIT
|
0.0088(lbs); 0.004
|
| 100. |
0512250825
|
[1] |
PIN JOINT
|
0.0242(lbs); 0.011
|
| 110. |
0401350080
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 120. |
0551150220
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
