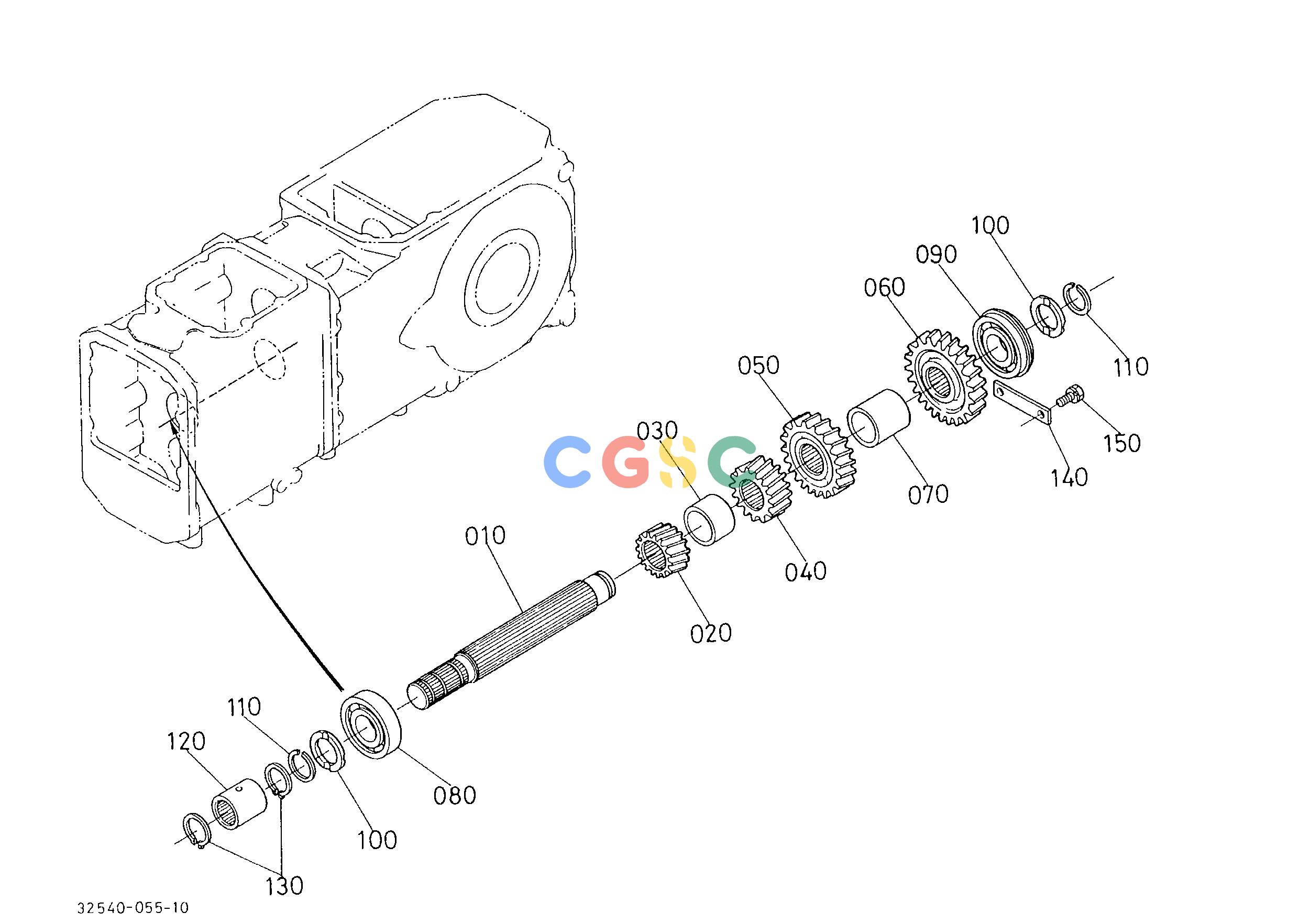

久保田零件查询T06100 MAIN SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
833 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259021512
|
[1] |
SHAFT MAIN
|
4.3340(lbs); 1.970
|
| 020. |
3259021500
|
[1] |
GEAR
|
0.5280(lbs); 0.240
|
| 030. |
3259025180
|
[1] |
COLLAR
|
0.5280(lbs); 0.240
|
| 040. |
3259021520
|
[1] |
GEAR
|
0.8800(lbs); 0.400
|
| 050. |
3259021530
|
[1] |
GEAR
|
1.4960(lbs); 0.680
|
| 060. |
3259021540
|
[1] |
GEAR
|
1.7600(lbs); 0.800
|
| 070. |
3253021550
|
[1] |
COLLAR
|
0.7260(lbs); 0.330
|
| 080. |
3845025350
|
[1] |
BEARING BALL
|
0.7590(lbs); 0.345
|
| 090. |
0815106306
|
[1] |
BEARING BALL
|
0.7700(lbs); 0.350
|
| 100. |
3534021760
|
[2] |
COLLAR THRUST
|
0.0220(lbs); 0.010
|
| 110. |
3843025540
|
[2] |
CIRCLIP EXTERNAL
|
0.0088(lbs); 0.004
|
| 120. |
3253020690
|
[1] |
COUPLING
|
0.4510(lbs); 0.205
|
| 130. |
0461200300
|
[2] |
CIRCLIP EXTERNAL
|
0.0066(lbs); 0.003
|
| 140. |
3843025530
|
[1] |
RETAINER BEARING
|
0.1100(lbs); 0.050
|
| 150. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
