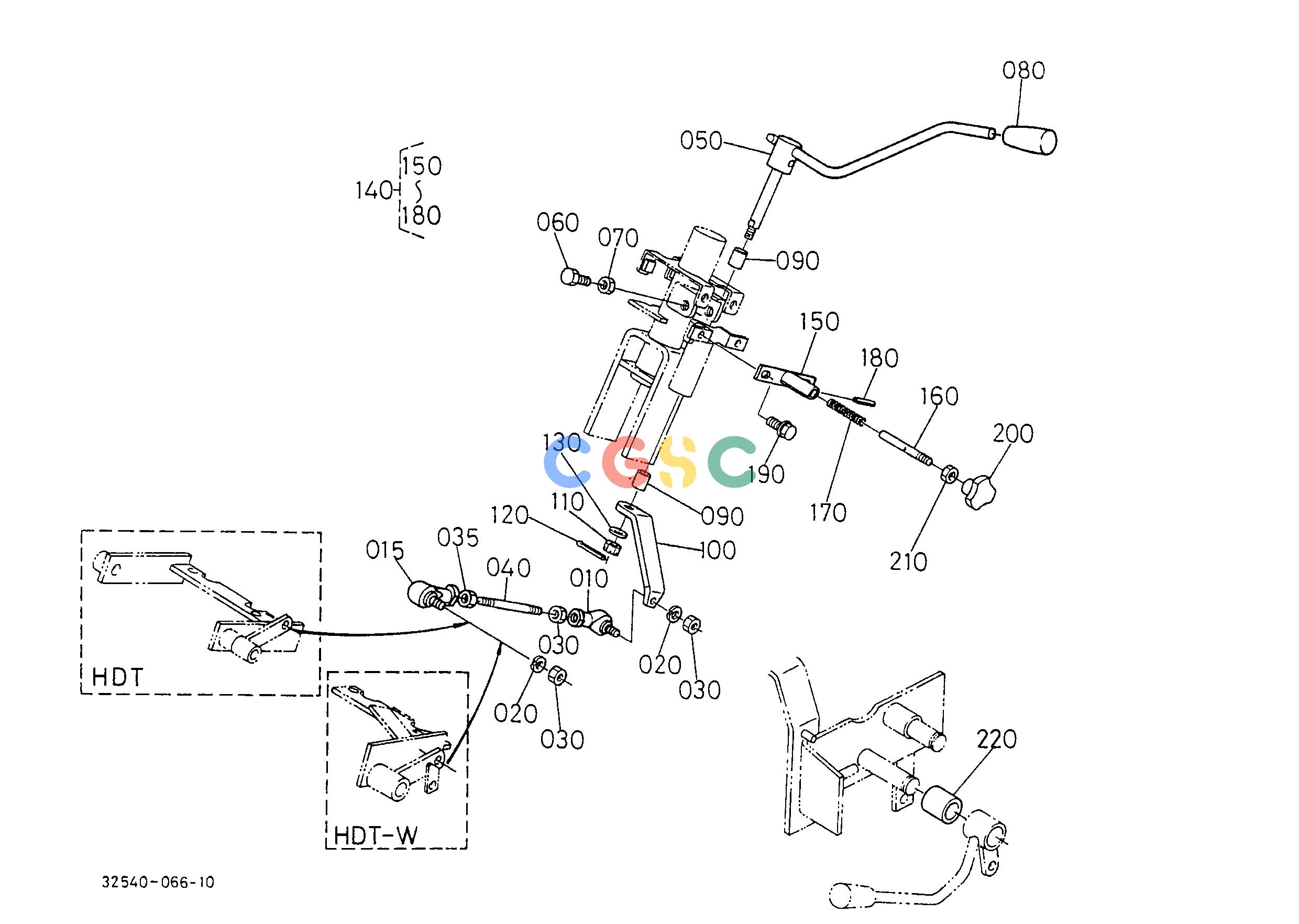

久保田零件查询T07102 SHUTTLE SHIFT LEVER (HDT/HDT-W) MAIN SP-CHANGE LEVEREPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
815 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253041510
|
[1] |
BALL LINK
|
0.0814(lbs); 0.037
|
| 015. |
3259046380
|
[1] |
END ROD
|
0.0528(lbs); 0.024
|
| 020. |
0451250050
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 030. |
0205450050
|
[3] |
NUT
|
0.0044(lbs); 0.002
|
| 035. |
3259046370
|
[1] |
NUT
|
0.0022(lbs); 0.001
|
| 040. |
3253046360
|
[1] |
ROD
|
0.0220(lbs); 0.010
|
| 040. |
3253046362
|
[1] |
ROD
|
0.0308(lbs); 0.014
|
| 050. |
3253046414
|
[1] |
LEVER SHUTTLE
|
0.7920(lbs); 0.360
|
| 060. |
0117351025
|
[2] |
BOLT
|
0.0462(lbs); 0.021
|
| 070. |
0217650100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 080. |
5561131460
|
[1] |
GRIP LEVER
|
0.0660(lbs); 0.030
|
| 090. |
0851101215
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 100. |
3253946460
|
[1] |
LEVER
|
0.2420(lbs); 0.110
|
| 110. |
0231250080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 120. |
0551150218
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 130. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 140. |
3253046450
|
[1] |
ASSY GUIDE LOCK
|
0.4180(lbs); 0.190
|
| 150. |
3253046470
|
[1] |
GUIDE LOCK
|
0.1320(lbs); 0.060
|
| 160. |
3253046480
|
[1] |
PIN LOCK
|
0.0440(lbs); 0.020
|
| 170. |
3253046490
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 180. |
0541100210
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 190. |
0175450820
|
[2] |
BOLT FLANGE
|
0.0330(lbs); 0.015
|
| 200. |
0282000060
|
[1] |
NUT KNOB
|
0.0264(lbs); 0.012
|
| 210. |
0201260060
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 220. |
3253020770
|
[1] |
COLLAR
|
0.1540(lbs); 0.070
|
