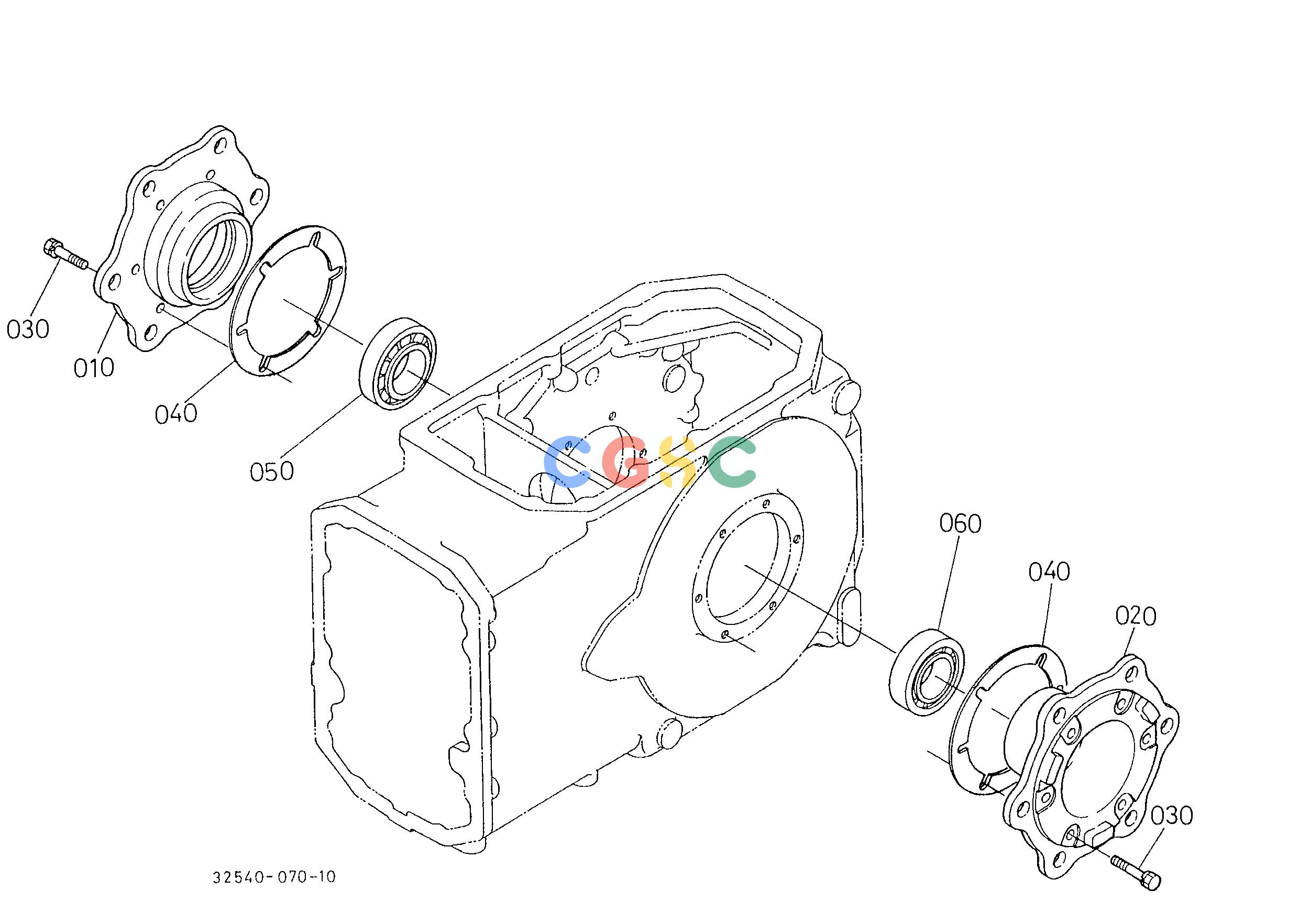

久保田零件查询T07400 DIFFERENTIAL BEARING SUPPORT REAR AXLE/REAR WHEELEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
617 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259026550
|
[1] |
SUPPORT DIFF.BRG.RH
|
7.2600(lbs); 3.300
|
| 020. |
3259026560
|
[1] |
SUPPORT DIFF.BRG.LH
|
10.1200(lbs); 4.600
|
| 030. |
0113351035
|
[12] |
BOLT
|
0.0660(lbs); 0.030
|
| 040. |
3259026750
|
[4] |
SHIM
|
0.0418(lbs); 0.019
|
| 040. |
3259026760
|
[4] |
SHIM
|
0.0418(lbs); 0.019
|
| 040. |
3259026770
|
[2] |
SHIM
|
0.0418(lbs); 0.019
|
| 050. |
3259026590
|
[1] |
BEARING TAPER-ROLLER
|
1.4740(lbs); 0.670
|
| 060. |
3259026580
|
[1] |
BEARING TAPER-ROLLER
|
1.1000(lbs); 0.500
|
