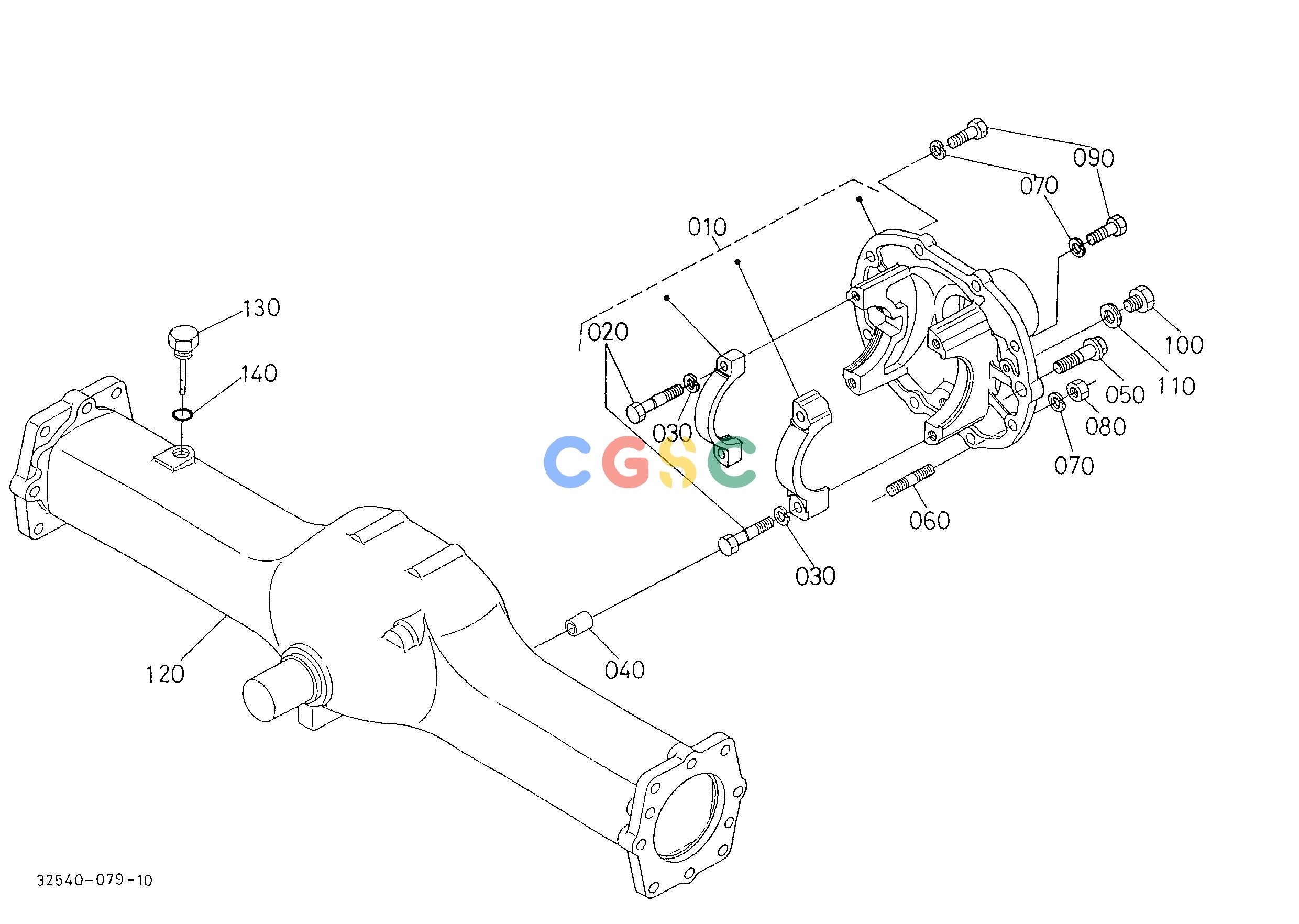

久保田零件查询T08200 FRONT DIFFERENTIAL CASE FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259043010
|
[1] |
ASSY CASE DIFF.GEAR
|
19.8000(lbs); 9.000
|
| 020. |
3258043130
|
[4] |
BOLT REAMER
|
0.0660(lbs); 0.030
|
| 030. |
0451260120
|
[4] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 040. |
3628043170
|
[2] |
PIPE KNOCK
|
0.0484(lbs); 0.022
|
| 050. |
3258043180
|
[2] |
BOLT UBS
|
0.1320(lbs); 0.060
|
| 060. |
3523043500
|
[6] |
STUD
|
0.0990(lbs); 0.045
|
| 070. |
0451260120
|
[8] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 080. |
3258043160
|
[6] |
NUT
|
0.0308(lbs); 0.014
|
| 090. |
3674042220
|
[2] |
BOLT
|
0.1100(lbs); 0.050
|
| 100. |
0633135016
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 110. |
0471701600
|
[1] |
WASHER WITH RUBBER
|
0.0066(lbs); 0.003
|
| 120. |
3258043412
|
[1] |
BOX FRONT AXLE
|
0.0000(lbs); 0.000
|
| 120. |
3258043416
|
[1] |
BOX FRONT AXLE
|
64.6800(lbs); 29.400
|
| 130. |
3135343122
|
[1] |
GAUGE OIL
|
0.0330(lbs); 0.015
|
| 140. |
0481100180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
