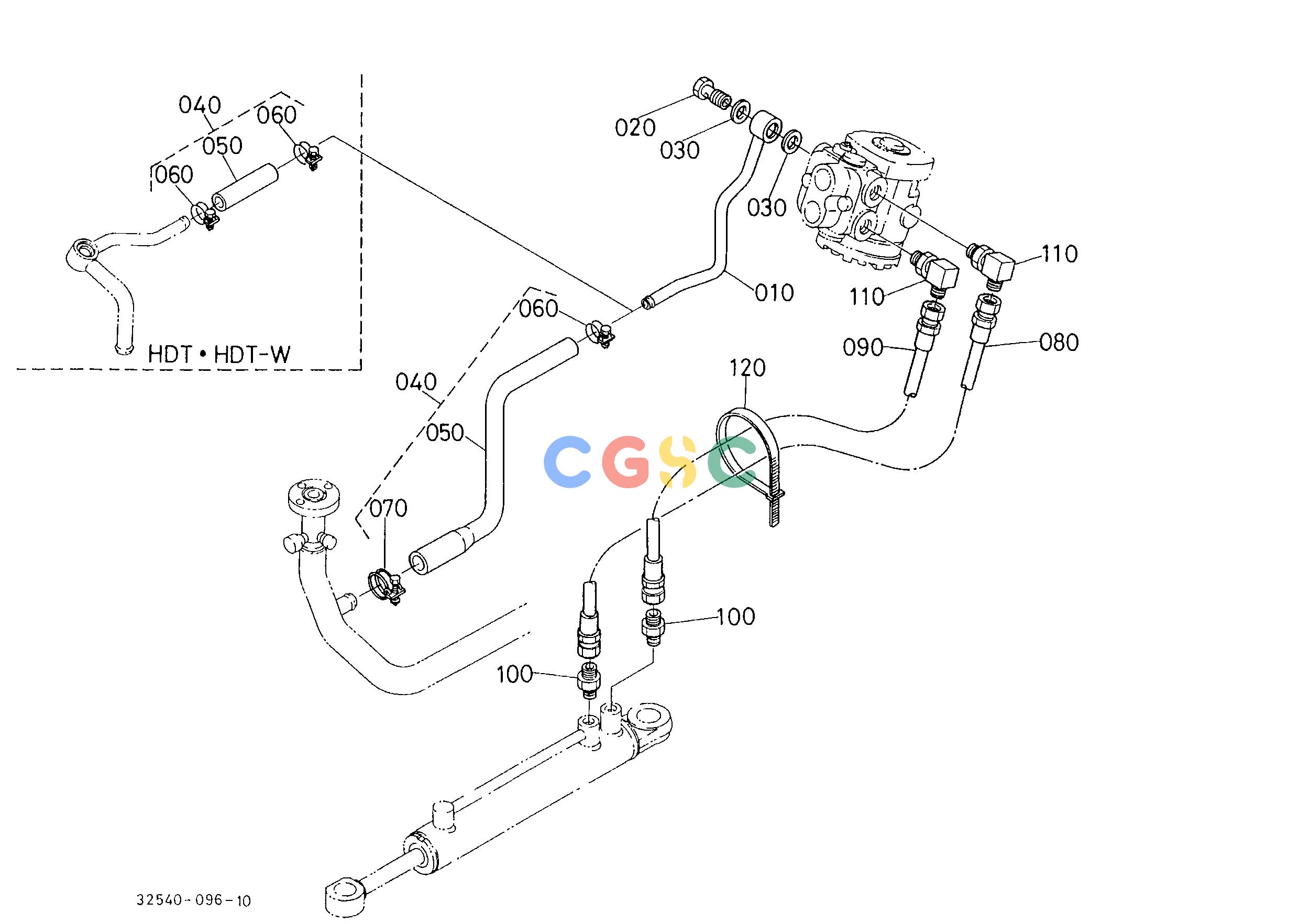

久保田零件查询T09801 POWER STEERING PIPE STEERINGEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
663 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3255038580
|
[1] |
PIPE RETURN
|
0.3520(lbs); 0.160
|
| 020. |
6659136250
|
[1] |
JOINT
|
0.1760(lbs); 0.080
|
| 030. |
6711137180
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
| 040. |
3254038600
|
[1] |
ASSY TUBE
|
0.2420(lbs); 0.110
|
| 040. |
3254038650
|
[1] |
ASSY TUBE
|
0.0660(lbs); 0.030
|
| 050. |
3254038590
|
[1] |
TUBE RETURN
|
0.2200(lbs); 0.100
|
| 050. |
3254038660
|
[1] |
TUBE RETURN
|
0.0440(lbs); 0.020
|
| 060. |
0931888180
|
[2] |
CLAMP HOSE
|
0.0220(lbs); 0.010
|
| 070. |
0931888200
|
[1] |
CLAMP HOSE
|
0.0088(lbs); 0.004
|
| 080. |
3254038860
|
[1] |
HOSE POWER STRG.LH
|
0.4180(lbs); 0.190
|
| 090. |
3254038870
|
[1] |
HOSE POWER STRG.RH
|
0.3960(lbs); 0.180
|
| 100. |
6822168770
|
[2] |
ADAPTER
|
0.0000(lbs); 0.000
|
| 110. |
7661136440
|
[2] |
ADAPTER
|
0.2200(lbs); 0.100
|
| 120. |
5358164150
|
[2] |
BAND CORD
|
0.0044(lbs); 0.002
|
