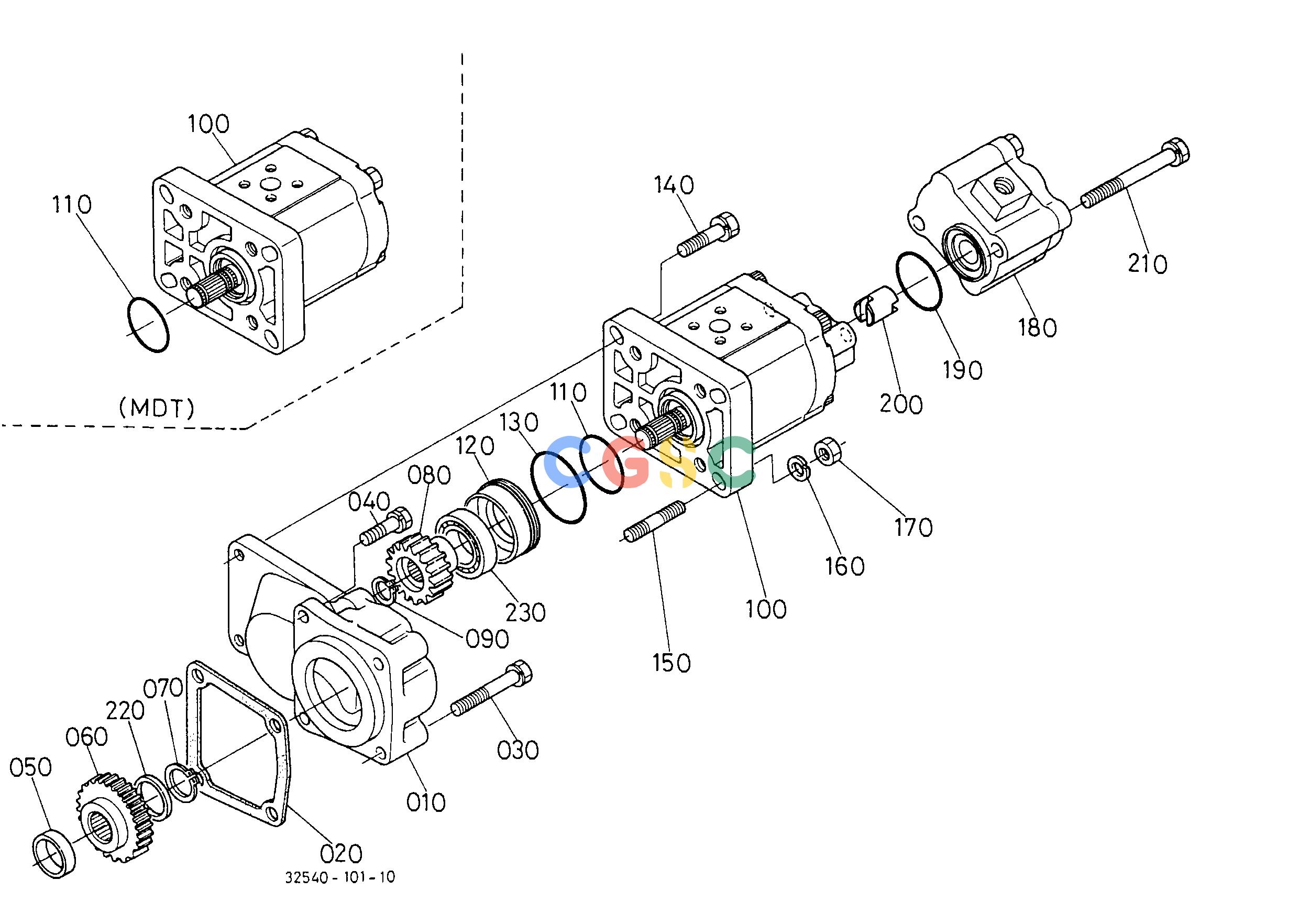

久保田零件查询T10300 HYDRAULIC PUMP HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3623082240
|
[1] |
BASE PUMP
|
3.5860(lbs); 1.630
|
| 010. |
3255010610
|
[1] |
BASE PUMP
|
3.5200(lbs); 1.600
|
| 020. |
3539437860
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 030. |
0112350850
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 040. |
0112350825
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 050. |
3620082260
|
[1] |
COLLAR
|
0.0770(lbs); 0.035
|
| 050. |
3255010650
|
[1] |
COLLAR
|
0.0440(lbs); 0.020
|
| 060. |
3623082270
|
[1] |
GEAR
|
0.9240(lbs); 0.420
|
| 070. |
0461200250
|
[1] |
CIRCLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 080. |
3623082280
|
[1] |
GEAR
|
0.3520(lbs); 0.160
|
| 080. |
3255010630
|
[1] |
GEAR
|
0.0000(lbs); 0.000
|
| 080. |
3255010632
|
[1] |
GEAR
|
0.3740(lbs); 0.170
|
| 090. |
0461200170
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 100. |
3374082202
|
[1] |
PUMP HYDRAULIC
|
6.6000(lbs); 3.000
|
| 100. |
3255076100
|
[1] |
PUMP HYDRAULIC
|
6.6000(lbs); 3.000
|
| 110. |
0481106400
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
3620082250
|
[1] |
RING
|
0.1584(lbs); 0.072
|
| 120. |
3255010600
|
[1] |
SLEEVE
|
0.2640(lbs); 0.120
|
| 130. |
0481110500
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
0481110550
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
0112350835
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 150. |
0151360830
|
[2] |
STUD
|
0.0286(lbs); 0.013
|
| 160. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 170. |
0215650080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 180. |
3673027510
|
[1] |
ASSY PUMP HYDRAULIC
|
1.8700(lbs); 0.850
|
| 180. |
3255076200
|
[1] |
ASSY PUMP HYDRAULIC
|
1.8810(lbs); 0.855
|
| 190. |
0481110380
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 200. |
3653027523
|
[1] |
J0INT
|
0.0550(lbs); 0.025
|
| 210. |
0112350880
|
[2] |
BOLT
|
0.0660(lbs); 0.030
|
| 220. |
3255010590
|
[1] |
COLLAR
|
0.0110(lbs); 0.005
|
| 230. |
1547126740
|
[1] |
BEARING
|
0.1760(lbs); 0.080
|
