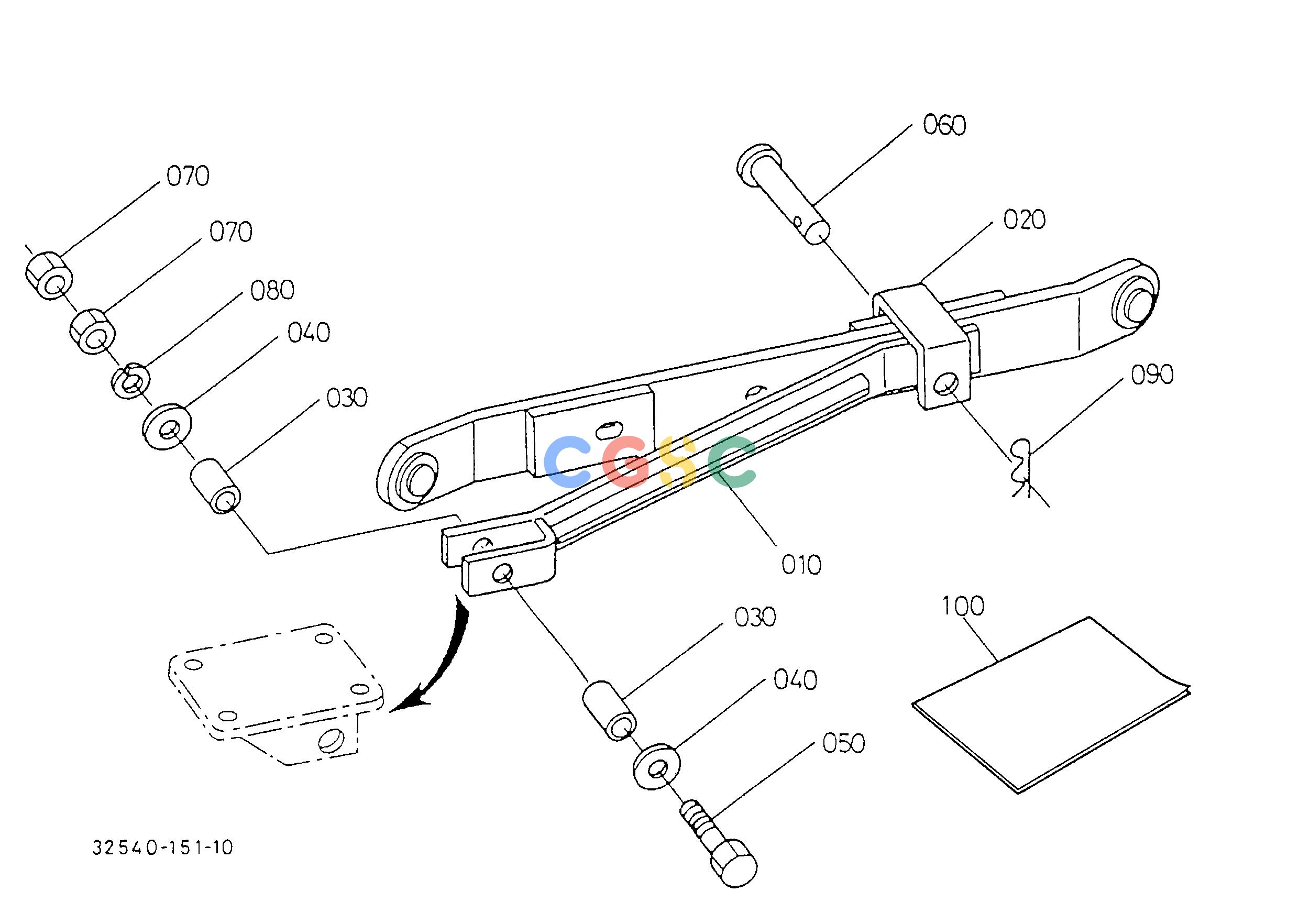

久保田零件查询T13400 STARBILIZER [OPTION] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259093110
|
[2] |
BAR STABILIZER
|
10.5600(lbs); 4.800
|
| 020. |
3259093120
|
[2] |
SUPPORT STABILIZER
|
1.1000(lbs); 0.500
|
| 030. |
3259093130
|
[4] |
SPACER
|
0.0660(lbs); 0.030
|
| 040. |
0401360120
|
[4] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 050. |
0117651275
|
[2] |
BOLT
|
0.1760(lbs); 0.080
|
| 060. |
3253037693
|
[2] |
PIN LIFT ARM
|
0.5060(lbs); 0.230
|
| 070. |
0217650120
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 080. |
0451260120
|
[2] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 090. |
6659235190
|
[2] |
PIN SET
|
0.0308(lbs); 0.014
|
| 100. |
3259093140
|
[1] |
MANUAL ASSEMBLING
|
0.0000(lbs); 0.000
|
