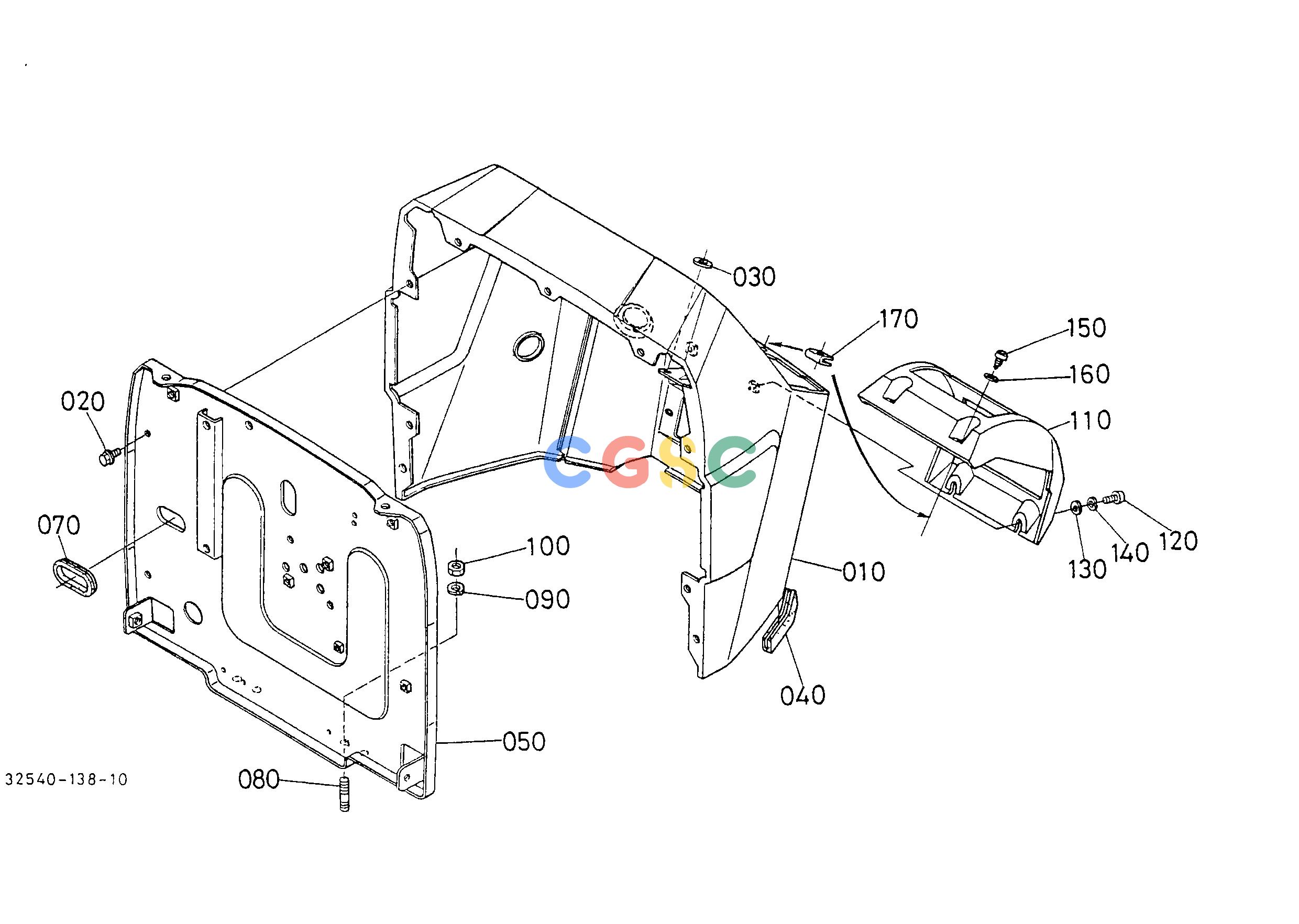

久保田零件查询T14100 HOOD (BONNET) REAR HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
770 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253931110
|
[1] |
COMP.PANEL
|
7.2600(lbs); 3.300
|
| 010. |
3259031110
|
[1] |
COMP.PANEL
|
7.4800(lbs); 3.400
|
| 010. |
3259031100
|
[1] |
COMP.PANEL
|
7.4800(lbs); 3.400
|
| 020. |
0175450812
|
[9] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 030. |
3415033350
|
[2] |
WASHER
|
0.0220(lbs); 0.010
|
| 040. |
6630143550
|
[1] |
COVER PROTECTOR
|
0.0066(lbs); 0.003
|
| 050. |
3259031160
|
[1] |
COMP.PLATE SHUTTER
|
10.1200(lbs); 4.600
|
| 070. |
3824035260
|
[1] |
CUSHION
|
0.0220(lbs); 0.010
|
| 080. |
0151751020
|
[2] |
STUD
|
0.0418(lbs); 0.019
|
| 090. |
0451260100
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 100. |
0217650100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 110. |
3253031140
|
[1] |
COVER POST LOWER
|
0.4400(lbs); 0.200
|
| 120. |
3253031120
|
[2] |
SCREW PAN-HEAD
|
0.0220(lbs); 0.010
|
| 130. |
3253031130
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 140. |
6602155280
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 150. |
3253031150
|
[2] |
SCREW TAPPING
|
0.0220(lbs); 0.010
|
| 160. |
3253018390
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 170. |
3135193540
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
