久保田零件查询T14601 STEP RH HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
512 次

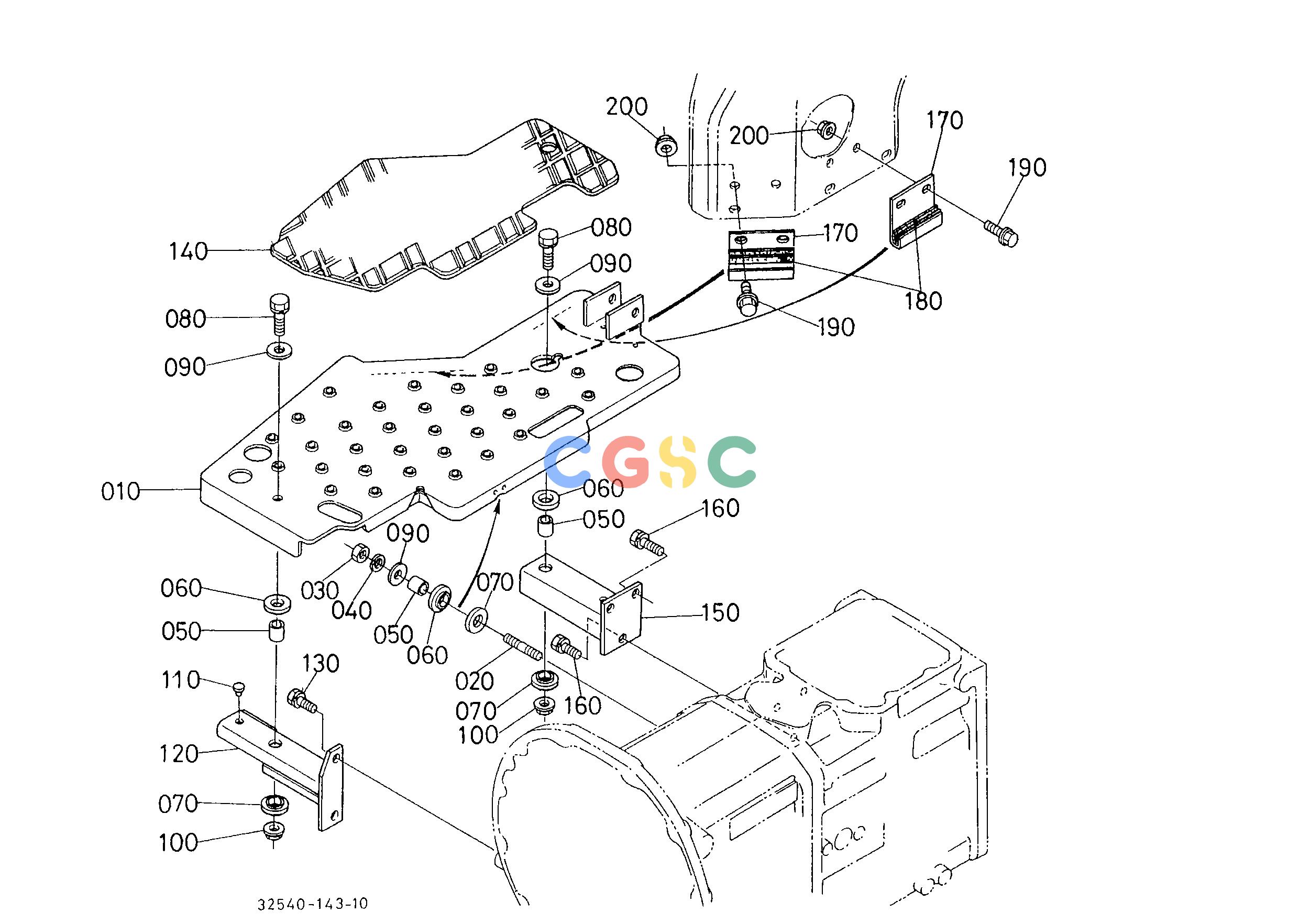

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3254029910
|
[1] |
COMP.STEP RH
|
7.8980(lbs); 3.590
|
| 020. |
0151751035
|
[1] |
STUD
|
0.0616(lbs); 0.028
|
| 030. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 040. |
0451260100
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 050. |
6225253220
|
[3] |
COLLAR
|
0.0176(lbs); 0.008
|
| 060. |
3254029770
|
[3] |
RUBBER
|
0.0330(lbs); 0.015
|
| 070. |
3824018640
|
[3] |
CUSHION
|
0.0220(lbs); 0.010
|
| 080. |
0113351040
|
[2] |
BOLT
|
0.0660(lbs); 0.030
|
| 090. |
0401560100
|
[3] |
WASHER PLAIN
|
0.0330(lbs); 0.015
|
| 100. |
3253029930
|
[2] |
NUT
|
0.0528(lbs); 0.024
|
| 110. |
3824029870
|
[1] |
CUSHION
|
0.0088(lbs); 0.004
|
| 120. |
3251929950
|
[1] |
SUPPORT STEP RH
|
2.0240(lbs); 0.920
|
| 130. |
0113351020
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 140. |
3251029823
|
[1] |
SEAT STEP RH
|
1.0340(lbs); 0.470
|
| 150. |
3254029960
|
[1] |
SUPPORT STEP RH
|
1.3200(lbs); 0.600
|
| 160. |
0113351025
|
[3] |
BOLT
|
0.0506(lbs); 0.023
|
| 170. |
3254029890
|
[2] |
SUPPORT STEP
|
0.2200(lbs); 0.100
|
| 180. |
3254029760
|
[2] |
RUBBER
|
0.0000(lbs); 0.000
|
| 180. |
3254029762
|
[2] |
RUBBER
|
0.0374(lbs); 0.017
|
| 190. |
0175450816
|
[4] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 200. |
0275150080
|
[4] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
