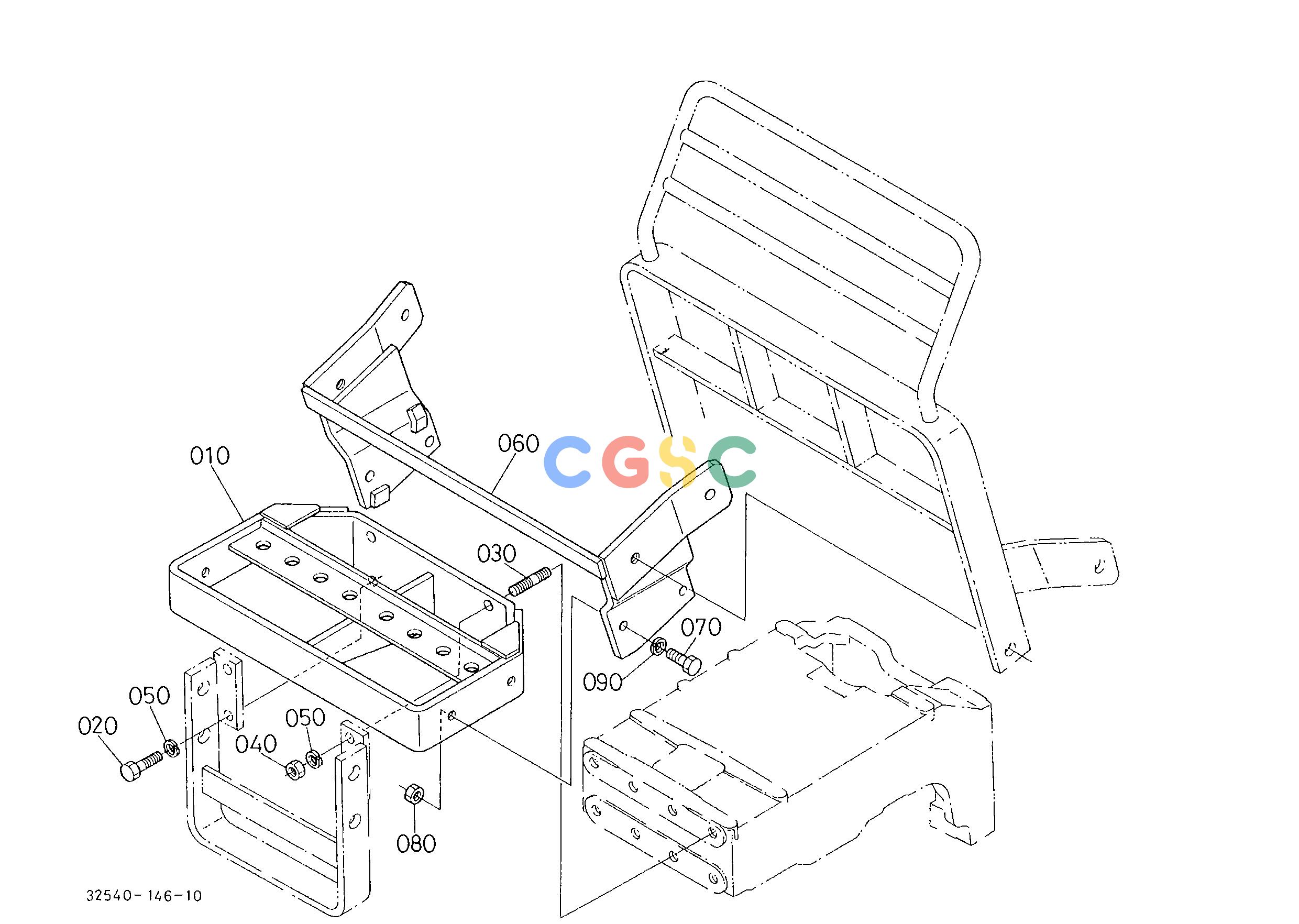

久保田零件查询T14901 BUMPER AND FRONT GUARD STAY [OPTION] HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
181 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3251913870
|
[1] |
BUMPER
|
41.5800(lbs); 18.900
|
| 020. |
0117351445
|
[2] |
BOLT
|
0.1474(lbs); 0.067
|
| 030. |
0151751445
|
[2] |
STUD
|
0.1650(lbs); 0.075
|
| 040. |
0217450140
|
[2] |
NUT
|
0.0308(lbs); 0.014
|
| 050. |
0451260140
|
[4] |
WASHER SPRING
|
0.0176(lbs); 0.008
|
| 060. |
3253996710
|
[1] |
STAY
|
0.0000(lbs); 0.000
|
| 070. |
0117351240
|
[4] |
BOLT
|
0.0990(lbs); 0.045
|
| 080. |
0217650120
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 090. |
0451260120
|
[4] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
