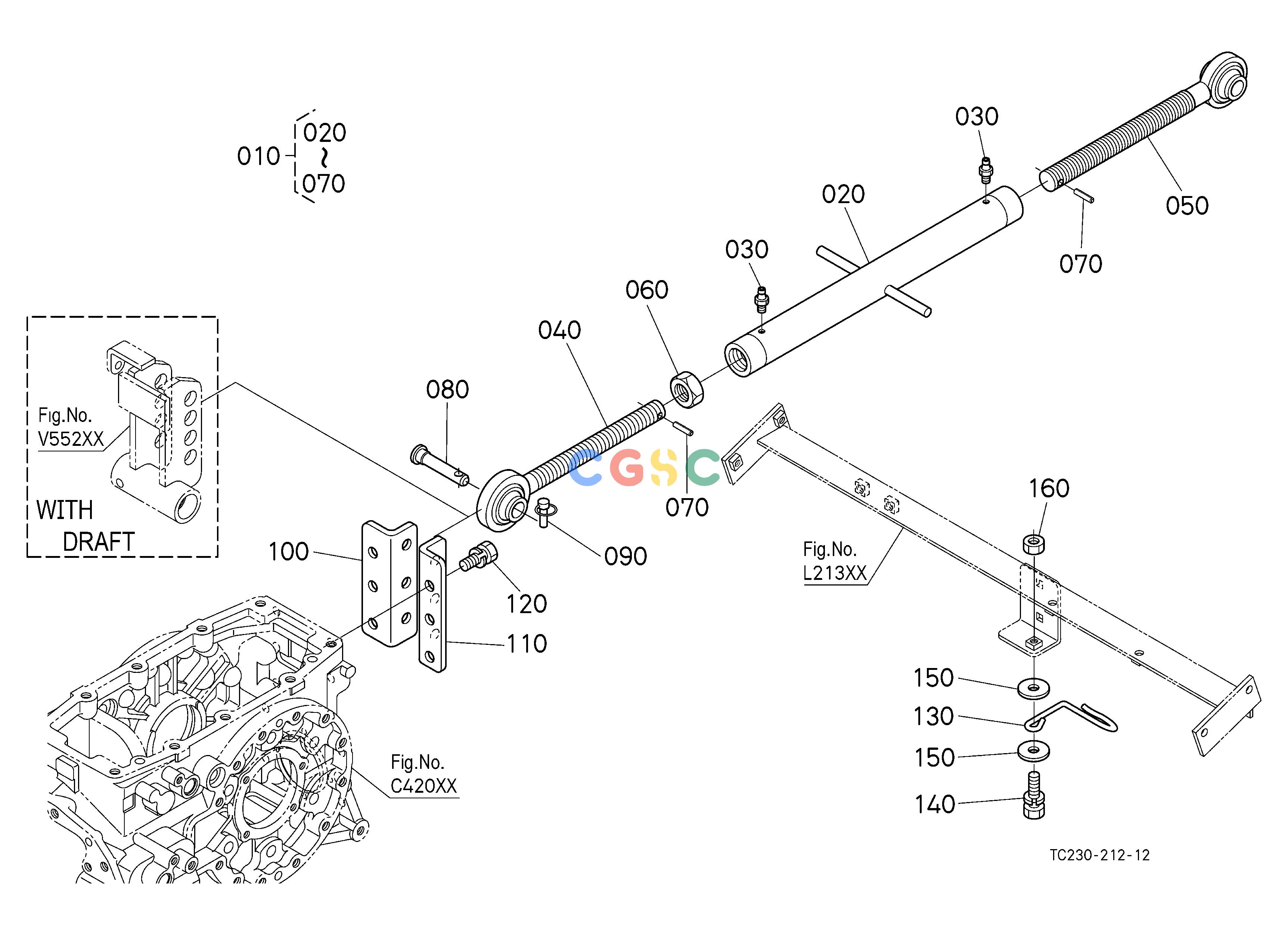

久保田零件查询J10502 TOP LINK 3-POINT LINKAGE/DRAWBAR/HITCHEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
924 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD05071100
|
[1] |
ASSY LINK,TOP
|
7.9200(lbs); 3.600
|
| 010. |
3815071100
|
[1] |
LINK,TOP,ASSY
|
7.8320(lbs); 3.560
|
| 020. |
TD05071110
|
[1] |
LINK,TOP
|
2.7060(lbs); 1.230
|
| 020. |
3243071110
|
[1] |
LINK,TOP
|
3.0800(lbs); 1.400
|
| 030. |
6721142940
|
[2] |
NIPPLE,GREASE
|
0.0022(lbs); 0.001
|
| 040. |
3534071210
|
[1] |
JOINT(LINK,TOP)
|
2.3320(lbs); 1.060
|
| 050. |
3534071220
|
[1] |
JOINT(LINK,TOP)
|
2.3320(lbs); 1.060
|
| 060. |
3224471180
|
[1] |
NUT,TOP LINK
|
0.1254(lbs); 0.057
|
| 070. |
0541100430
|
[2] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 080. |
3115071360
|
[2] |
PIN,CLEVIS
|
0.3652(lbs); 0.166
|
| 090. |
3415037640
|
[2] |
PIN,SET
|
0.1320(lbs); 0.060
|
| 100. |
9957122140
|
[1] |
HOLDER(RH LINK,TOP)
|
2.1120(lbs); 0.960
|
| 110. |
9957122150
|
[1] |
HOLDER(LH LINK,TOP)
|
2.1780(lbs); 0.990
|
| 120. |
0113351230
|
[6] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 130. |
TC23029420
|
[1] |
HOLDER
|
0.0880(lbs); 0.040
|
| 130. |
TC22029420
|
[1] |
HOLDER
|
0.0880(lbs); 0.040
|
| 140. |
0112350830
|
[1] |
BOLT,SEMS
|
0.0330(lbs); 0.015
|
| 140. |
0211450080
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 150. |
0401550080
|
[2] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 160. |
0211250080
|
[1] |
HEX.NUT
|
0.0066(lbs); 0.003
|
